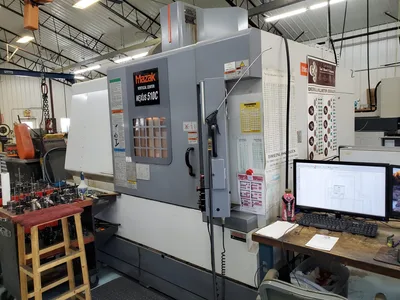

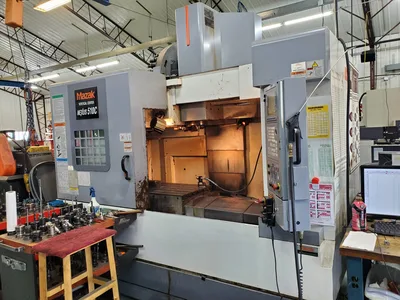

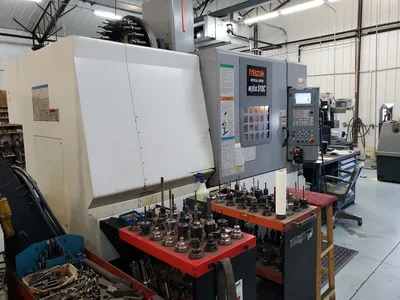

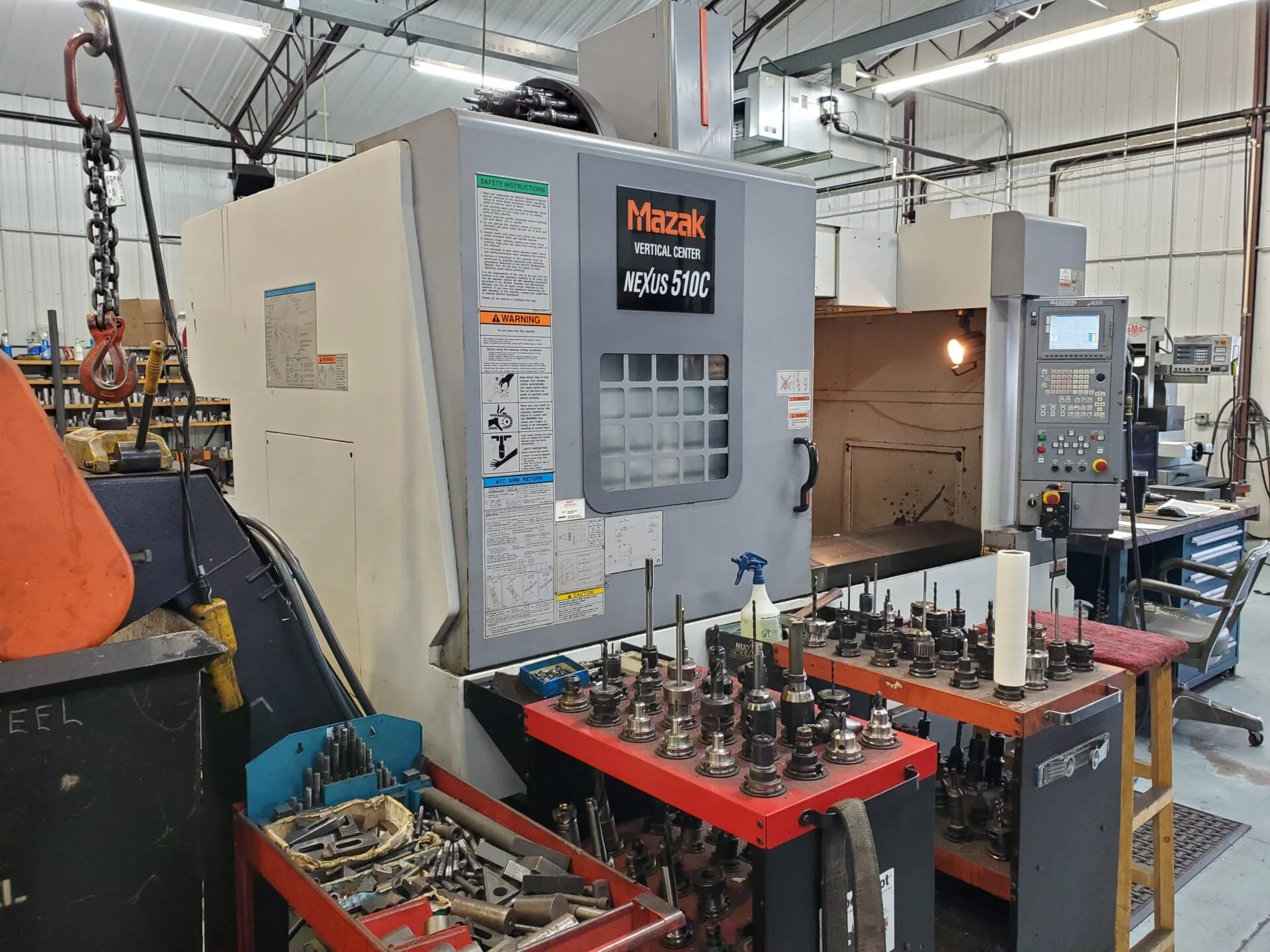

2003 MAZAK NEXUS VCN-510C
Overview
Description
Mazatrol Fusion 640M, 41.20.20", 12000 RPM, Cat 40, 25 HP, 30 Tools, TSC, Touch Probe, ATLM, Fourth Axis Interface, Chip
Specifications
X-Axis: 41.34"
Y-Axis: 20.08"
Z-Axis: 20.08"

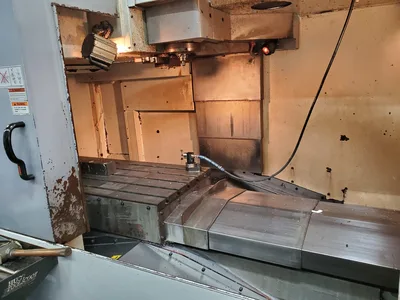

Table Size: 51.18" x 21.65"
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 25 / 20 / 15 / 10 HP AC
Tools: 30
Table Load Capacity: 2640 lbs.
Rapid Traverse Rates: 1417 IPM
Max Tool Diameter: 3.15" / 4.92"
Max Tool Length: 13.78"
Max Tool Weight: 17.64 lbs.
Machine Dimensions (L x W x H): 113.8" x 111.6" x 111.9"
Machine Weight: 15,180 lbs.
Axis Acceleration: 0.5G
Spindle Acceleration: 2.04 Seconds
Spindle Nose to Table Top: 5.9" - 25.98"
Tool Change Time (T - T / C - C): 1.3 / 2.9 Seconds
Equipped With

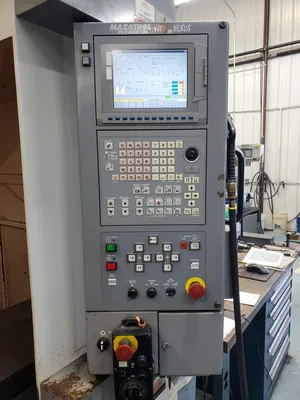

Mazatrol Fusion 640M Nexus CNC Control
10.4" Color LCD
PC/MCIA Interface
Conversational Programming
Through Spindle Coolant (213 psi)
Fourth Axis Interface
Renishaw Touch Probe
Automatic Tool Length Measurement
Chip Conveyor (Left Side Exit)
30 Position Side Mount Tool Changer
EIA/ISO Input Function
Spiral Interpolation
EIA 3D Compensation
Rotation & Geometric Scaling
Synchronized Tapping
Mazatrol Helical Interpolation
Mazatrol Coordinate Shift
Mazatrol Planetary Tapping
