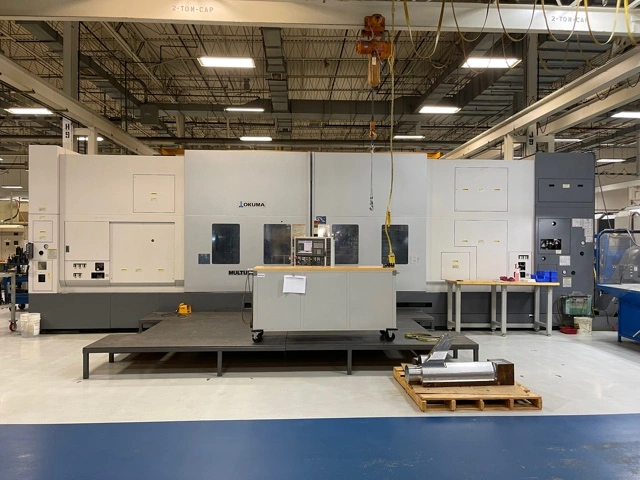

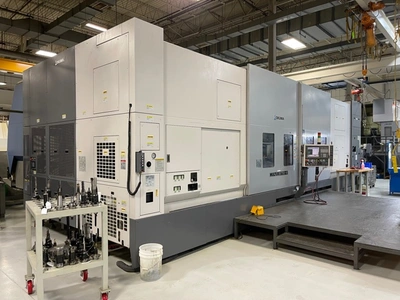

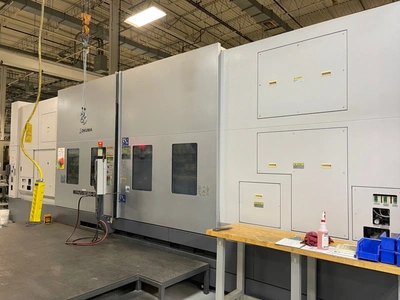

2010 OKUMA MULTUS B750-W/4000

OSP-P200L, 24" Chuck, 10.8" Bore, 41" Max Dia, 50 HP, 80 Tools, Capto C8, 2000 RPM, Y & B-Axis, Steady Rest, Long Boring Bar Attachment

Chuck Size: 24"
Max Swing Over Saddle: 41.34"
Spindle Motor: 50 / 40 HP AC
Spindle Speed: 2000 RPM
Spindle Nose: A2-20
Tools: 80
Milling Spindle Motor: 50 / 40 HP
Milling Spindle Speed: 5000 RPM
Milling Spindle Torque: 372 ft. lbs.
Rapid Traverse Rates: 1575 IPM
X-Axis: 42.52"
Z-Axis: 165.94"
Y-Axis: + / - 12.99"
C-Axis Index (L & R): .001 Degrees
B-Axis Travel: -30 to 210 Degrees
Machine Weight: 95,000 LBS
Distance Between Spindles: 178.9"
Max Tool Diameter: 5.31" / 11.81"
Max Tool Length: 23.6"
Max Tool Weight: 66 lbs.
Max Turning Diameter: 41.34"
Spindle Taper: Capto C8
W-Axis: 133.66"

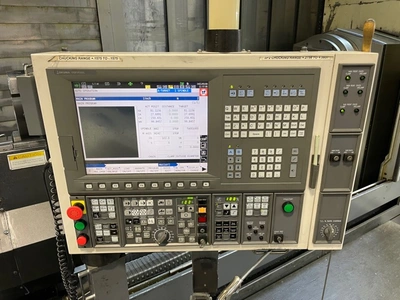

OSP-P200L CNC Control
15" Color TFT

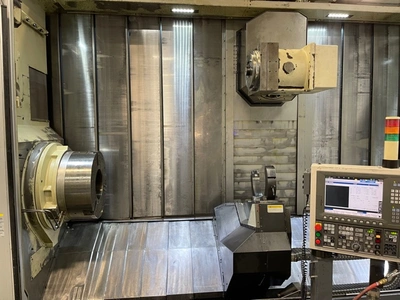

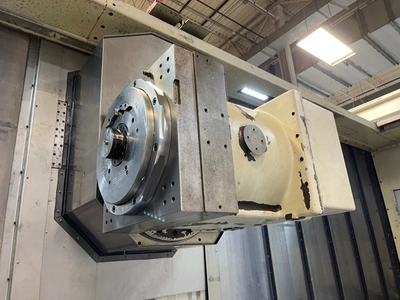

B-Axis Upper Tool Spindle Full 5-Axis Contouring

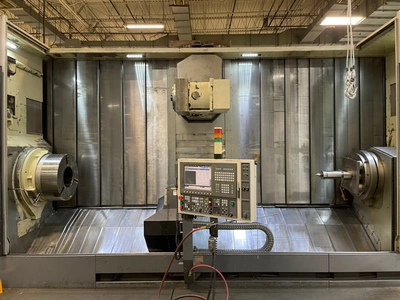

Twin Opposed Spindles
Schunk Rota TB 600-275 LH Self-Contained Pneumatic 3-Jaw Chuck

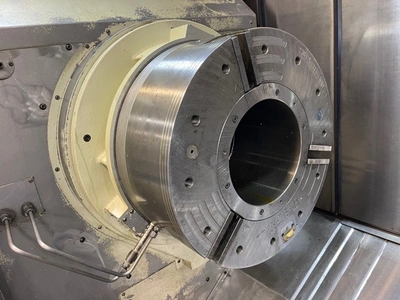

24" Hydraulic Chuck (Right Spindle)
80 Tool Magazine (Capto C8)
Through Spindle Coolant (MP Systems 1000 psi)

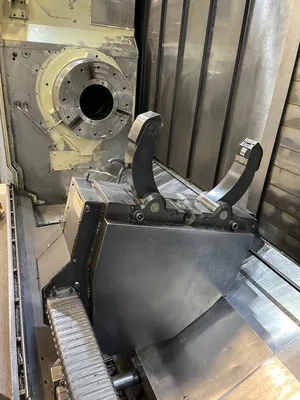

SWM Autoblock Programmable Hydraulic Steady Rest
Enomoto Chip Conveyor (Side Exit)
(3) Long Boring Bar Attachment
Actual Long Boring Bar with Replaceable Capto C8 Heads
Multi-Tap Transformer
Three Color Tower Light
Spindle Chiller Unit
Remote Jog Handle
Hi-G Control
500 Sets of Tool Offsets
Tape Data In/Out
Plane Conversion
Profile Generation
B-Axis Interpolation
Rigid Tapping
Helical Cutting
Slant Cutting
Home Position
Spindle Fluctuate
NC Torque Limiter
GM Code Macros
Center Computation
Touch Setter
Touch Sensor
Y-Axis Gauging
Optical Sensor
Pitch Error Compensation
Tool Life Management
Tool Wear Compensation
Inch/Metric Switchable
Cycle Time Calculation
Cycle Time Renew
Tool Center Control
Super Nurbs
Super Hi-NC
Thermal Compensation L2
Servo Link NC
Lap 4
Nose Radius 2B
User Task 2
Expanded Auto Chamfering
Collision Avoidance System
Programming Help
3D Animation
NC Work Counter
NC Work Monitor
Cycle Time Check
Load Monitor
Mac Man
DNC-T1 & T-3
Spindle Orientation
M-Axis Orient
Custom API
Machining Mode
Axis Active Stop
Override Special
Load Monitor
B-Axis .001 Degrees
B-Axis Interpolation
Auto Door
Manufacture Date July 2010

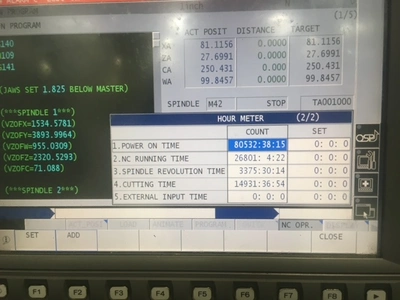

80,532 Power On Time
26,801 NC Running Time
3375 Spindle Revolution Time
14,931 Cutting Time
