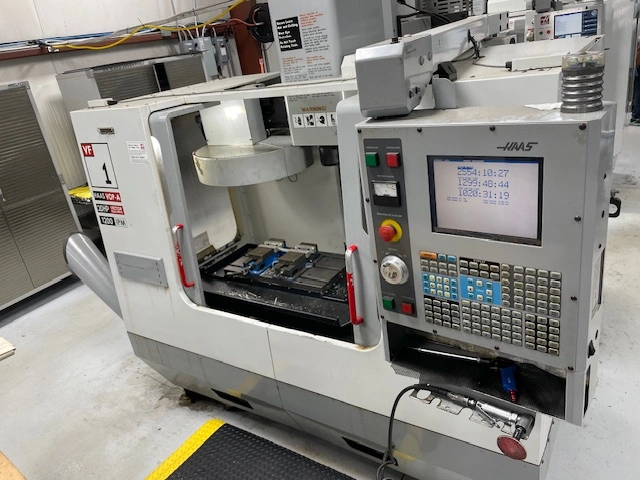

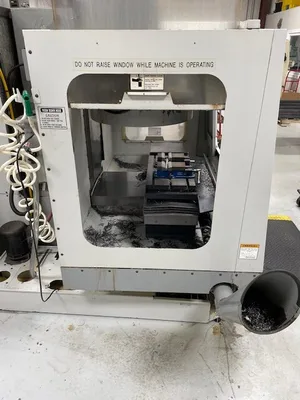

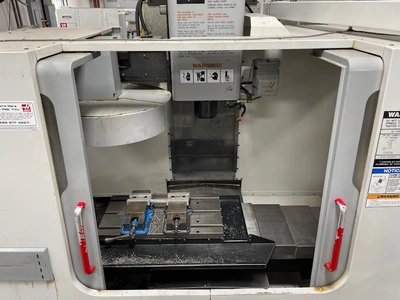

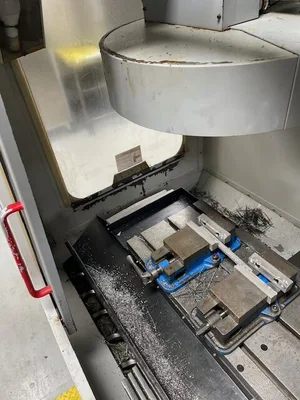

2004 HAAS VF-1D

20.16.20", 7500 RPM, Cat 40, 20HP, 20 Tools, Fourth Axis Interface, Programmable Coolant, Chip Auger, Quick Code, Rigid Tapping

X-Axis: 20"
Y-Axis: 16"
Z-Axis: 20"
Table Size: 26" x 14"
Spindle Speed: 0 - 7500 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP
Tools: 20
Table Load Capacity: 3000 lbs.
Rapid Traverse Rates: 710 IPM
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs.
Machine Dimensions (L x W x H): 88" x 92.8" x 104.5"
Machine Weight: 7100 lbs.
Spindle Nose to Table Top: 4" - 24"
Spindle Torque: 75 ft. lbs.
Tool Change Time (T - T / C - C): 4.2 / 4.5 Seconds

HAAS CNC Control
12" Monochrome CRT
Floppy Disc Drive
Fourth Axis Interface
Programmable Coolant Nozzles
Chip Auger
Quick Code Programming
Rigid Tapping
Spindle Orientation
1 MB Memory
Green Operating Condition Light

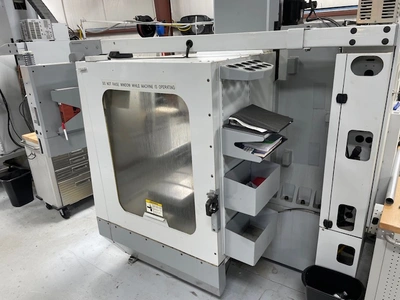

Tool Shelves
Manufacture Date July 2004

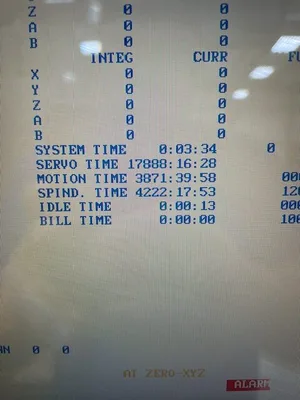

17,888 Servo Time
3871 Motion Time
4222 Spindle Time
