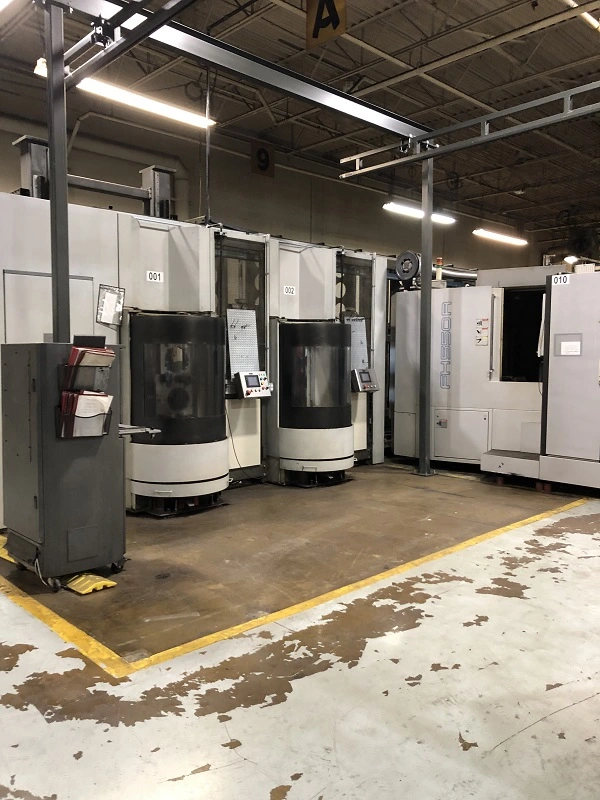

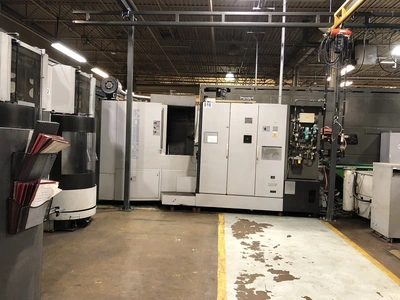

2004 TOYODA FH-550R FMS 3 Machines 34 Pallets
Overview
Description
Fanuc 30iMA, (34) 21.7" Plt, 29.31.33", 15000 RPM, 230 Tools, 40 HP, Cat 50, 3 Machines, 34 Pallets, 2 Load Stations, Fourth Axis, TSC 1000 psi, Probes, Chip
Specifications
Pallet Change Time: 9 Seconds
Pallet Load Capacity: 1750 lbs.
Pallet Size: 21.6" (2)
X-Axis: 29.52"
Y-Axis: 31.5"
Z-Axis: 23.62"
Z-Axis: 33.5"
Pallet Index: .001 Degree
Spindle Speed: 15,000 RPM
Spindle Taper: Cat 50
Spindle Motor: 40 / 30 HP
Spindle Nose to Table Center: 5.9" - 29.5"
Tools: 230
Rapid Traverse Rates (X, Y & Z): 2362 IPM
Tool Change Time (T - T): 1.7 Seconds
Max Tool Diameter: 4.7"
Max Tool Length: 15.7"
Max Tool Weight: 59.4 lbs.
Machine Weight: 30,000
Equipped With
FANUC 30iMA CNC CONTROL
14" Color CRT
(3) Machines
(34) Pallets on Two Levels
(2) Load/Unload Stations
Kupa FPA550 Rail Guided Pallet Storage System
(3) 230 Tool Magazines
(3) Fourth Axis Rotary Tables
15000 RPM Spindle Speed
Level II Cell Controller with DMC Function
Dynamic Scheduling with Simulation
Auxiliary Display Panels at Both Load Stations
Toyoda OP20T Operation Supporter Software Suite
Air Blow Tool Holder
Overhead Shower Coolant
Rigid Tapping
Helical Interpolation
Optional Block Skip (2-5 sets)
48 Sets Workpiece Coordinate
Ethernet Connection
Mayfran Consep 2000 Microfine Chip Conveyor
10” diameter VisiPort Rotary Wiper on Operator Window
Pop-Up Automatic Tool Length Measurement
Renishaw MP700 Optical Probe
Through Spindle Coolant (Chip Blaster JV8-1000 psi)
Toyoda Amp & Coil Conductive Touch-Setting Probe
Micron Air Filtration System
Dual Ballscrews in X, Y and Z Axes
(20) Tombstones Included
Heavy Duty Box Way Construction
