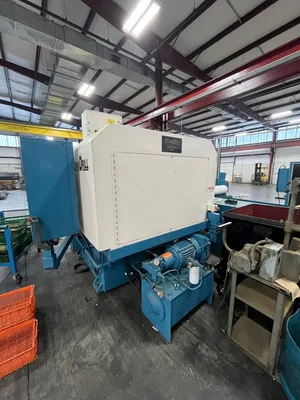

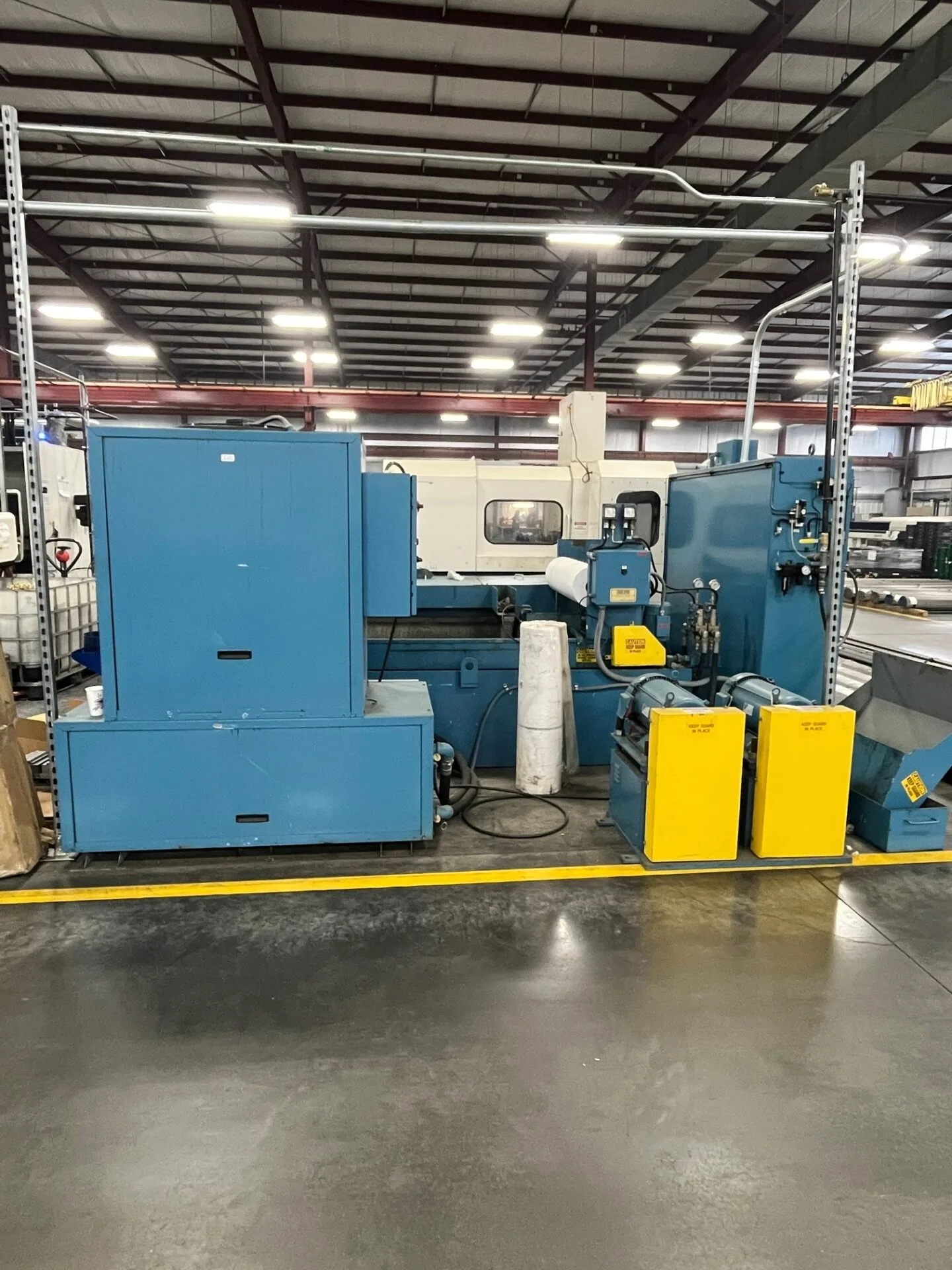

2017 TECHNIDRILL SYSTEMS 3A-.500-4-12-18 CNC GUN DRILL

HEIDENHAIN TNC 320, (4) Spindles, .500" x 18", 3-Axis, Knee Type, 18" Stroke, 12,000 RPM, Spindle Bore 1" x 2.75" Deep

Feed Rate (X, Y, and Z): .5" to 24" Per Minute Plus Rapid
Max Drill Diameter: .500"
Number of Spindles: 4
Spindle Bore: 1" x 2.75" Deep
Spindle Motor: (4) 3 HP
Spindle Speed: 3,000-12,000
Work Table Capacity: 3000 LBS
Work Table Dimensions: 50" x 18"
X-Axis Table Travel: 12"
Y-Axis Knee Vertical Travel: 12"
Z-Axis Drill Stroke: 18"

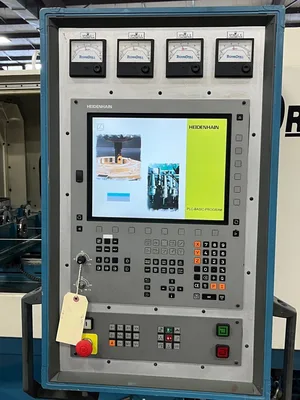

HEIDENHAIN TNC 320 CNC CONTROL
15" Color TFT
10MB Storage
Combination of Circular and Linear Interpolation
Reversal Error Compensation
Absolute or Incremental Programming
Inch or Metric Position Data
Tool Table for 254 Drills
Sub Programming and Program Repeats
Edit or Create Programs During Operation
Canned Drilling Cycles
Coordinate Datum Shift
Coordinate Rotation
Coordinate Mirror Image
Coordinate Scaling Factor
Multiple Datum Tables
Graphic Simulation
Chip Box Pneumatic Flying Bushing Stroke .750"
High Pressure Coolant System (1,000 PSI)
Hand Held Manual Pulse Generator
X and Y-Axis Positioning by AC Servo Driven Feed Screws and Linear Scales
Z-Axis Positioning by Servo and Ball-Screw with Encoder
