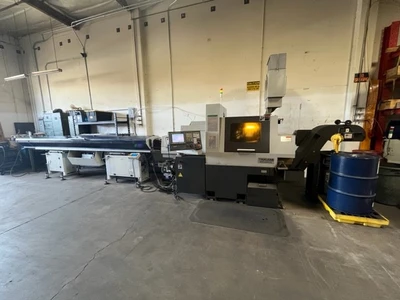

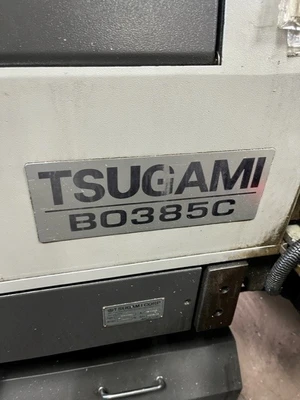

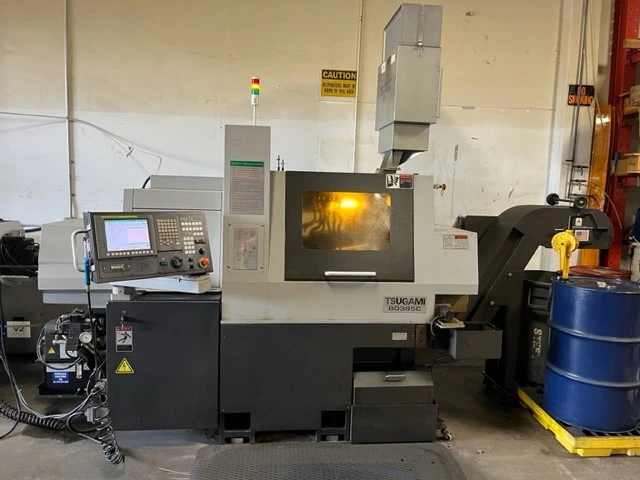

2018 TSUGAMI B0385C

Fanuc 0i-TD, 1.5" Bar, 6000 RPM, 15 HP, 7 Turn/ 4 + 3 Live/ 5 Front End/ 4 Back, Live Tooling, Sub Spindle, Patriot 338 Barfeed, Chip Conveyor, Firetrace

Max Diameter Bar Capacity: 38mm (1.5")
Max Machining Length: 9.84"
Sub Spindle Motor: 7.5 / 5 HP
Sub Spindle Speed: 7000 RPM
C-Axis: .001 Degrees
Machine Weight: 10,000
Backworking Tools: 4
Front End - Working Tools: 5
Live Tool Positions Main Spindle: 7
Live Tool Speed: 200 - 5000 RPM
Main Spindle Motor: 15 / 10 HP
Main Spindle Speed: 6000 RPM
Turning Tools: 7

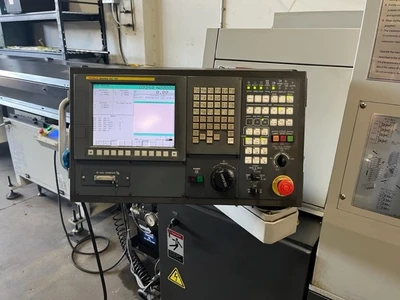

FANUC 0i-TD CNC Control
10.4" Color LCD
5-Axis Machining Capability
Synchronous Rotary Guide Bushing

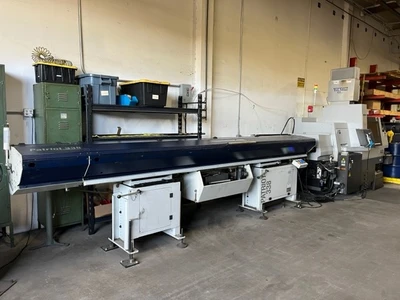

Edge Technologies Patriot 338 12 ft. Magazine Barfeed
Firetrace Fire Suppression System
Chip Conveyor (Hinge Type Right Side Exit)
High Pressure Coolant (2000 psi)
Tri Mist 850 Mist Collector
Three Color Tower Light
Manufacture Date March 2018

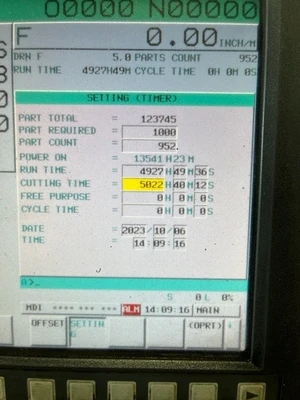

13,541 Power On Time

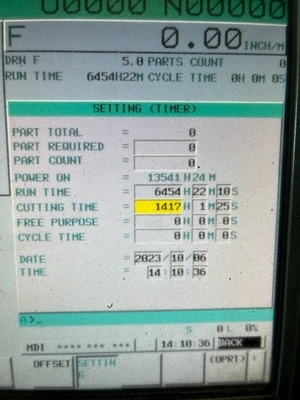

4927 Main Spindle 6454 Sub Spindle Operating Time
5022 Main Spindle 1417 Sub Spindle Cutting Time
