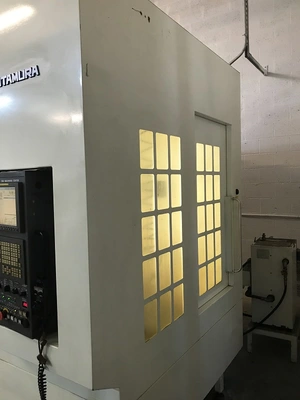

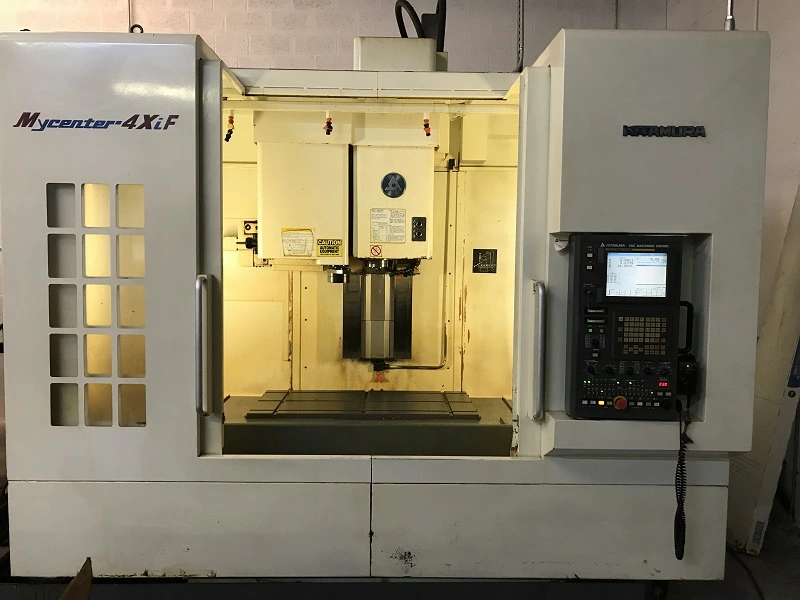

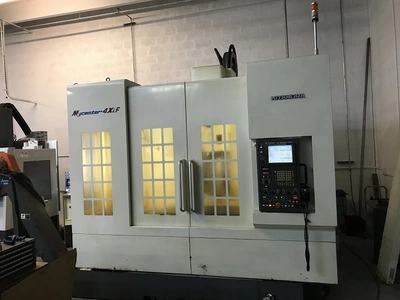

2004 KITAMURA MYCENTER 4XiF

Fanuc 16i-MB, 40.20.20", 20000 RPM, Cat 40, 25 HP, 30 Tools, TSC Interface, Chip Conveyor

X-Axis: 40"
Y-Axis: 20.1"
Z-Axis: 20.1"

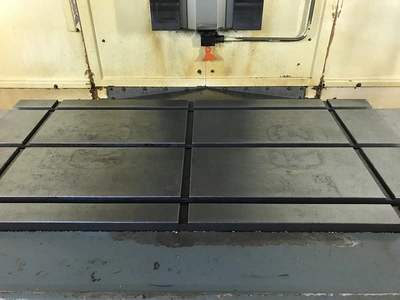

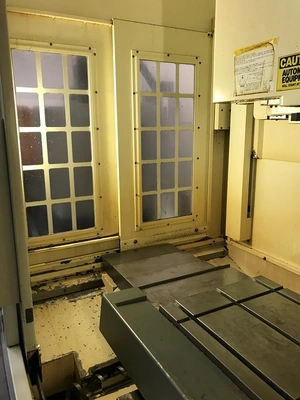

Table Size: 43.3" x 20.6"
Spindle Speed: 20,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 25 HP AC
Tools: 30
Table Load Capacity: 1320 lbs.
Rapid Traverse Rates (X & Y / Z): 1969 / 1417 IPM
Max Tool Diameter: 3.7" / 6.1"
Max Tool Length: 13.8"
Max Tool Weight: 22 lbs.
Machine Dimensions (L x W x H): 139.8" x 116.4" x 120.1"
Machine Weight: 18,000 lbs.
Spindle Nose to Table Top: 6.9" - 27"
Tool Change Time (T - T - C - C): 1.2 / 4.7 Seconds

FANUC 16i-MB CNC CONTROL
10.4" Color LCD
AI Nano High Precision Contour Control
Intelligent Advanced Control
1000 Blocks / Second Feedrate
500 Block Look Ahead
200 Block Multi Buffer
Spindle Chiller Unit
Coolant Thru Spindle Prep

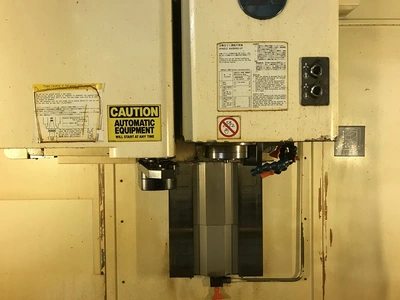

20,000 RPM 4-Step Gear Driven Dual Contact Spindle

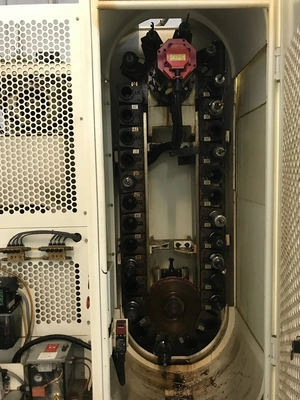

30 Position Side Mount Tool Changer
Shower Coolant & Base Wash Coolant
Cycle Completion Lamp
Rigid Tapping
(4) Additional M-Functions
Ballscrew Cooling System
Dual Chip Augers
Chip Conveyor (Left Side Exit)

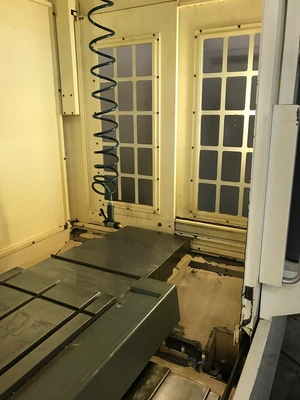

Full Enclosure
Heavy Duty Box Way Construction

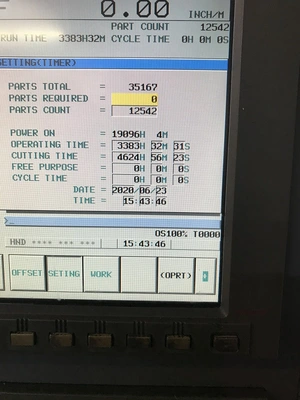

19,095 Power On Time
3383 Operating Time
4624 Cutting Time
