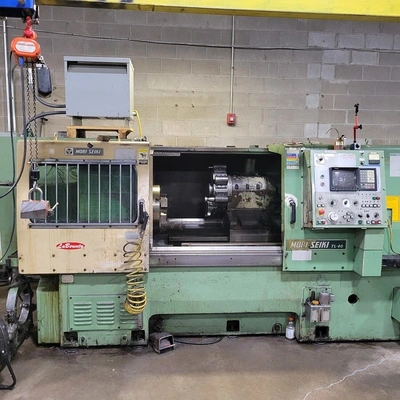

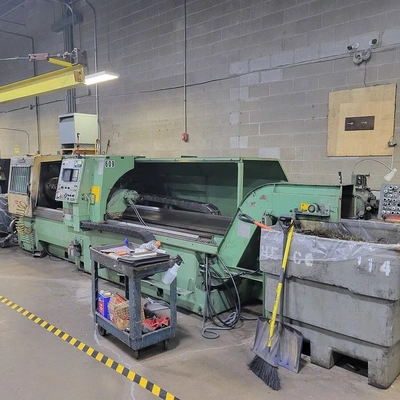

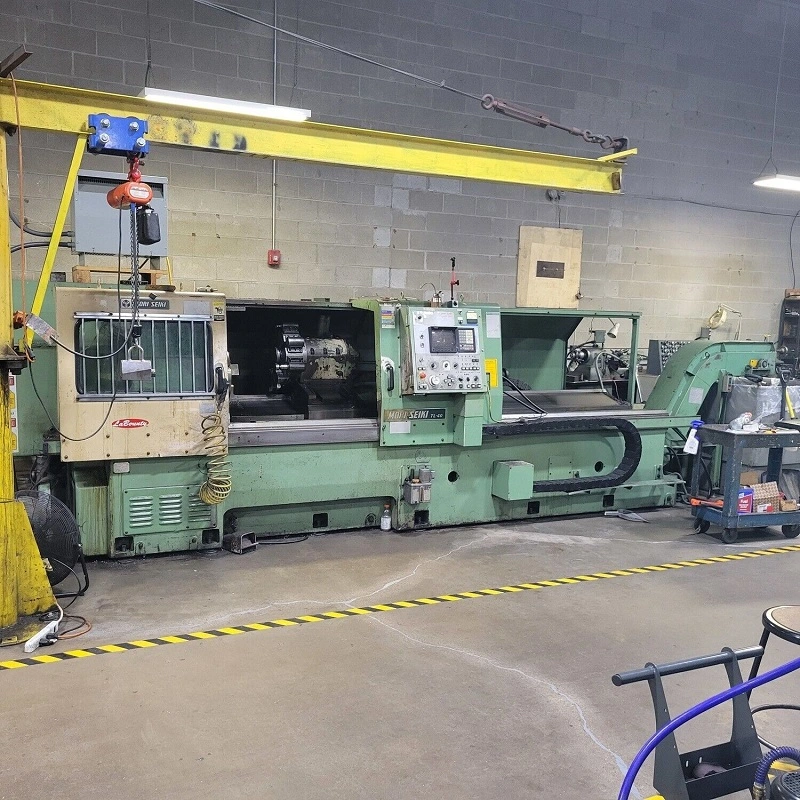

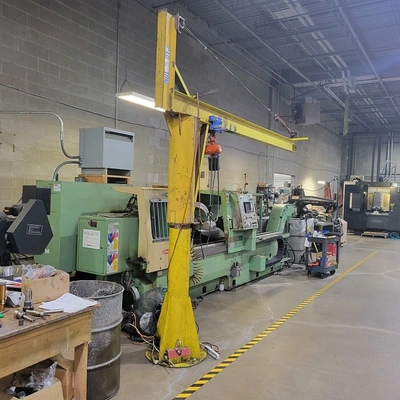

1989 MORI SEIKI TL-40B/3000
Overview
Description
Fanuc 10T, 3.54" Bar, 12" Chuck, 120" Length, 8 Tools, 30 HP, 2000 RPM, Tailstock, Chip Conveyor
Specifications
Chuck Size: 12"
Max Diameter Bar Capacity: 3.54"
Max Swing Over Bed / Carriage: 24.4" / 15"
Max Machining Length: 120"
Spindle Motor: 30 / 24.8 HP AC
Spindle Speed: 7 - 2000 RPM
Spindle Nose: A2-8
Spindle Bore: 4.1"
Tools: 8
Rapid Traverse Rates (X / Z): 189 / 378 IPM
X-Axis Travel: 9.2"
Z-Axis: 115"
Turret Index (Single Step): 2.7 Seconds
Machine Dimensions (L x W x H): 227.2" x 76.2" x 68.6"
Machine Weight: 17,000 lbs.
Max Turning Diameter: 16.5"
Spindle Torque: 664.7 ft. lbs.
Tailstock Taper: MT #5
Equipped With

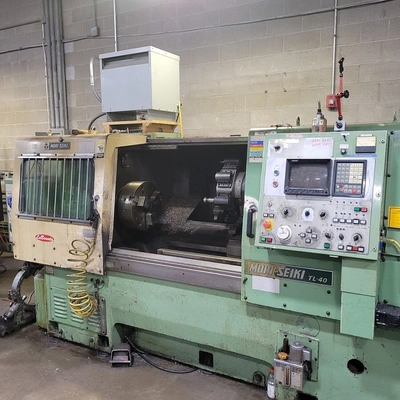

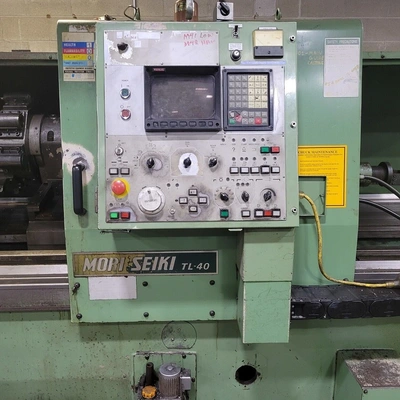

FANUC 10T CNC Control
9" Monochrome CRT

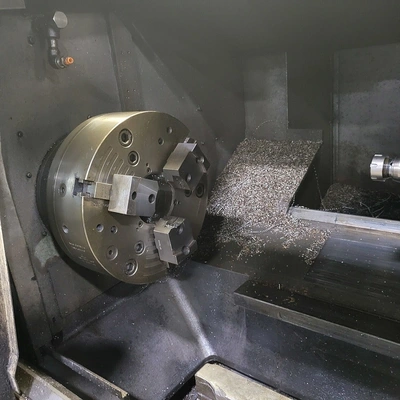

12" Hydraulic Chuck
120" Max Cutting Length

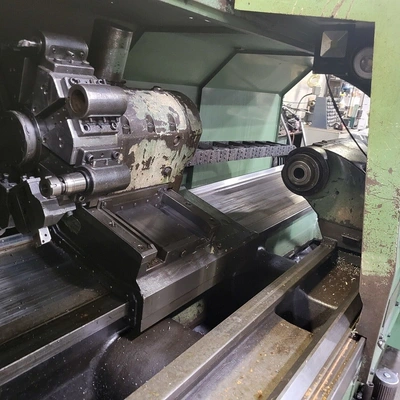

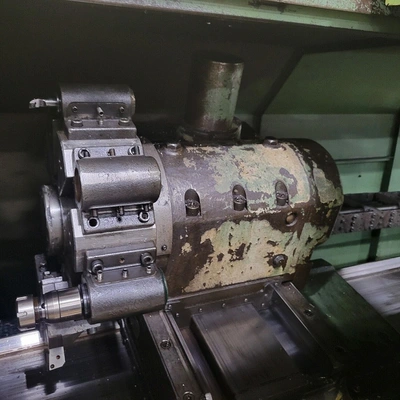

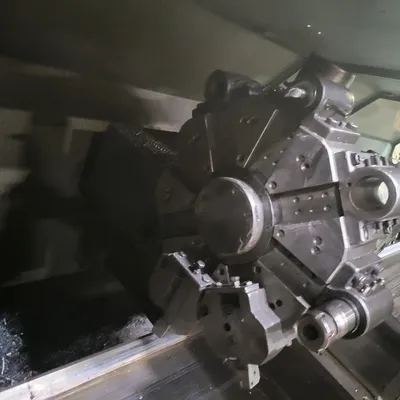

8 Position Turret
Manual Tailstock
Chip Conveyor (Right Side Hinge Type)
Manual Steady Rest
(4) Boring Bar Holders
(2) Turning Holders
23,982 Hard Meter Hours
