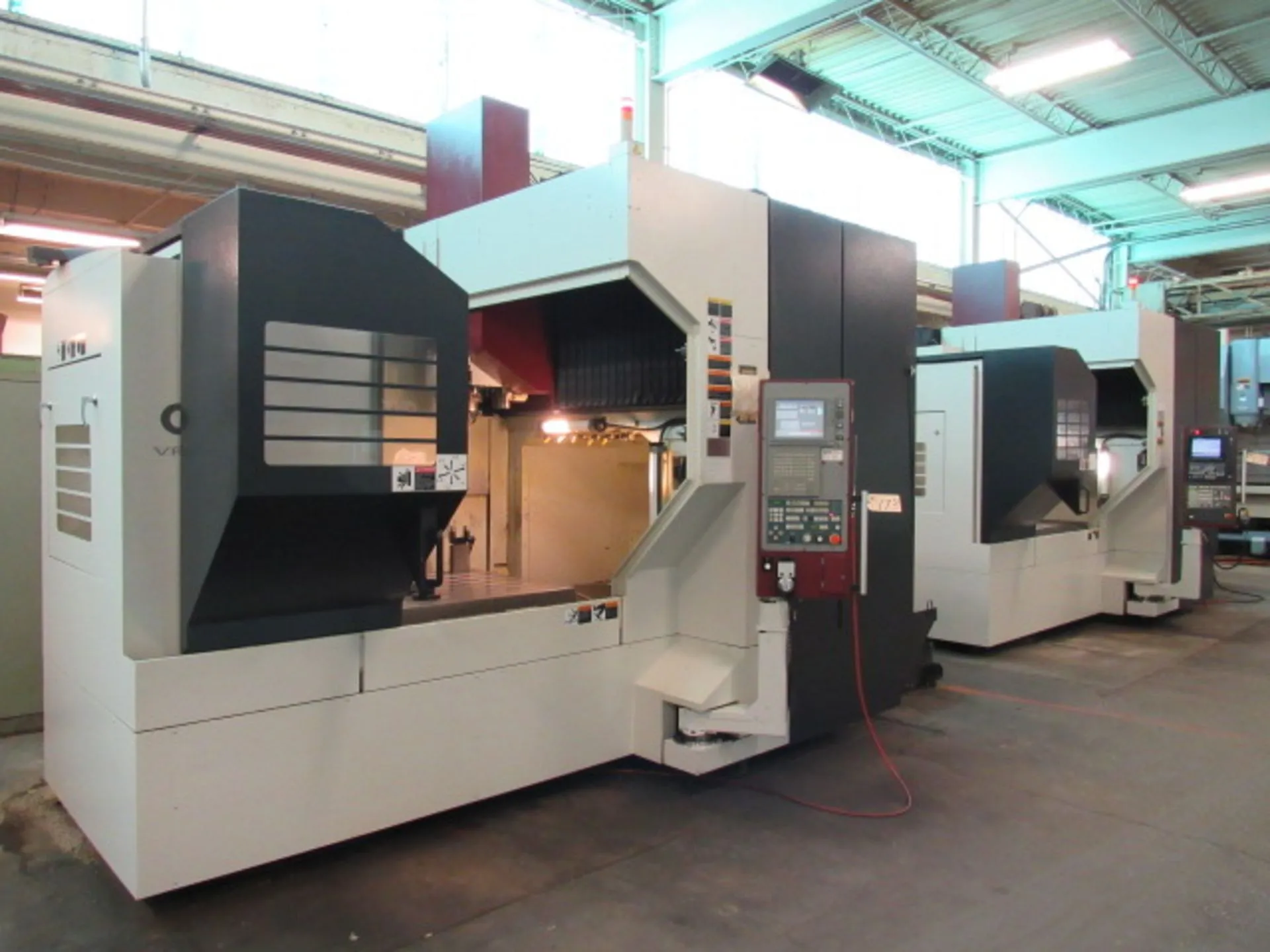

2005 OKK VP-9000

MIT 635V, 44.36.22", 20000 RPM, Cat 40 Big Plus, 30 HP, 40 Tools, Probes, High Speed Machining

X-Axis: 44.1"
Y-Axis: 36"
Z-Axis: 22"

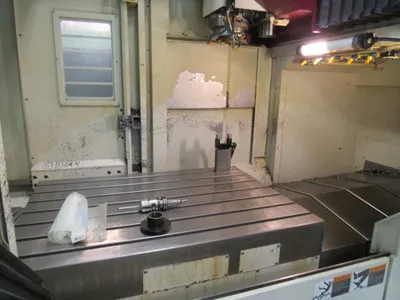

Table Size: 51.8" x 36.2"
Spindle Speed: 20,000 RPM
Spindle Taper: Cat 40 Big Plus
Spindle Motor: 30 HP
Tools: 40
Table Load Capacity: 3306 lbs.
Rapid Traverse Rates (X Y Z): 1260 IPM
Max Tool Diameter: 3.23" / 4.92"
Max Tool Length: 11.81"
Max Tool Weight: 15.4 lbs.
Machine Weight: 34,000 lbs.

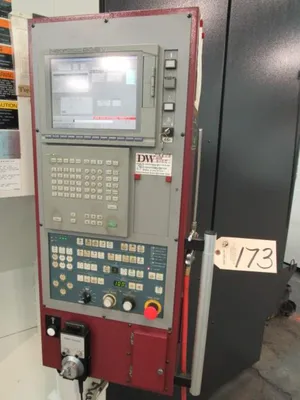

MITSUBISHI NEOMATIC 635V CNC Control
10.4" MONOCHROME CRT
ETHERNET CAPABILITY
BRIDGE-TYPE CONSTRUCTION
20000 RPM SPINDLE SPEED
200 SETS TOOL OFFSETS
ADDITIONAL PROGRAM MEMORY (1200 METERS)
ADDITIONAL WORK PIECE COORDINATES
AUTO CORNER CHAMFERING / CORNER ROUNDING
COLUMN RISER 7.87"
FULL ENCLOSURE
HELICAL INTERPOLATION
HP-HQ CONTROL 1
HI SPEED MACHINING MODE I
INCH / METRIC CONVERSION
NCOP PACKAGE A
OIL MIST AIR BLOW NOZZLE
RENISHAW PART PROBE

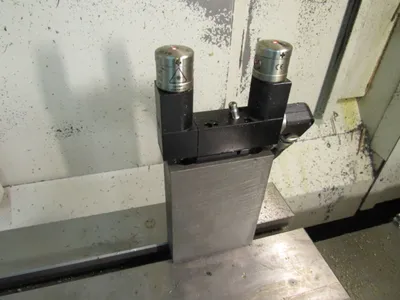

T1 LASER TOOL MEASUREMENT
TOOL LIFE MANAGEMENT
CHILLED BALLSCREWS
RIGID TAPPING
SINGLE DIRECTIONAL POSITIONING
SKIP FUNCTION

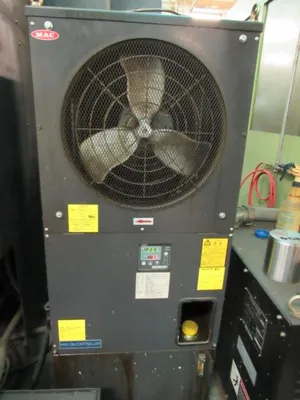

SPINDLE CHILLER UNIT
USER MACROS
