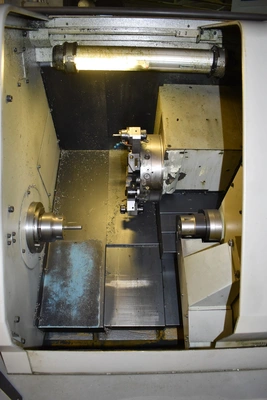

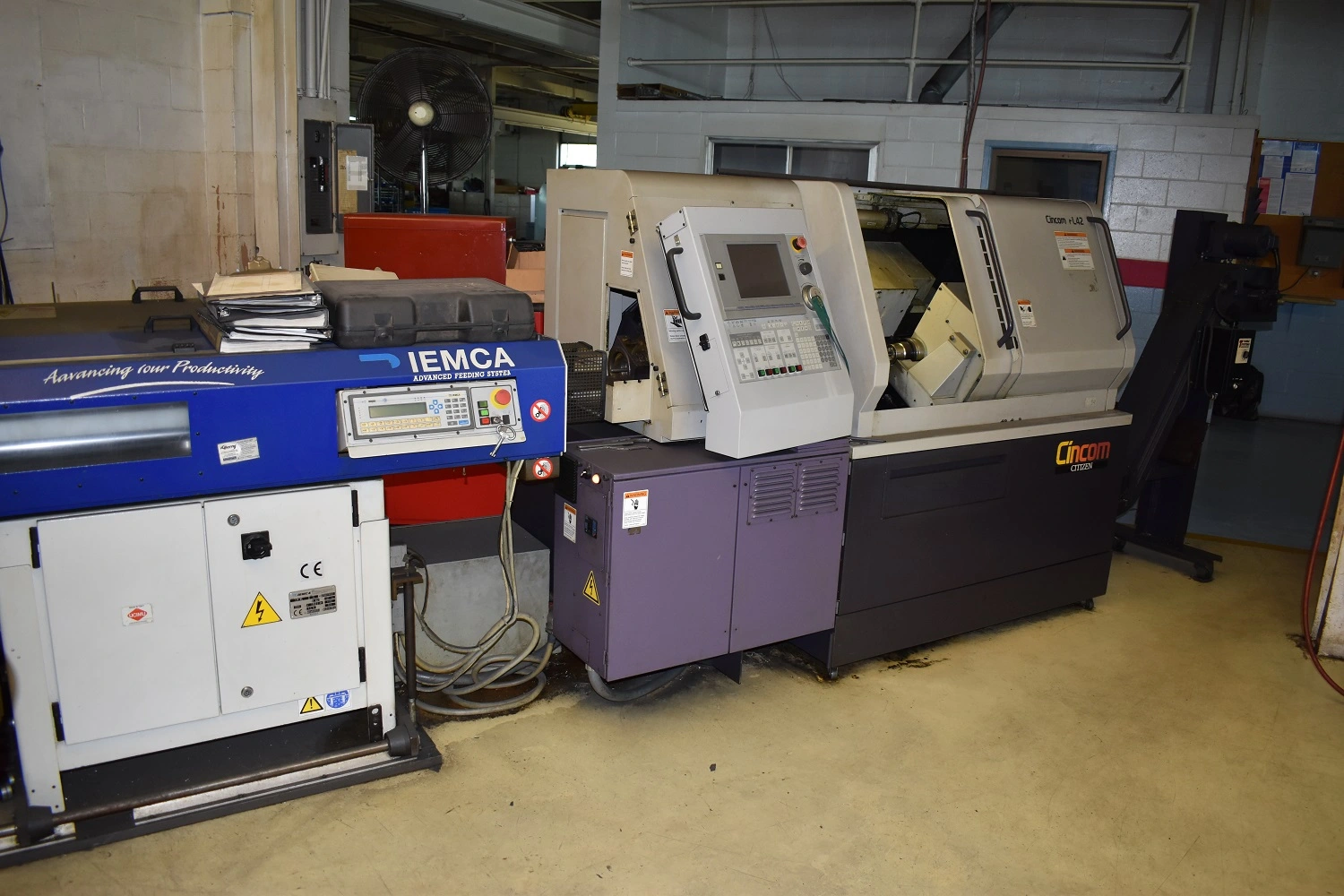

2002 CITIZEN FL-42

Mit, 1.63" Bar, 6" Chuck, 3" Length, 6000 RPM, 15HP, 12/24 Tools, C-Axis Milling, Sub Spindle, Iemca VIP 80 Barfeed

Chuck Size: 6"
Max Diameter Bar Capacity: 1.63"
Max Machining Length: 3.15"
Spindle Speed: 6000 RPM
Spindle Bore: 1.82"
Tools: 12 / 24
Milling Motor: 1.3 HP
Sub Spindle Max Chuck Dia.: 1.69"
Sub Spindle Motor: 5 / 3 HP
Rapid Traverse Rates (X: Z1
C-Axis Index: .001 Degrees
Machine Dimensions (L x W): 90" x 66.6"
Machine Weight: 5620 lbs.

CINCOM FL SERIES (MITSUBISHI 635LCC) CNC CONTROL
Fixed Headstock Design
C-Axis Milling Capability
Programmable Sub Spindle

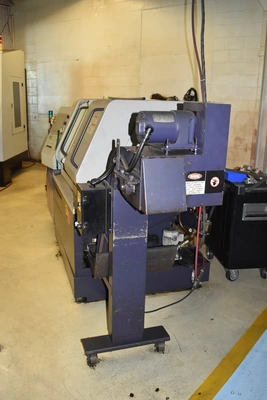

Iemca VIP 80 Short Magazine Barfeed
Collet Chucks for Main & Sub Spindle
