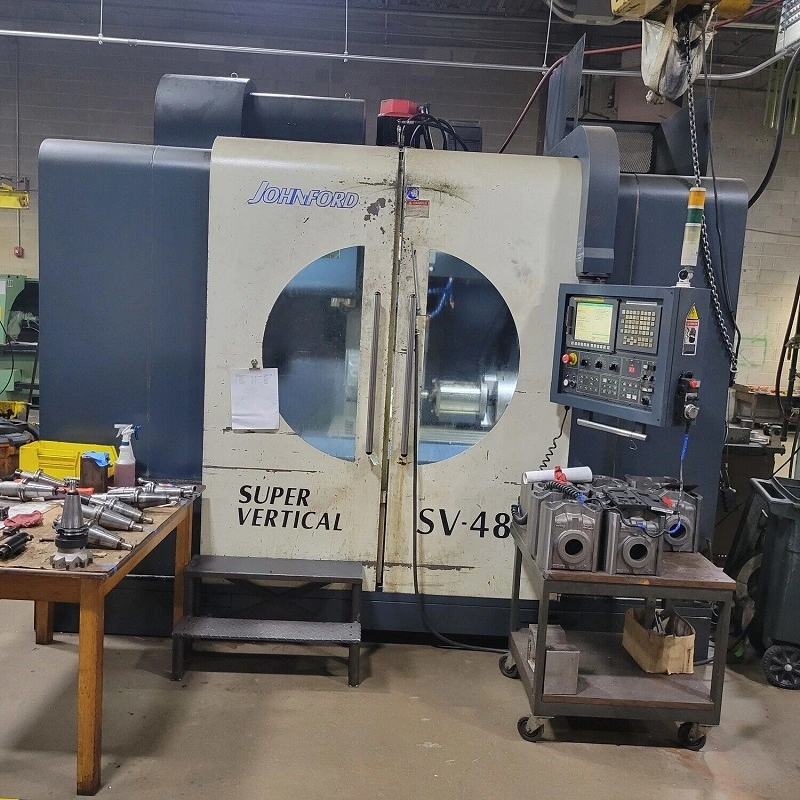

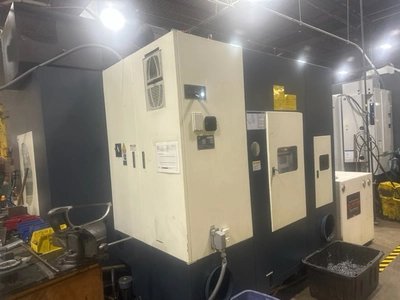

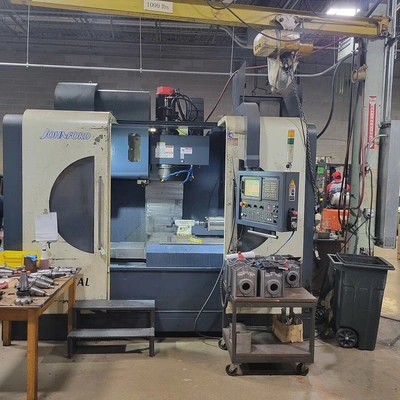

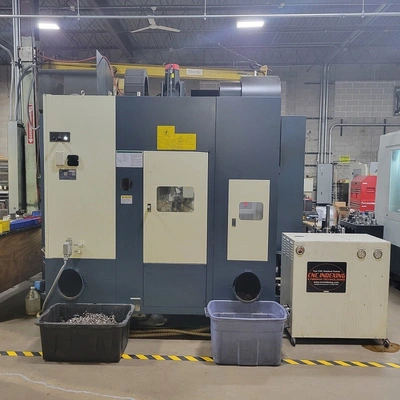

2012 JOHNFORD SV-48H

FANUC 0iMD, 48.29.25", Cat 50, 6000 RPM, 24 SMTC, 20 HP, TSC, Rotary Table, Geared Head, Box Ways, Chip Conveyor

X-Axis: 48.2"
Y-Axis: 28"
Z-Axis: 24.8"
Table Size: 51.2" x 27.6"
Spindle Speed: 6000 RPM
Spindle Taper: CAT 50
Spindle Motor: 20 HP
Tools: 24
Table Load Capacity: 3300 lbs.
Rapid Traverse Rates: 945 IPM
Max Tool Diameter: 5" / 9.8"
Max Tool Length: 15.7"
Max Tool Weight: 33 lbs.
Machine Weight: 22,000 lbs.

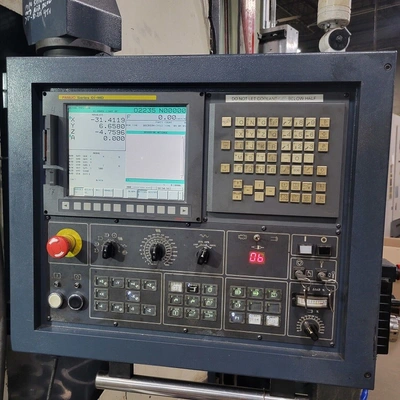

FANUC 0iMD CNC Control
9" Color LCD
Through Spindle Coolant High Pressure
24 Position Side Mount Tool Changer

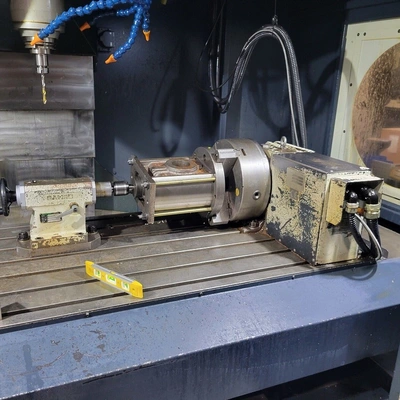

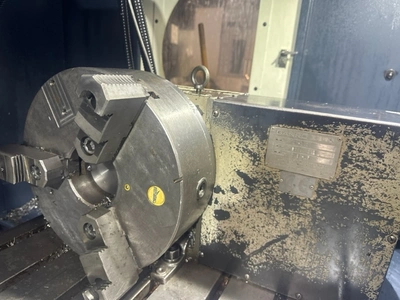

Ganro Fourth Axis Rotary Table
Manual Tailstock
Dual Chip Augers
Two Gear Range Headstock
Heavy Duty Box Way Construction
Three Color Tower Light

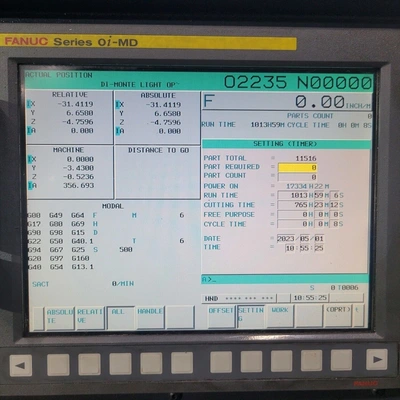

17,334 Power On Time
1013 Operating Time
765 Cutting Time
