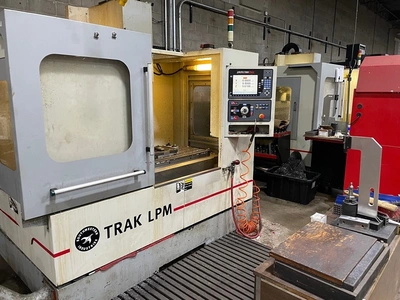

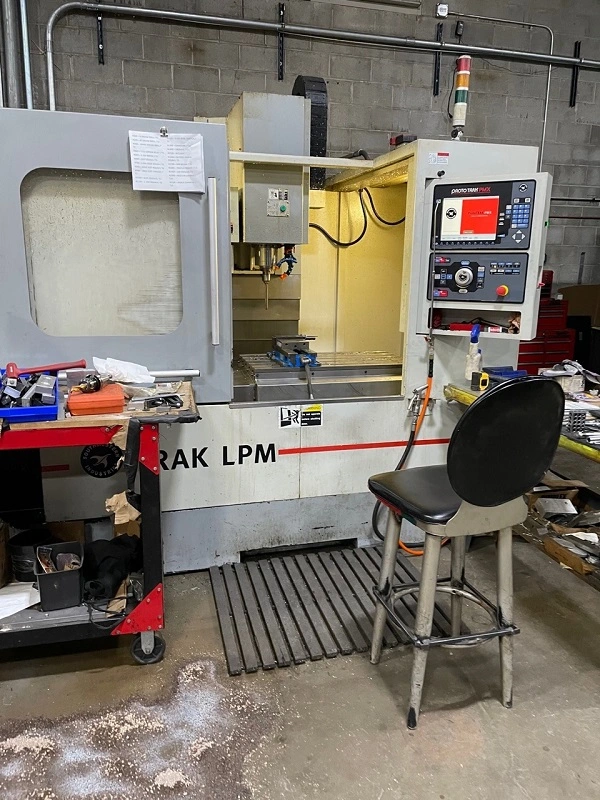

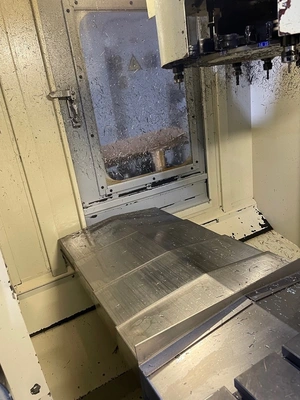

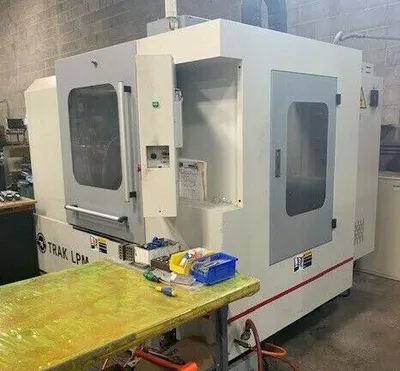

2012 SOUTHWESTERN INDUSTRIES TRAK LPM

ProtoTRAK PMX, 31.18.21", 8000 RPM, Cat 40, 15 HP, 16 Tools, Coolant Wash Down, Rigid Tap, Chip Auger

X-Axis: 31"
Y-Axis: 18.5"
Z-Axis: 21"

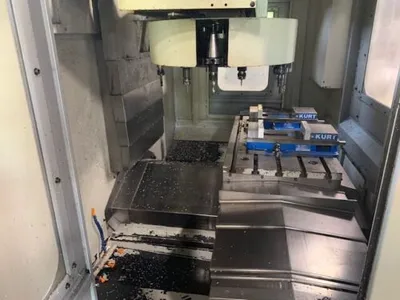

Table Size: 35.38" x 19.63"

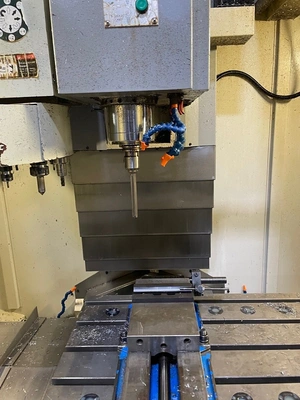

Spindle Speed: 8000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 / 10 HP
Tools: 16
Table Load Capacity: 1000 lbs.
Rapid Traverse Rates (X & Y / Z): 800 / 700 IPM
Max Tool Diameter: 3.14"
Max Tool Weight: 15 lbs.
Machine Dimensions (L x W x H): 90" x 88" x 103"
Machine Weight: 7650 lbs.
Spindle Nose to Table Top: 3.375" - 24"
Tool Change Time (T - T): 0.8 Seconds

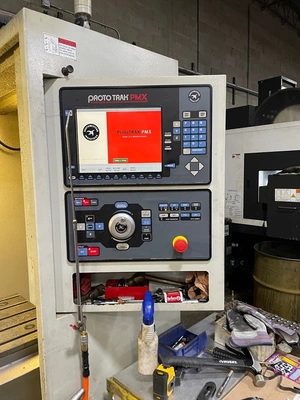

ProtoTRAK PMX CNC Control
10" Color CRT
(4) USB Ports

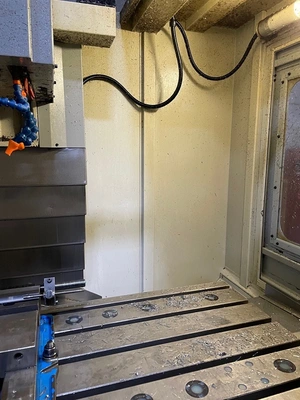

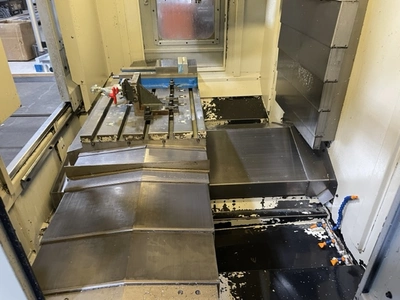

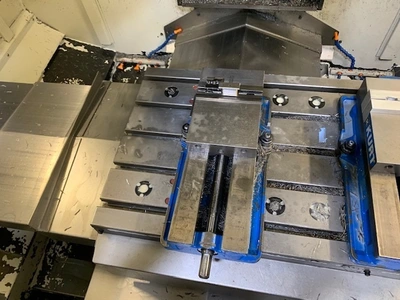

Built-In Jergens Ball Lock System in Table
Mobile Tool Setter with Cart
Advanced Programming Features
TRAKing
Network Memory
16 Tool Magazine
Chip Auger
Internal Coolant Wash Down Nozzles
Coolant Wash Down Gun
Rigid Tapping
Spindle Air Blast
Air Gun
Oil and Coolant Separation System
Three Color Tower Light
Halogen Work Lights
Auto Lube System
(2) Machines Available
