2016 SMW AUTOBLOK AXN210 Hydraulic Index Chuck
Overview
Type:
ChucksDescription

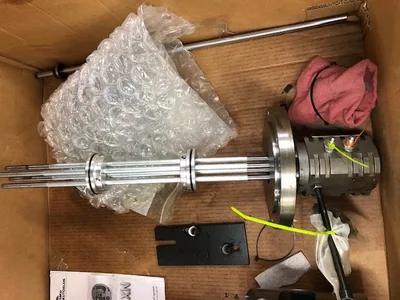

8.26" Chuck, 7.24" Max Workpiece Rotation Dia, Hydraulic Unit, Drawtube, Actuator
Equipped With

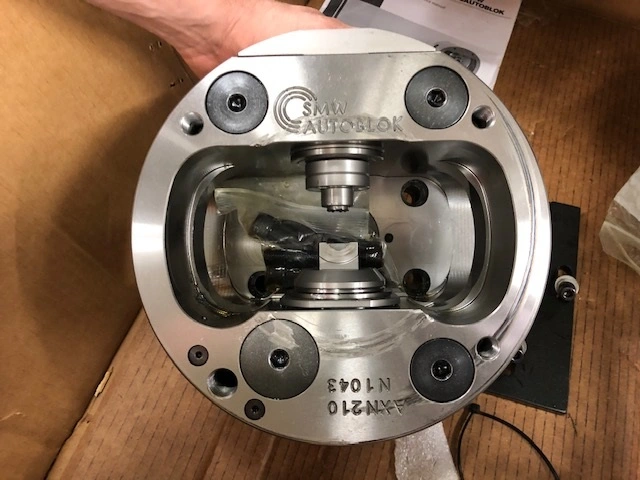

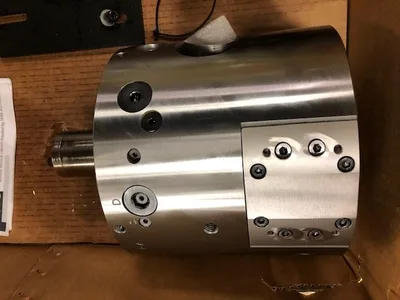

8.26" Dia. Chuck Body
7.24" Max Workpiece Rotation Diameter (G)
6.89" Max Axial Loading Window (G1)
6.29" Max Workpiece Rotation Diameter (G2)
5.90" Max Axial Loading Window (G3)
0.59" Clamping Jaw Stroke
45 Bar Max Pressure
4400 RPM Max Spindle Speed
53 lbs. Chuck Weight

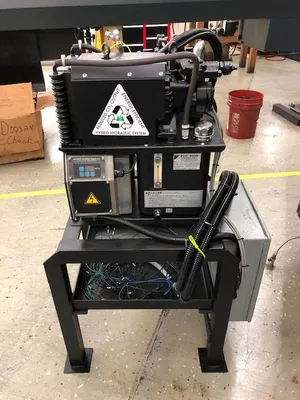

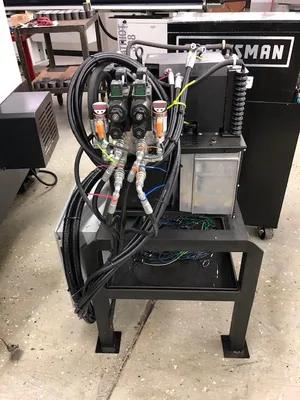

Daikin U-EHU25-M07-15-30-V Hydraulic Unit
Came From a 2016 DOOSAN Lynx 220LSY CNC Lathe
