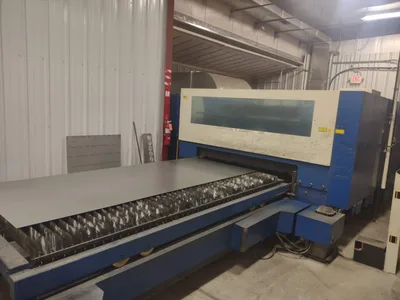

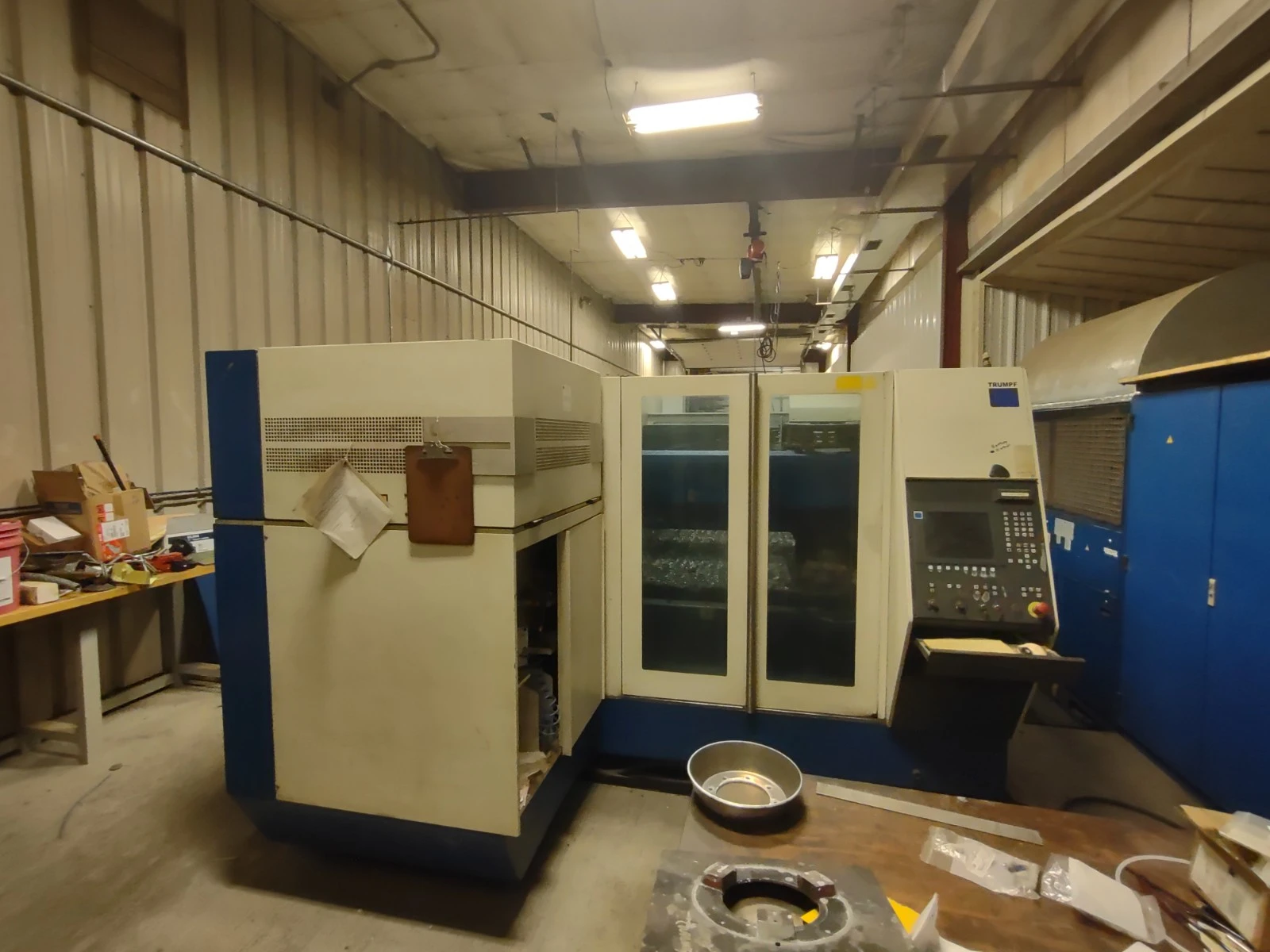

2006 TRUMPF TC L 3030 TLF 4000 CO2 LASER
Overview
Description
TRUMPF CNC Control (SEIMENS 840D), 4000 Watt CO2 Laser, 5' x 10', Auto Pallet Shuttle
Specifications
Average Positional Spread: +/- 0.001"
Dimensions (L x W x H): 385.82" x 208.66" x 78.74"
Laser Output: 4000W
Max Material Thickness: 0.787"
Max Travel In X: 122.20"
Max Travel In Y: 62.20"
Max Travel In Z: 4.80"
Overshoot Range In X: -0.630" to 3.465"
Overshoot Range In Y: -0.748" to 2.401"
Overshoot Range In Z: -0.079" to 0.630"
Positioning Accuracy: +/- 0.004"
Smallest Programmable Increment: 0.0004"
Total Weight With TLF Laser: 25,300LBS
Working Range In X: 118.11"
Working Range In Y: 59.06"
Working Range In Z: 4.53"
Equipped With

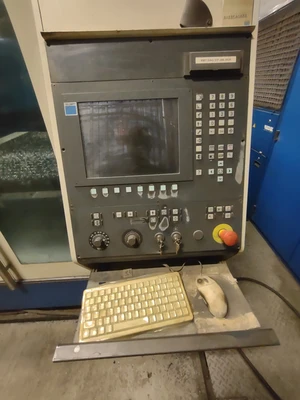

TRUMPF CNC Control Based On SEIMENS SINUMERIK 840D

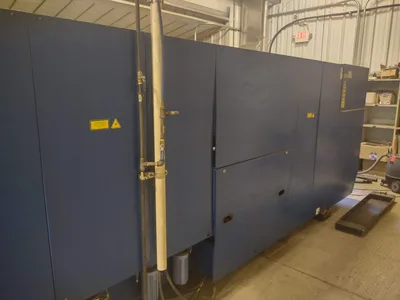

4000 Watt Resonator

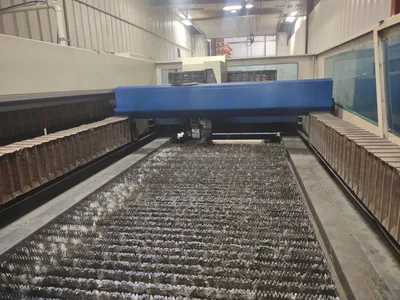

Table Size: 60"x120"
Trumpf Liftmaster Automatic Pallet Shuttle System
38,329 Laser On Hours
17,447 Beam On Hours
Manufacture Date February 2006
