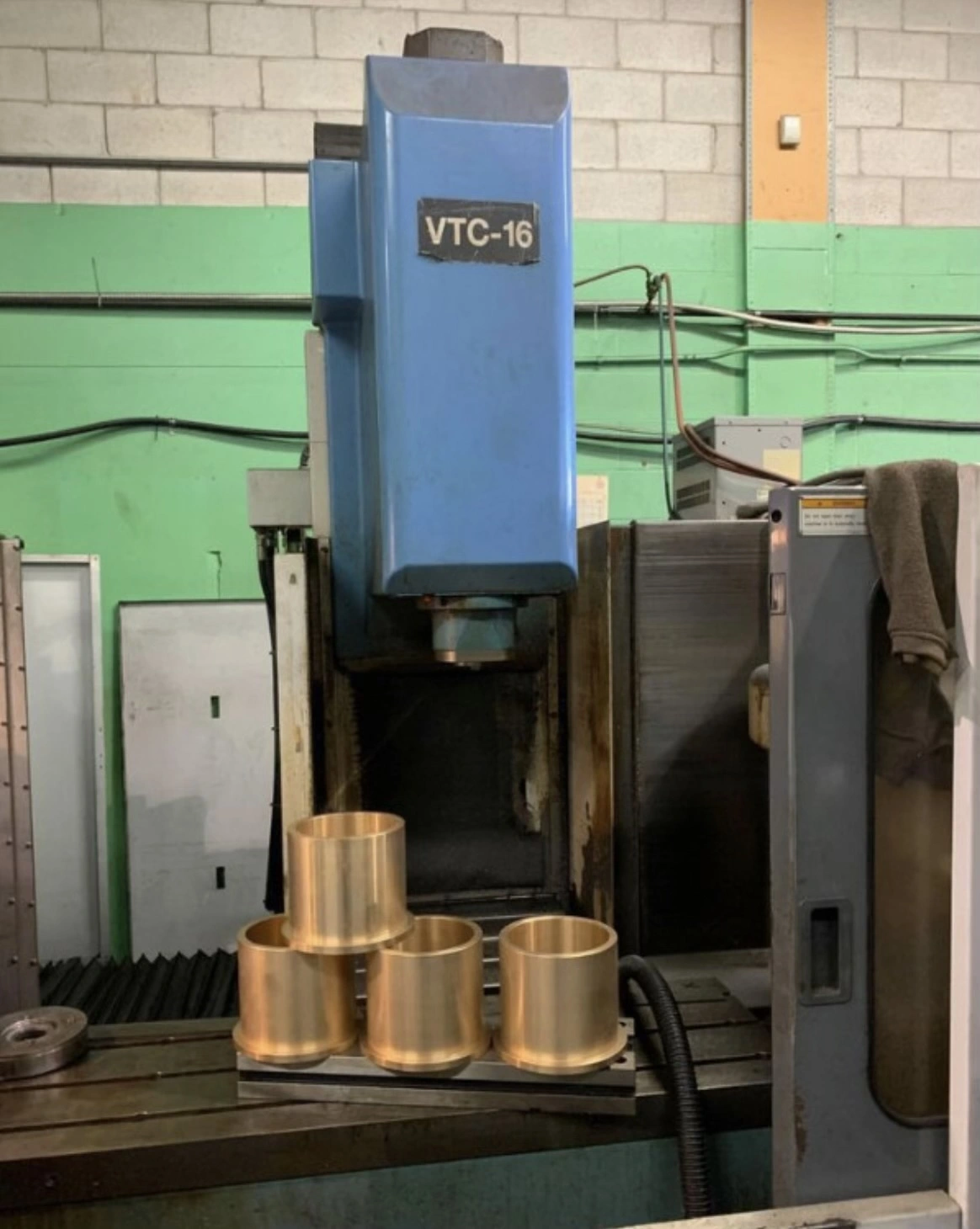

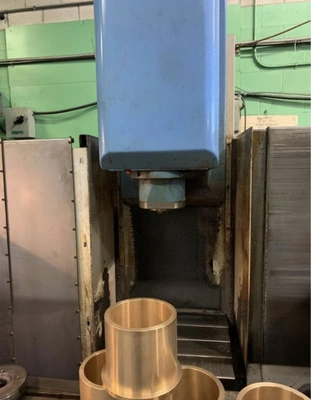

1995 MAZAK VTC-16B

M-32B, 44.16.20", 8000 RPM, 24 Tools, Cat 40, 15 HP, Chip Conveyor

X-Axis: 44.09"
Y-Axis: 16.14"
Z-Axis: 20.08"
Table Size: 57.48" x 16.1"
Spindle Speed: 40 - 8000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 / 10 / 7.5 HP AC
Tools: 24
Table Load Capacity: 1120 lbs.
Rapid Traverse Rates (X & Y / Z): 787 / 590 IPM
Max Tool Diameter: 3.14" / 4.33"
Max Tool Length: 13.8"
Max Tool Weight: 13.78 lbs.
Machine Dimensions (L x W x H): 118.11" x 116" x 106"
Machine Weight: 11,000 lbs.
Spindle Nose to Table Top: 4.3" - 24.4"
Tool Change Time (C - C): 9 Seconds

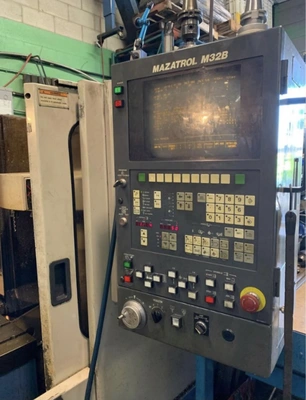

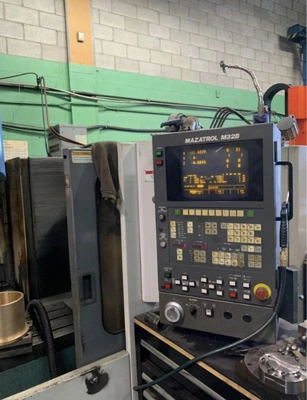

MAZATROL M-32B CNC CONTROL
12" Monochrome CRT
Conversational Programming
Graphic Display
Helical Interpolation
Chip Conveyor (Right Side Exit)
Manufacture Date November 1995
