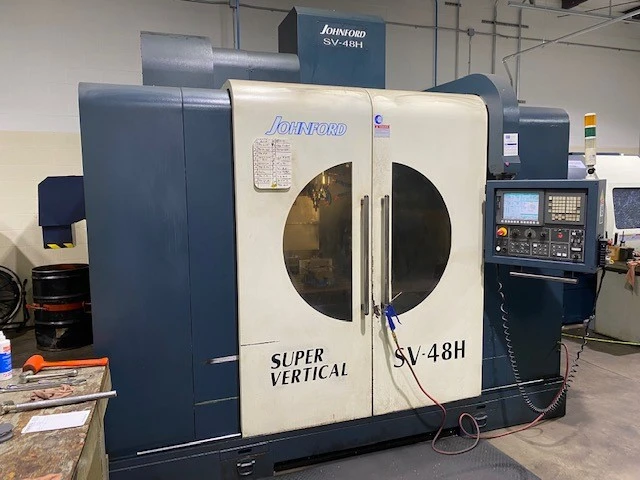

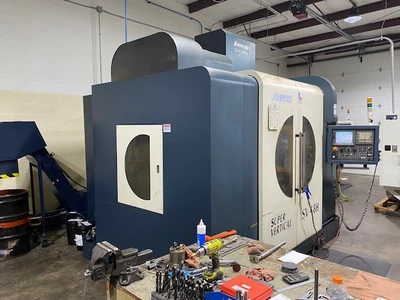

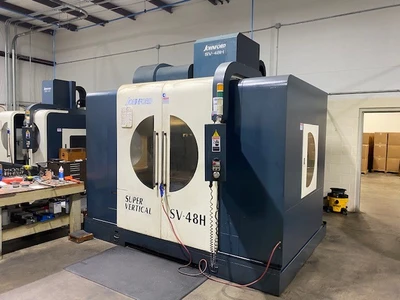

2011 JOHNFORD SV-48H

FANUC 0iMC, 48.29.25", Cat 50, 6000 RPM, 24 Tools, 20 HP, Geared Head, Box Ways, Chip Conveyor

X-Axis: 48.2"
Y-Axis: 28"
Z-Axis: 24.8"
Table Size: 51.2" x 27.6"
Spindle Speed: 6000 RPM
Spindle Taper: CAT 50
Spindle Motor: 20 HP
Tools: 24
Table Load Capacity: 3300 lbs.
Rapid Traverse Rates: 945 IPM
Max Tool Diameter: 5" / 9.8"
Max Tool Length: 15.7"
Max Tool Weight: 33 lbs.
Machine Weight: 22,000 lbs.

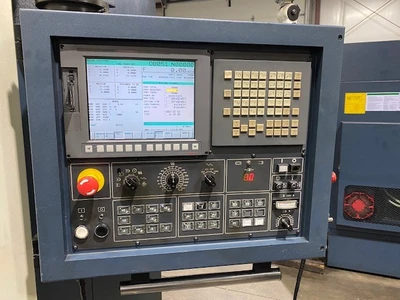

FANUC 0iMC CNC Control
10.4" Color LCD
USB Port
Two Gear Range Headstock

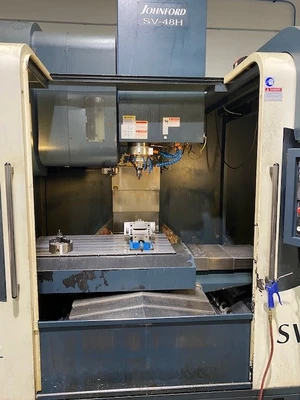

(4) Box Way Bed Design Supports Table & Saddle
24 Position Side Mount Tool Changer
Rigid Tapping
Chip Conveyor (Rear Left Side Exit Hinge Type)
Remote Jog Handle
Three Color Tower Light
Manufacture Date November 2011

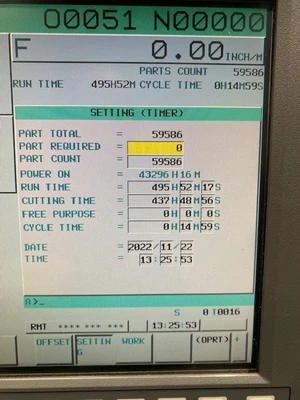

43,296 Power On Time
495 Run Time
437 Cutting Time
