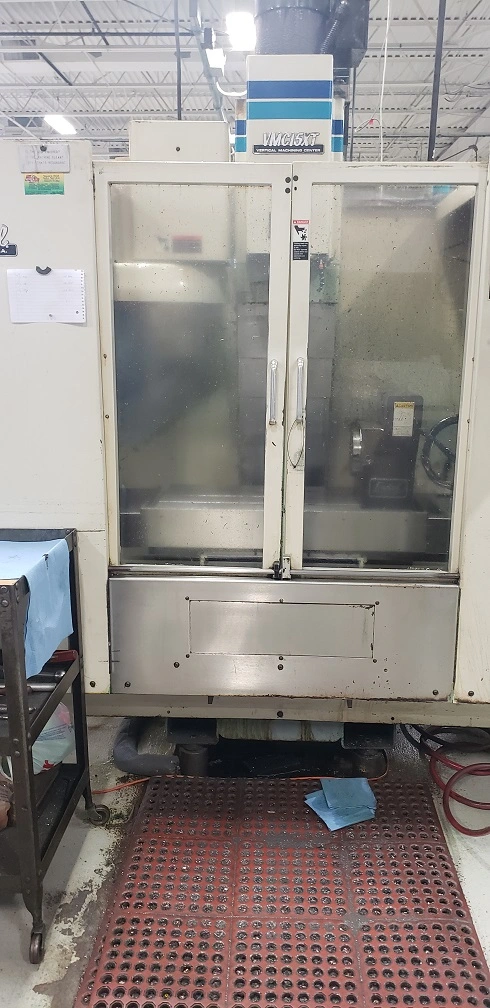

1995 FADAL VMC-15XT

20.16.20", 7500 RPM, Cat 40, 7.5 HP, 21 Tools, Fourth Axis Prewire, Rigid Tapping

X-Axis: 20.0"
Y-Axis: 16"
Z-Axis: 20"
Table Size: 29.5" x 16"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Tools: 21
Table Load Capacity: 750 lbs.
Rapid Traverse Rates: 400 IPM
Max Tool Diameter: 3" / 4.5"
Max Tool Length: 15"
Max Tool Weight: 15 lbs.
Machine Dimensions (L x W x H): 75" x 77" x 101"
Machine Weight: 5800 lbs.
Spindle Nose to Table Top: 4" - 24"
Spindle Torque: 150 ft. lbs.

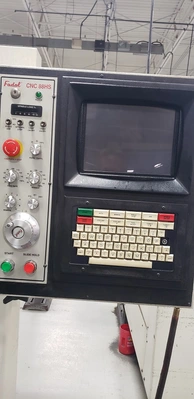

FADAL 88HS CNC Control
12" Monochrome CRT

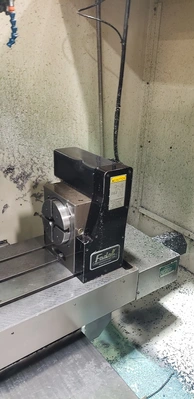

Fourth Axis Prewire
Rigid Tapping
High Speed CPU
Graphic Display
