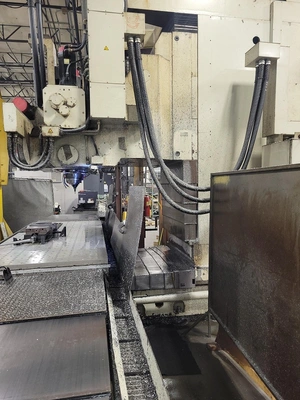

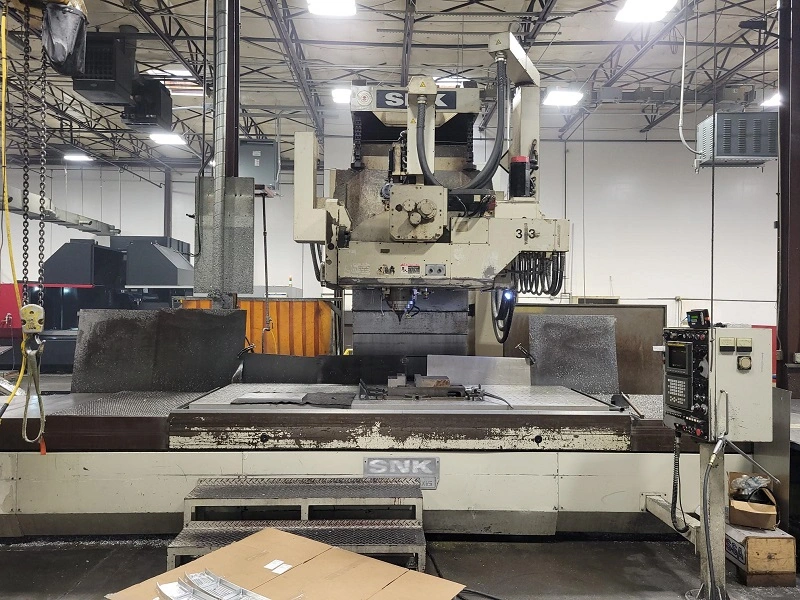

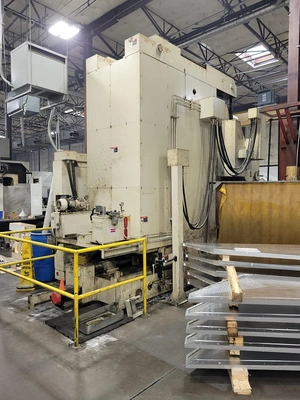

1998 SNK FSP-120V 5-Axis Profiler

FANUC 16M, 120.50.24", 30 HP, Cat 50, 4000 RPM, Chip Conveyor

X-Axis: 120"
Y-Axis: 50"
Z-Axis: 24"
A-Axis: +/- 30 Degrees
B-Axis (Spindle Tilt Left / Right): +/- 30 Degrees

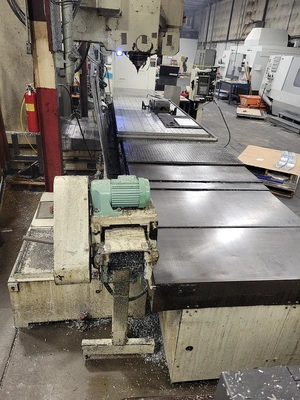

Table Size: 124" x 48"
Spindle Speed: 4000 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Machine Weight: 90,000 lbs.
Spindle Nose to Table Top: 5" - 33"

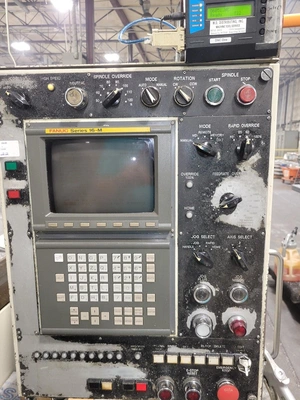

FANUC 16M CNC Control
9" Monochrome CRT
5-Axis Full Contouring Capability

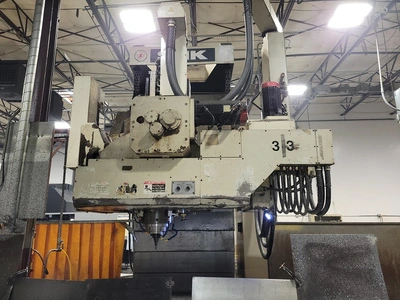

+ / - 30 Degree Tilt & Rotation on Headstock
Chip Conveyor (Left Side Exit Hinge Type)

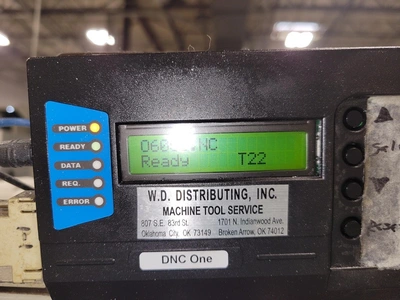

DNC One for Download Capability
