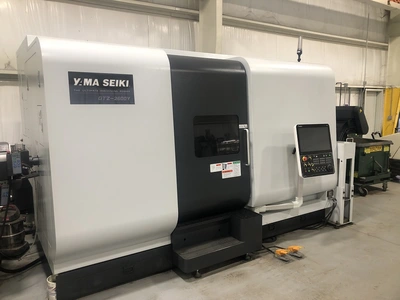

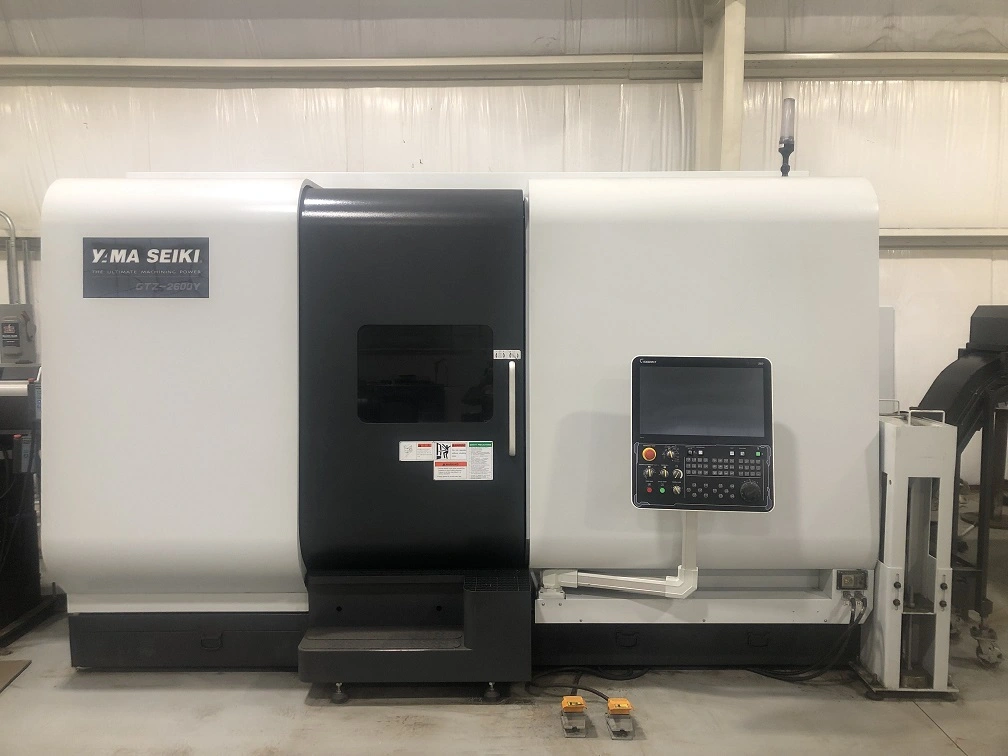

2018 YAMA SEIKI GTZ-2600Y

FANUC 31i, 2.55" Bar, (2) 8" Chuck, 16/16 Tools (All Live), Upper and Lower Turrets, Twin Spindle, Y-Axis, Chip

Chuck Size: 8"
Max Diameter Bar Capacity: 2.55"
Max Swing Diameter: 10.62"
Spindle Motor: 20 / 15 HP (2)
Spindle Speed: 40 - 4000 RPM
Spindle Nose (L & R): A2-6
Spindle Bore: 2.99"
Tools (Upper Turret / Lower Turret): 16 / 16 (All Live)
Milling Motor: 7.5 / 5 HP
Milling Speed: 0 - 6000 RPM
Rapid Traverse Rates (X & Z): 945 IPM
X-Axis Travel (X1 / X2): 7.67" / 8.26"
Z-Axis Travel (Z1 / Z2): 24.39" / 24.39"
Y-Axis Travel: 3.93" (+/- 1.96")
Turret Index (Single Step / Full): 0.2 / 0.5 Seconds
Max Turning Diameter: 9.44"
Spindle Torque: 155 / 210 ft-lb

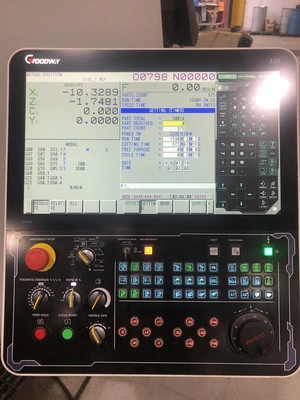

FANUC 31i CNC CONTROL

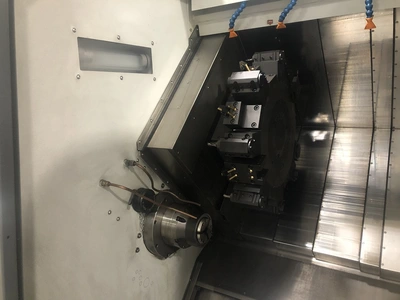

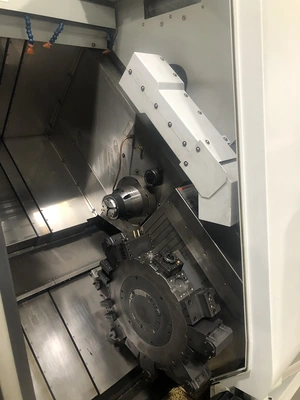

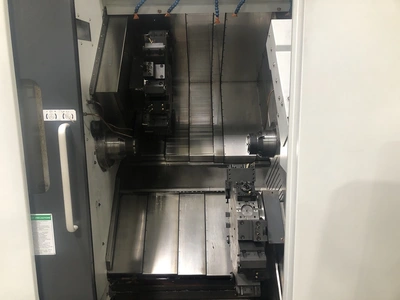

Twin Spindle Twin Turret Design
Y-Axis (Upper Turret)
C-Axis Milling (Upper and Lower Turret)
32 Tool Positions (All Live)
(2) 8″ Hydraulic Chucks
(2) Microcentric Collet Chucks
Allcool Systems High Pressure Coolant (1000 PSI)
Tool Presetter
Sub Spindle Parts Ejector
Parts Catcher
Chip Conveyor
Barfeed Interface
3 Face Live Holders
3 OD Live Holders
