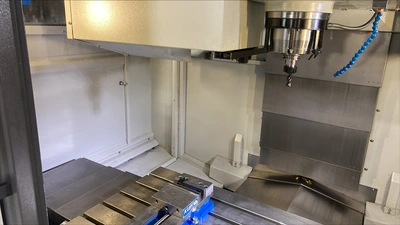

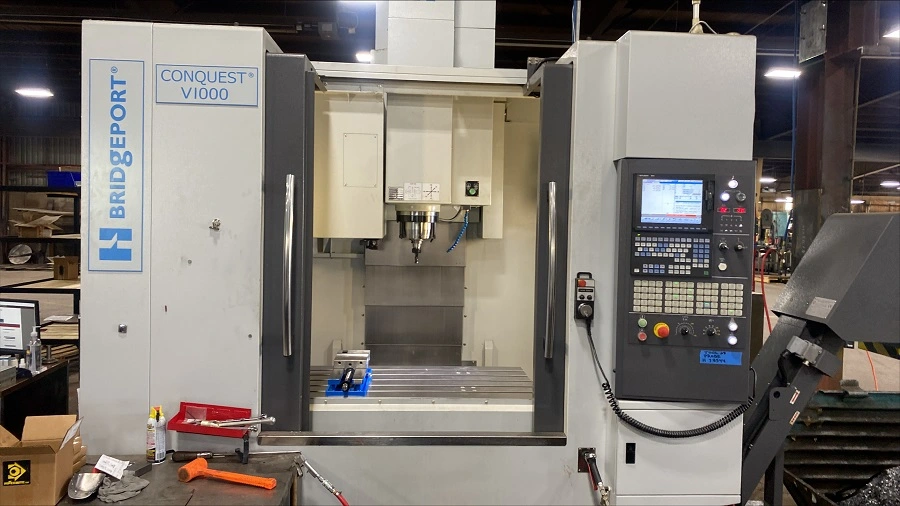

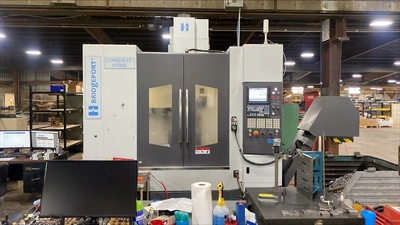

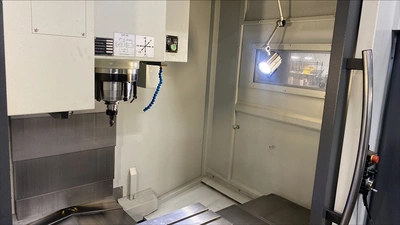

2016 HARDINGE BRIDGEPORT CONQUEST V1000

MIT M70, 40.24.24", 30 SMTC, 10000 RPM, 20 HP, Cat 40 Big Plus, Rigid Tapping, Chip

X-Axis: 40.1"
Y-Axis: 24"
Z-Axis: 24"
Spindle Speed: 40 - 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP
Tools: 30
Table Load Capacity: 1984 lbs.
Rapid Traverse Rates: 1417 IPM
Max Tool Weight: 17.6 lbs.
Machine Dimensions (L x W x H): 105" x 108" x 119"
Machine Weight: 16,534 lbs.
Tool Change Time (T - T): 1.5 Seconds

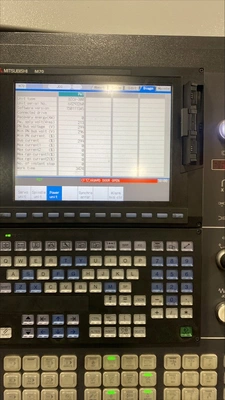

MITSUBISHI M70 CNC Control
10.4" Color LCD
PC/MCIA Interface
AI Contour Control
30 Position Side Mount Tool Changer
Rigid Tapping
Remote Jog Handle
Cat 40 Big Plus Dual Contact Spindle Taper
Helical Interpolation
400 Sets of Tool Offsets
Manual Central Grease Lubrication
Work Light
Surround Tool Coolant
Spindle Taper Cleaner
Remote MPG
Ethernet Connection
Automatic Power Off
Cutter Air Blast (Spindle side)
Chip Conveyor
Manufacture Date October 2016
