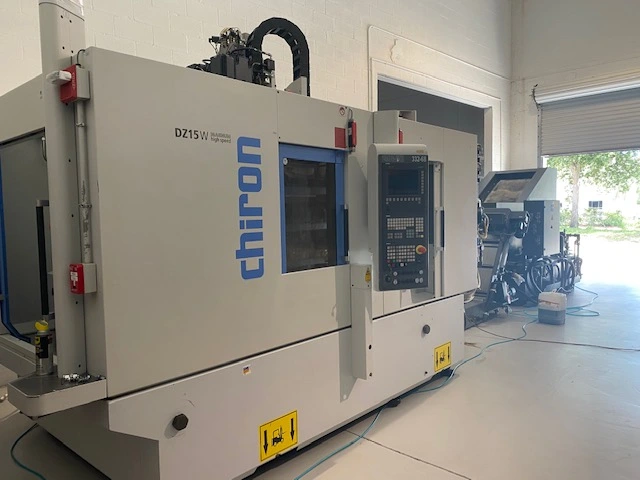

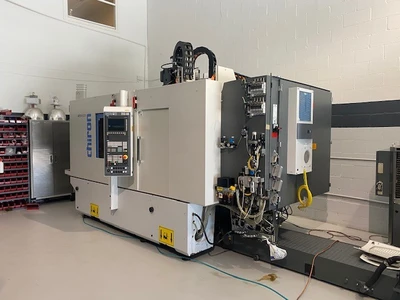

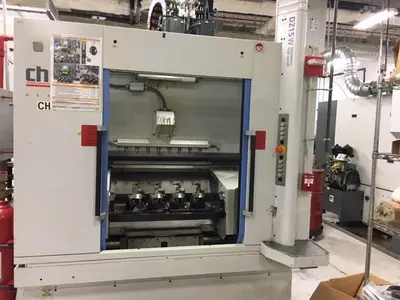

2014 CHIRON DZ-15K IWW MAGNUM Twin Spindle
Overview
Description
Siemens 840D, 25.16.14", Twin Spindles, 12000 RPM, HSK 63, (2) 24 Tools, 37 HP, Swivel Table, Fourth Axis, Hydraulics
Specifications
X-Axis: 24.8"
Y-Axis: 15.7"
Z-Axis: 14.17"
Spindle Speed: 12,000 RPM
Spindle Taper: HSK 63
Spindle Motor: 37.5 / 23
Tools: 24 (2)
Max Table Load: 551 lbs.
Max Tool Diameter: 5.51" / 3"
Max Tool Length: 11.8"
Max Tool Weight: 11 lbs.
Distance Between Spindles: 12.6"
Tool Change time (C - C): 2.4 Seconds
Equipped With
SIEMENS 840D CNC Control
10.4" Color TFT
Twin Spindles
Integrated Workpiece Swivel Table IWW 0/180 Degrees
ATU-200 Fourth Axis Rotary Table
(2) 24 Tool Magazines
265k NC Memory
20 GB Hard Disc Drive
USB Port
Ethernet Function
Mirror & Scaling Functions

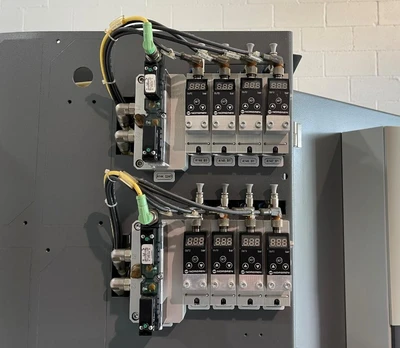

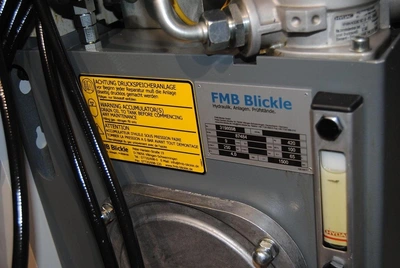

Hydraulic Fixture Clamping (3050 psi) with Dual Pressure Controls
Rigid Tapping
Three Color Signal Lamp
Coolant Wash Gun
Through Spindle Coolant (70 bar)
Work Space Washing
Automatic Loading Door
Glass Scales

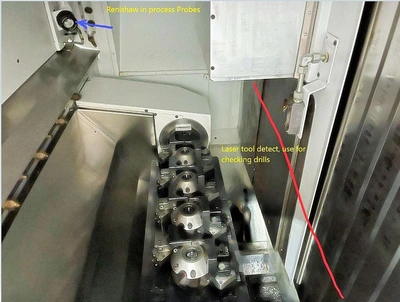

Renishaw Part Probe OMP 40-2LS
Chiron Laser Control Single F1000 for Tool Breakage Control
8x Parts Location Air Sensoring
Total Purchase Price $917,490
25,590 Power On Hours
17,622 Cutting Hours
