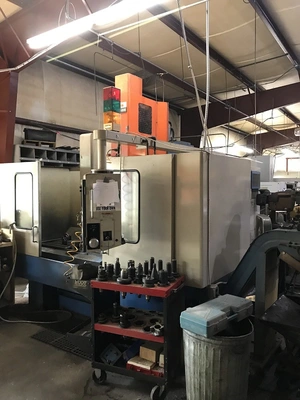

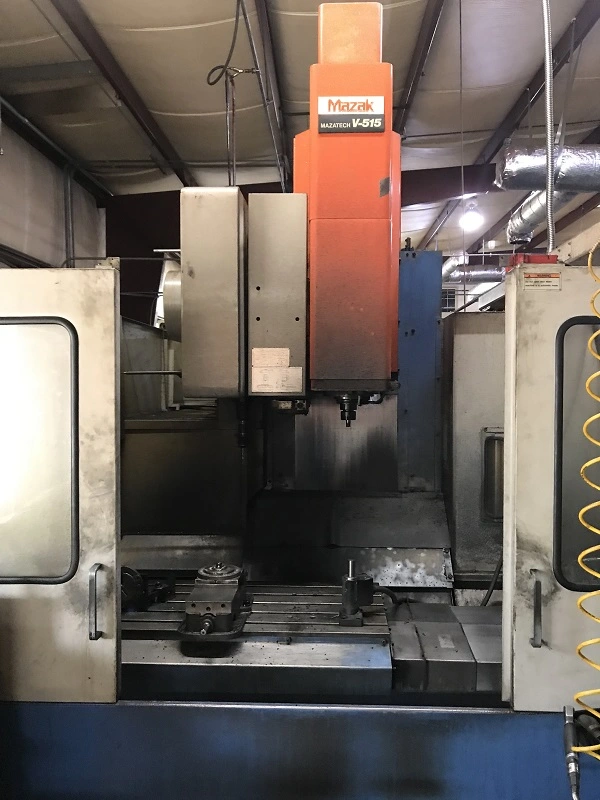

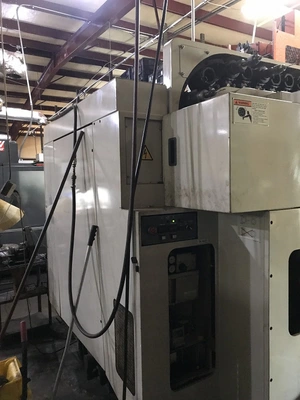

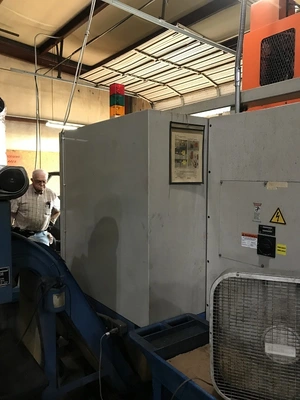

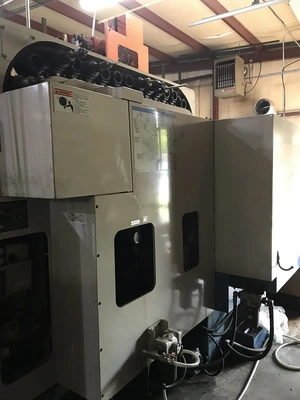

1993 MAZAK V-515 / 50

M-32B, 41.20.22", 6000 RPM, 30 Tools, 25 HP, Cat 50, Rigid Tapping, ATLM, Chip Conveyor

X-Axis: 41.33"
Y-Axis: 20.07"
Z-Axis: 22.04"
Table Size: 51.18" x 21.65"
Spindle Speed: 25 - 6000 RPM
Spindle Taper: CAT 50
Spindle Motor: 25 / 20 HP AC
Tools: 30
Table Load Capacity: 3300 lbs.
Rapid Traverse Rates (X & Y / Z): 1024 / 787 IPM
Max Tool Diameter: 4.92" / 10.23"
Max Tool Length: 15.74"
Max Tool Weight: 44.1 lbs.
Machine Dimensions (L x W x H): 135.6" x 128.9" x 119.9"
Machine Weight: 19,620 lbs.
Spindle Nose to Table Top: 7.87" - 29.92"
Spindle Torque: 544 ft. lbs.
Tool Change Time (T - T / C - C): 2.4 / 5.5 Seconds

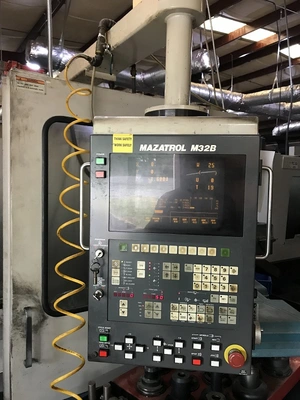

MAZATROL M-32B CNC CONTROL
12" Monochrome CRT
Conversational Programming
EIA/ISO Input Function
Graphic Display
Rigid Tapping
Helical Interpolation
Integral Spindle Motor with Two Electronic Gear Ranges
Auto Tool Length Measurement
Chip Conveyor (Right Side Exit)
Manufacture Date January 1993
