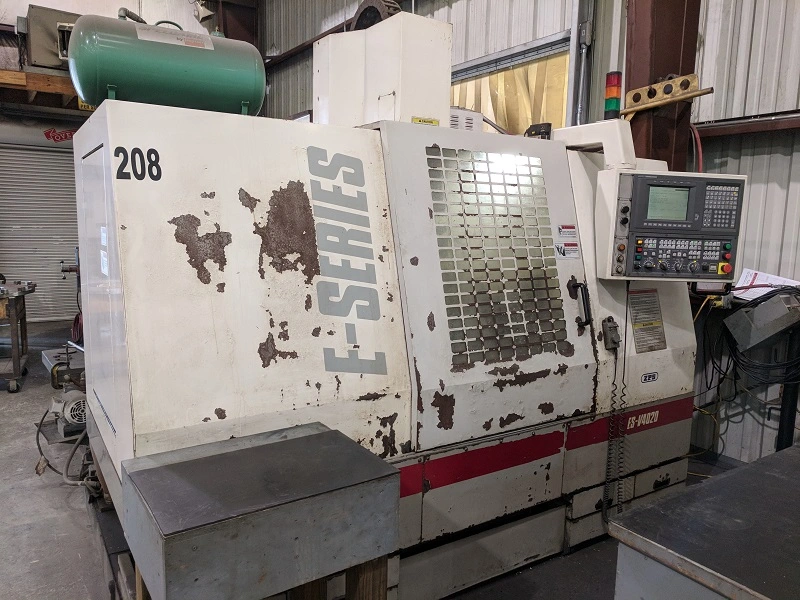

2000 OKUMA ESV-4020

41.21.21, OSP 10M, 8000 RPM, 15 HP, 20 Tools, TSC, Rigid

X-Axis: 40.1"
Y-Axis: 20.8"
Z-Axis: 20.1"
Table Size: 40" x 20"
Spindle Speed: 0 - 8000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Tools: 20
Max Table Weight: 1323 lbs.
Max Tool Length: 12"
Max Tool Weight: 13 lbs.
Machine Dimensions (L x W x H): 150″ x 92″ x 99″
Machine Weight: 11,000 lbs.
Spindle Nose to Table: 6.1" - 26.1"
Spindle Torque: 90 ft. lbs.

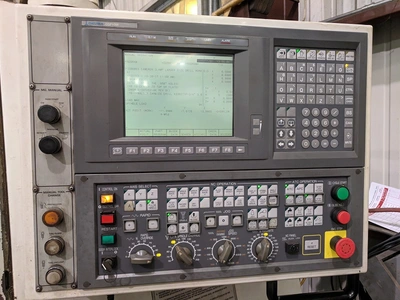

OSP-U10M CNC Control
20 Position Automatic Tool Changer
RS 232 Port

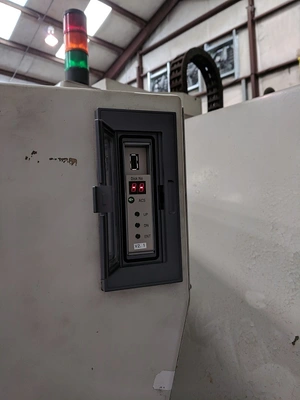

USB Drive
Rigid Tapping
Brush-type Servo Drive Motors(All Axes)
Telescopic Way Covers
Flood Coolant System
