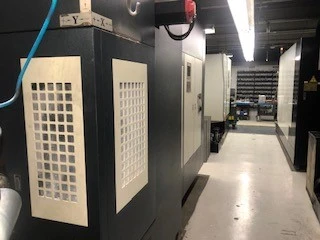

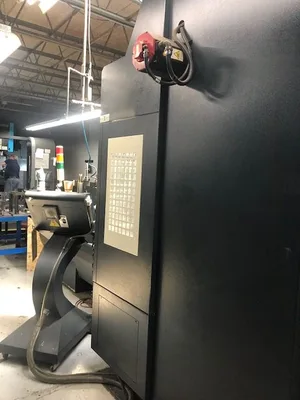

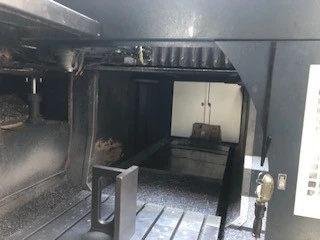

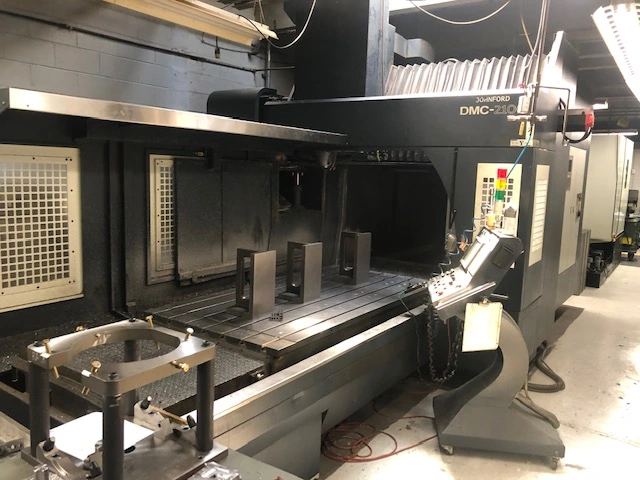

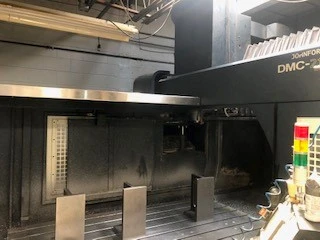

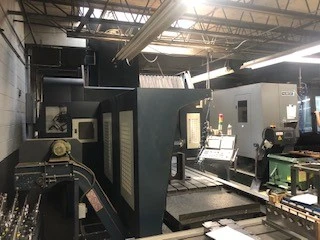

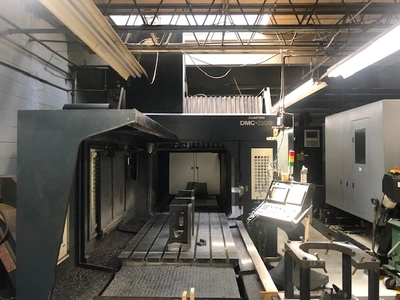

2003 JOHNFORD DMC-2100

Fanuc 18iM, 81.51.31", 8000 RPM, 24 Tools, 30 HP, Cat 40, Chip Conveyor, Dual Chip Augers

X-Axis: 80.71"
Y-Axis: 51.2"
Z-Axis: 31.5"
Table Size: 86.6" x 43.3"
Spindle Speed: 8000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 / 20 HP

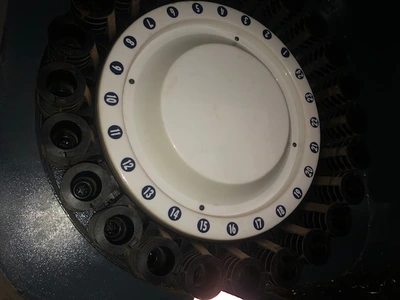

Tools: 24
Table Load Capacity: 13,200 lbs.
Rapid Traverse Rates: 590 IPM
Max Tool Diameter: 4"
Max Tool Length: 12.79"
Max Tool Weight: 22 lbs.
Machine Weight: 52,000 lbs.
Distance Between Columns: 51.18"
Spindle Nose to Table Top: 5.9" - 37.4"

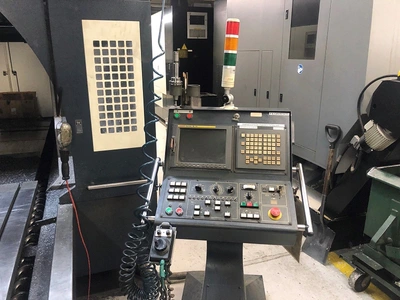

FANUC 18iM CNC Control
10.4" Color LCD
Chip Conveyor (Hinge-Type Left Front Exit)
Dual Chip Augers
Rigid Tapping
Remote Jog Handle
Three Color Tower Light
Heavy Duty Box Way Construction
Manufacture Date January 2003
24,726 Power On Time
743 Operating Time
7371 Cutting Time
