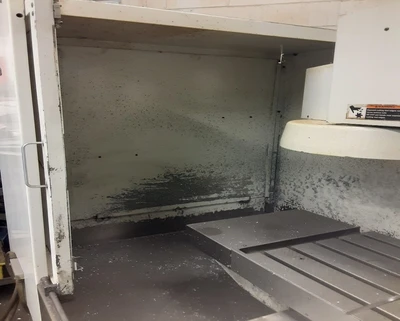

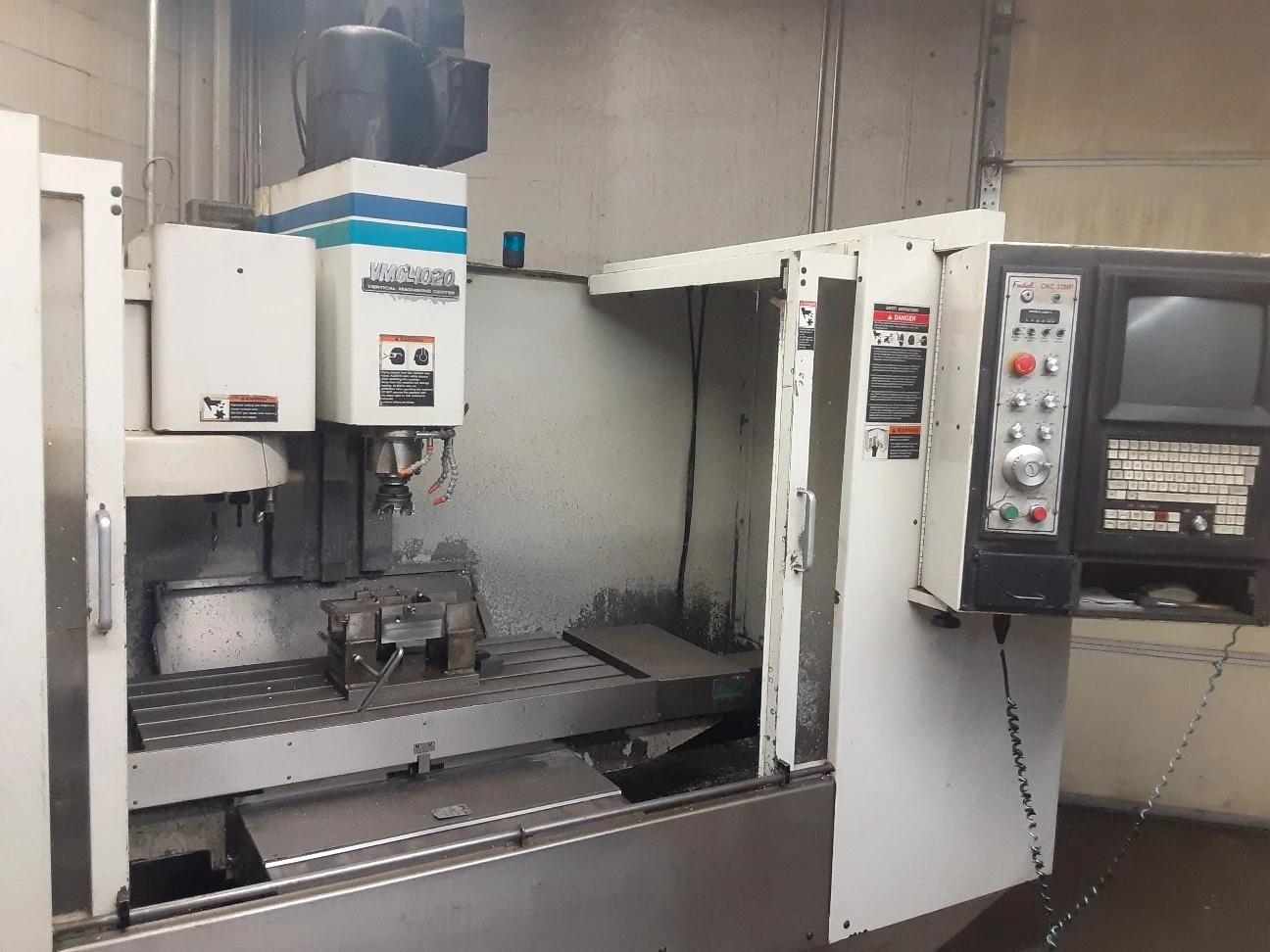

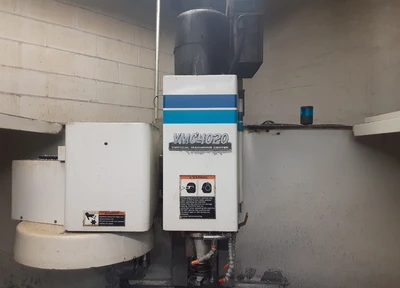

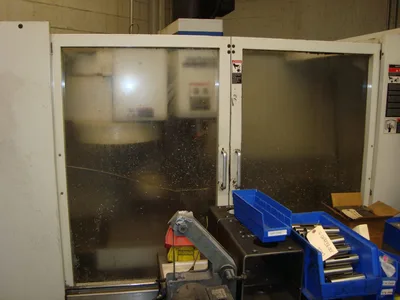

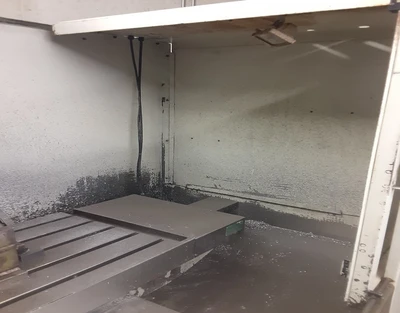

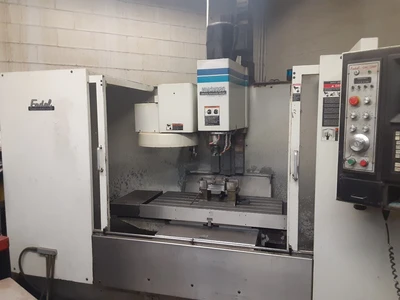

1998 FADAL VMC-4020HT

Fadal 32MP, 40.20.20", 10000 RPM, Cat 40, 15 HP, 21 Tools,  Box Way Construction

X-Axis: 40"
Y-Axis: 20"
Z-Axis Travel: 20"
Table Size: 47.94" x 20"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Tools: 21
Table Load Capacity: 1500 lbs.
Rapid Traverse Rates (X&Y/Z): 700 / 600 IPM
Rapid Traverse Rates: 400 IPM
Max Tool Diameter: 3" / 6"
Max Tool Length: 15"
Max Tool Weight: 15 lbs.
Machine Dimensions (L x W x H): 116" x 87" x 95"
Machine Weight: 10,000 lbs.
Spindle Nose to Table Top: 4" - 24"
Spindle Torque: 160 ft. lbs.

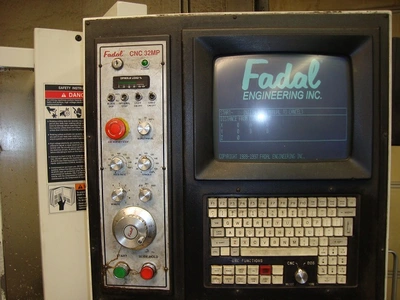

FADAL 32MP CNC Control
12" Monochrome CRT
Remote Jog Handle
High Torque Spindle Motor
Rigid Tapping
Heavy Duty Box Way Construction
