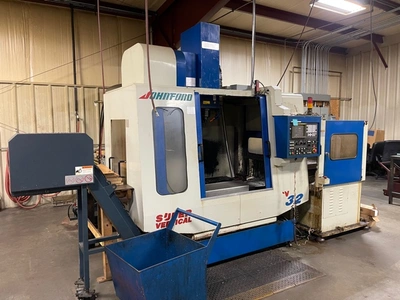

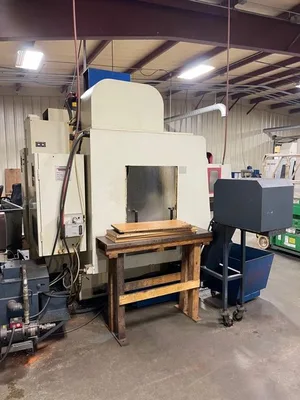

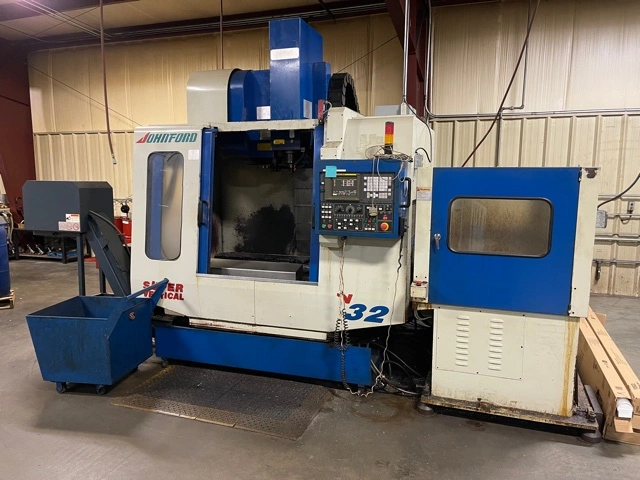

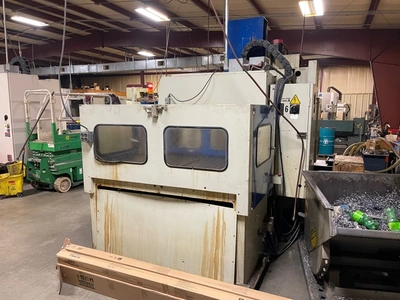

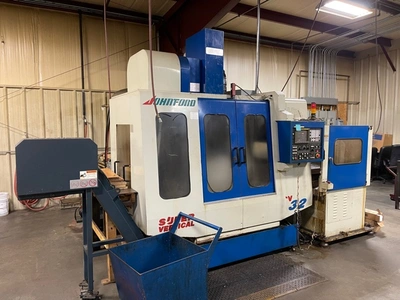

2000 JOHNFORD SV-32-APC

Fanuc 18M, 31.20.24", 8000 RPM, 24 SMTC, 15 HP, Cat 40, Pallet Changer, Chip Conveyor

X-Axis: 31.5"
Y-Axis: 19.7"
Z-Axis: 24"
Table Size: 38" x 17.7"
Spindle Speed: 8000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Tools: 24
Table Load Capacity: 880 lbs.
Rapid Traverse Rates (X & Y / Z): 1181 / 787 IPM
Max Tool Diameter: 4"
Max Tool Length: 12"
Max Tool Weight: 22 lbs.
Machine Dimensions (L x W x H): 137" x 89" x 106"
Machine Weight: 12,000 lbs.
Machine Weight: 12,100 lbs.
Spindle Nose To Table Top: 3.94" to 28"

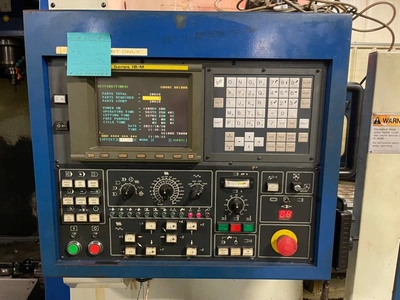

FANUC 18M CNC Control
10.4" Color LCD

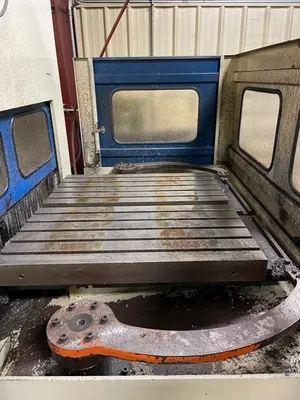

Auto Two Pallet Changer
24 Position Side Mount Tool Changer
Chip Conveyor (Hinge Type Side Exit)
Remote Jog Handle
Three Color Tower Light
Manufacture Date October 2000

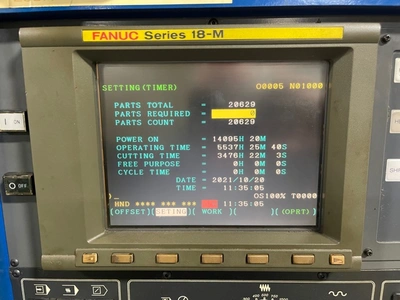

14,095 Power On Time
5537 Operating Time
3476 Cutting Time
