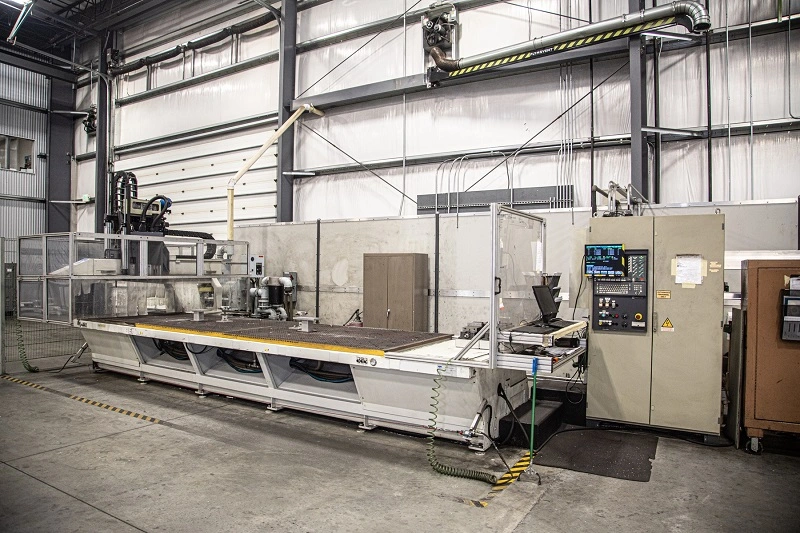

2003 CMS PENTAX MODEL 4.5/T-PX5+GF 5-Axis CNC Router

206" x 55.5" Table, 197.63.21" Travel, 24000 RPM, 13 HP, ER40 and ETS40 Collets, Vacuum Table, Transformer

X-Axis Travel: 197"
Y-Axis Travel: 63"
Z-Axis (Head Travel): 21"
B-Axis Travel: +/- 120 degrees
C-Axis Travel: +/- 270 degrees
Spindle Speed: 24,000 RPM
Spindle Motor: 13 HP
Tools: 20
Rapid Traverse Rate (X-Axis): 1080 in/min
Rapid Traverse Rate(Y-Axis): 2352 in/min
Rapid Traverse Rate(Z-Axis): 1572 in/min
Machine Dimensions (L x W x H): 246" x 126" x 109"
Machine Weight: 13,227 LBS
Table Dimensions: 55.5" x 206"

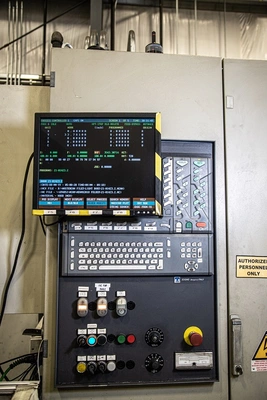

KEB COMBIVERT F5 CNC Control

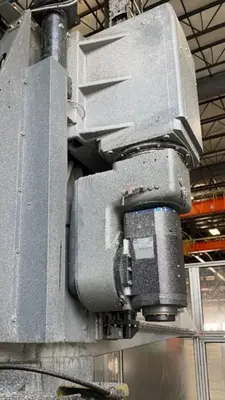

24,000 RPM HSK-63 Spindle
ETS40 and ER40 Collet System
Spindle Coolant System

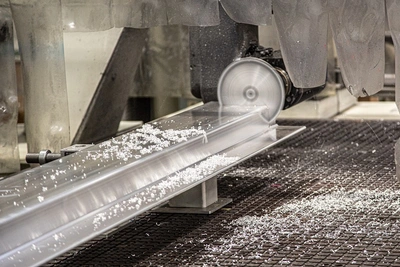

Chainsaw Attachment

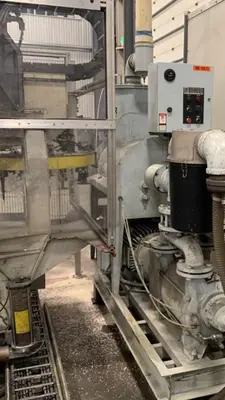

Dekker VMX0553KA1-00 Vacuum Pump (Built in 2006)
Air Vises
Vacuum Pods

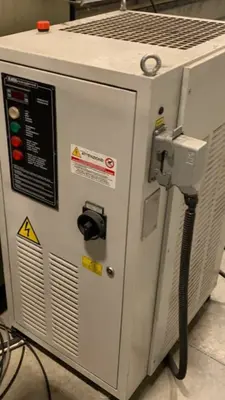

Transformer
