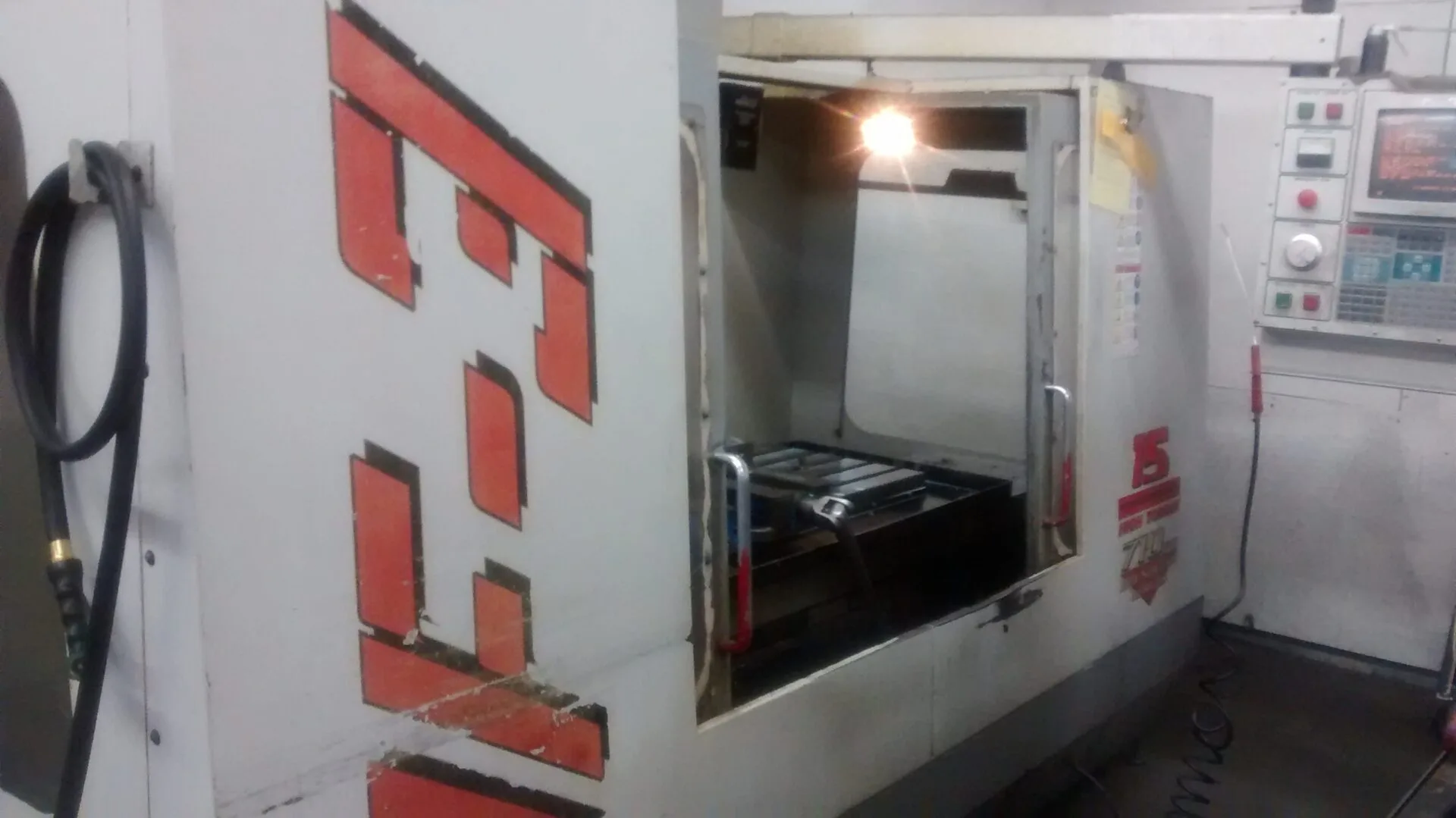

1998 HAAS VF-3

40.20.25", 7500 RPM, Cat 40, 15HP, 20 Tools, Coolant Nozzles, Rigid Tap, Chip Auger

X-Axis: 40"
Y-Axis: 20"
Z-Axis: 25"
Table Size: 48" x 18"
Spindle Speed: 0 - 7500 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Tools: 20
Table Load Capacity: 1500 lbs.
Rapid Traverse Rates: 710 IPM
Max Tool Diameter: 3.5"
Max Tool Length: 13"
Max Tool Weight: 12 lbs.
Machine Dimensions (L x W x H): 118" x 110" x 119.5"
Machine Weight: 12,500 lbs.
Spindle Nose to Table Top: 4" - 29"
Spindle Torque: 250 ft. lbs.
Tool Change Time (T - T / C - C): 4.2 / 4.5 Seconds

HAAS CNC CONTROL
12" Monochrome CRT
3.5" Floppy Disc Drive
20 Tools
Rigid Tapping
Chip Auger
Two Color Tower Light
AC Brushless Servos
Mfg Date May 1998
