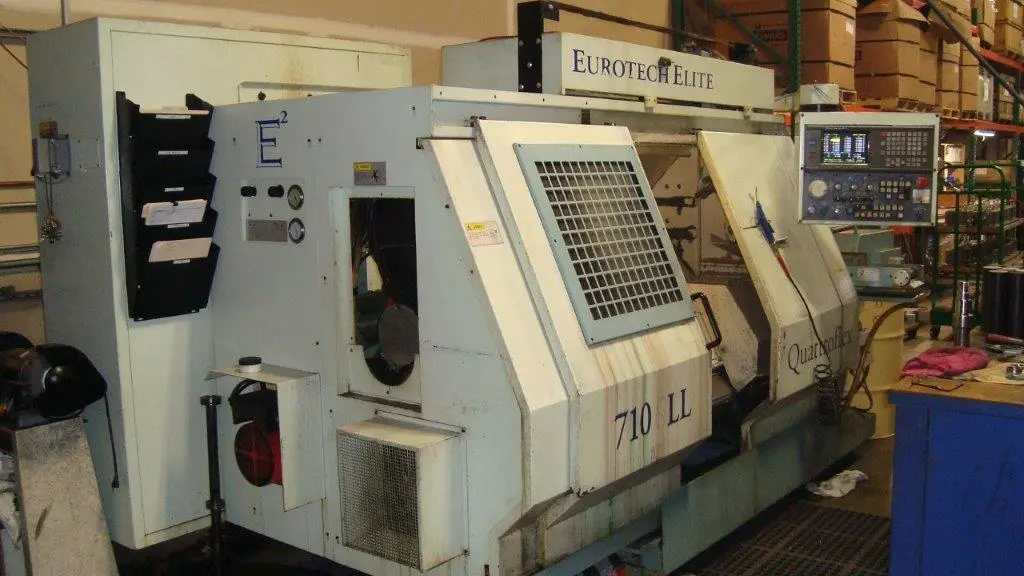

1997 EUROTECH 710SLL

Fanuc 18i-T, 2.75" Bar, 8.25" Chuck, Live Tooling, Sub Spindle, Collet Chucks, Chip

Chuck Size: 8.25"
Max Diameter Bar Capacity: 2.75"
Max Machining Length (Main / Sub): 11.81" / 7.87"
Spindle Motor: 35 / 30 HP
Spindle Speed: 100 - 5000 RPM
Spindle Nose: A2-6
Spindle Bore: 3.15"
Tools (Upper / Lower Turret): 12 / 8 (All Live)
Milling Motor: 5 HP
Milling Speed: 100 - 4000 RPM
Sub Spindle Bore: 2.2"
Sub Spindle Chuck: 6.5"
Sub Spindle Motor: 15 / 12 HP
Sub Spindle Nose: A2-5
Sub Spindle Speed: 100 - 5000 RPM
Sub Spindle Travel (X / Z): 4.72" / 16.53"
Rapid Traverse Rates (X / Z): 472 / 787 IPM
X-Axis Travel (Upper / Lower Turret): 6.5" / 6.22"
Z-Axis Travel (Upper / Lower): 14.96" / 9.45"
C-Axis Index (Main & Sub Spindle): .001 Degree
Machine Dimensions (L x W x H): 161.7" x 83.8" x 86.8"
Machine Weight: 15,000 lbs.
Distance Between Spindles: 27.55"
Max Turning Diameter (Main / Sub Spindle): 7.87" / 6.3"
Spindle Torque: 160 ft. lbs.

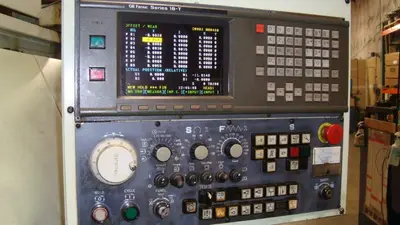

GE FANUC 18i-T CNC CONTROL
10.4" Color LCD
Upper & Lower Turrets with Main & Sub Spindle
C-Axis Milling Capability on Both Turrets
Programmable Sub Spindle Moves in X & Z-Axes
Tool Presetter (Removable)
8" & 6" Hydraulic Chucks for Main and Sub Spindle
Collet Chucks for Main (B60) and Sub Spindle
Chip Conveyor (Side Exit)
(3) OD Live Holders
(1) Face Live Holder
(11) Boring Bar Holders
(9) Turning Holders
(1) Double Turning Holder (Main & Sub Spindle)
(1) Facing Holder

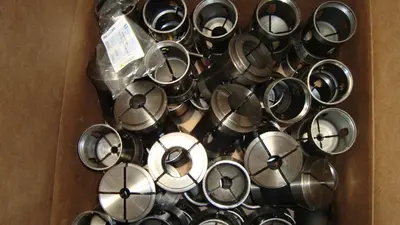

Assorted B60 Collets
