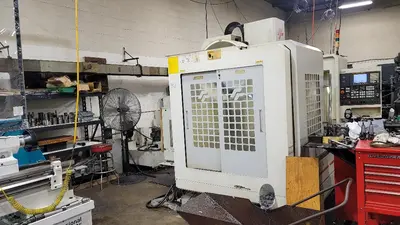

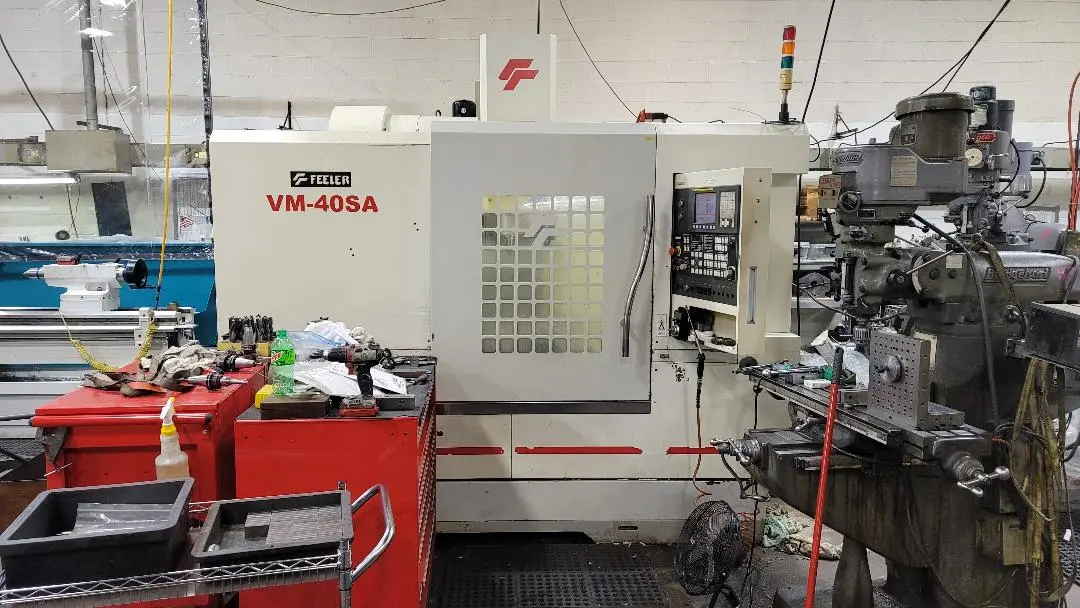

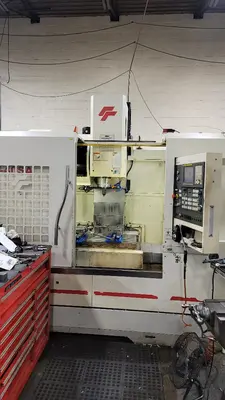

2006 FEELER VM-40SA

FANUC 0iMC, 24 Tools, #40, 10,000 RPM, 40x20 Travel, 25HP, Chip Auger

X-Axis Travel: 40"
Y-Axis Travel: 20.5"
Z-Axis Travel: 20"
Table Size: 45.3" x 20.5"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 25 HP
Tools: 24
Table Load Capacity: 1100 lbs.
Rapid Traverse Rates (X & Y / Z): 1417 / 1102 IPM
Machine Dimensions (L x W x H): 110" x 86" x 110"
Machine Weight: 13,680 LBS
Spindle Nose to Table Top: 3.15" - 23.03"

FANUC 0i-MC
24 Position Tool Magazine
Programmable Coolant

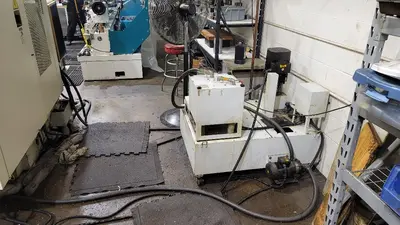

Chip Auger
Remote Jog Handle
Three Color Tower Light
31,714 Power On
3 Operating Time
6040 Operating Time
Manufacture Date April 2006
