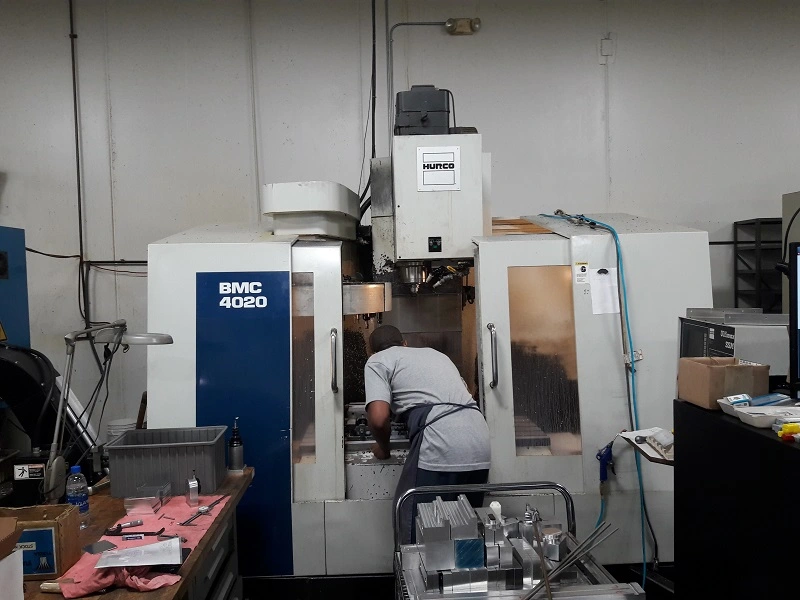

1997 HURCO BMC-4020HT

Ultimax III, 40.20.24", 8000 RPM, Cat 40, 20HP, 24 Tools, Rigid Tap, Chip Conveyor

X-Axis: 40"
Y-Axis: 20"
Z-Axis: 24"
Table Size: 47" x 19.7"
Spindle Speed: 8000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 / 15 HP
Tools: 24
Table Load Capacity: 1500 lbs.
Rapid Traverse Rates (X & Y / Z): 787 / 591 IPM
Max Tool Diameter: 3.9"
Max Tool Length: 12"
Max Tool Weight: 15 lbs.
Machine Dimensions (L x W x H): 136" x 91" x 101"
Machine Weight: 17,000 lbs.
Spindle Nose to Table Top: 6" - 30"

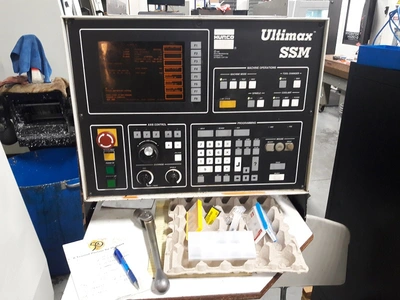

ULTIMAX SSM CNC CONTROL
Monochrome CRT
3.5" Floppy Disk
Remote Manual Pulse Generator
High Torque Spindle
Rigid Tap
Flood Coolant
Box Way Construction

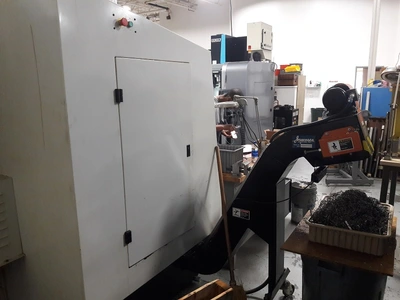

Chip Conveyor
Manufacture Date September 1997
