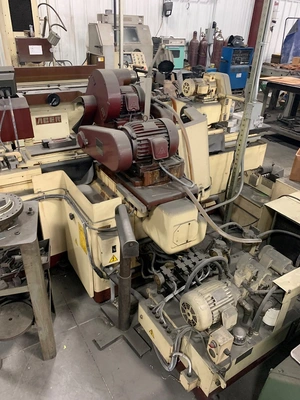

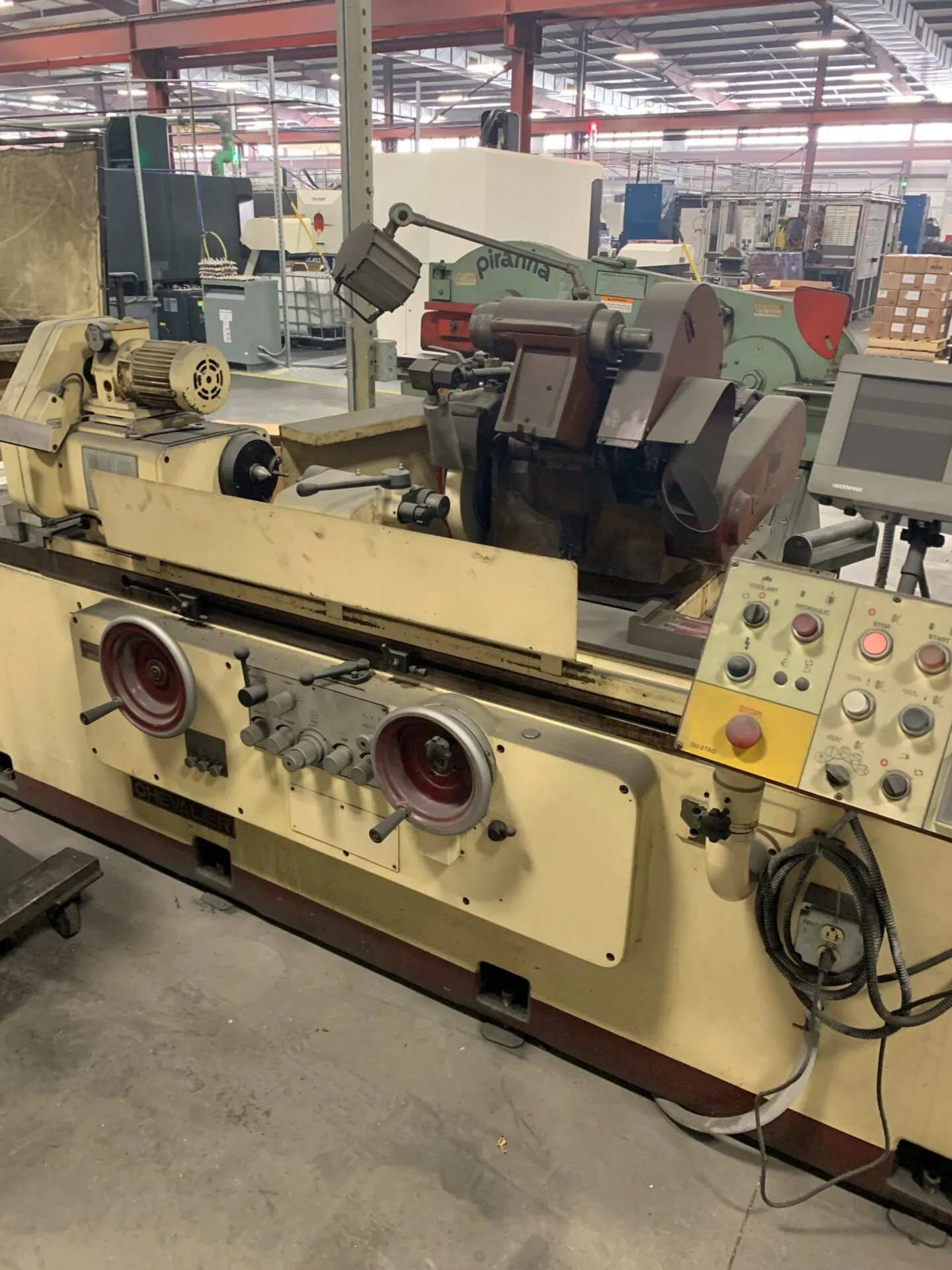

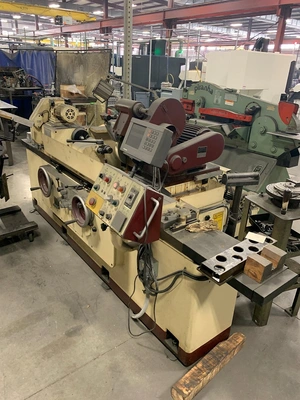

1995 CHEVALIER GU-1140A CYLINDRICAL GRINDER
Overview
Description
Heidenhain DRO, 39.4 Grinding Length, 9.84" Grinding Dia., 14" x 1.75" Wheel, 6.3" Wheel Travel, Tailstock, Coolant Filtration
Specifications
Finish Grinding: .00004 - .004 IPM
Grinding Wheel Speeds: 1730 RPM and 1917 RPM
Grinding Wheel: 14" x 1.75" x 5"
Infeed Travel: 7.87"
Live Center: No. 4 M.T.
Max Automatic Infeed Travel: .029"
Max Grinding Diameter: 9.84"
Max Grinding Length: 39.4"
Max Grinding Wheel Travel: 6.3"
Max Workpiece Weight: 700 LBS
Quill Travel: 1.18"
Rapid Advance and Retract Max Travel: 1.57"
Swivel Angle: 120 Degrees
Table Speed: 2 - 155 IPM
Table Swivel Angle (CCW/CW): 9 Degrees / 4 Degrees
Wheelhead Motor: 5 HP
Equipped With

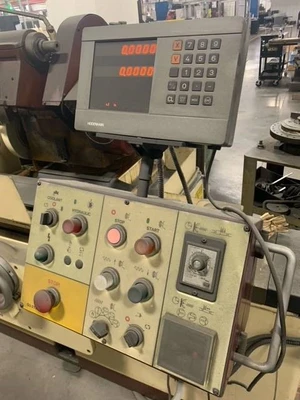

Heidenhain Digital Readout
Handwheel and Automatic Feed
Lever Operated Tailstock
Electric and Hydraulic Control Panel
Coolant System w/Magnetic Separators
Splash Guards
Automatic Lubricator
