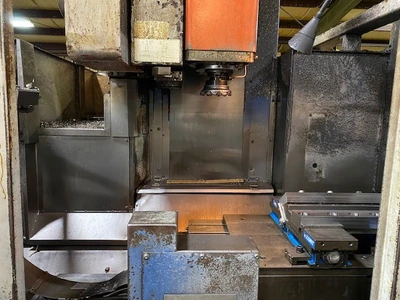

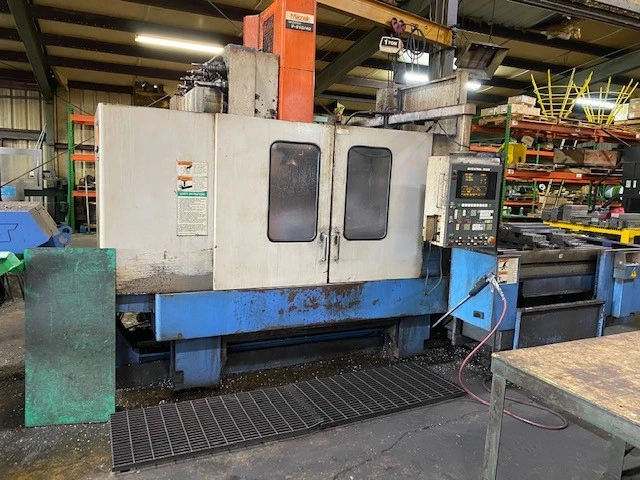

1993 MAZAK V-515/40

M32B, 41.20.22", 6000 RPM, Cat 40, 25HP, 30 Tools, Rigid Tap, Helical, Chip

X-Axis: 41.33"
Y-Axis: 20.07"
Z-Axis: 22.04"
Table Size: 51.18" x 21.65" (2)
Spindle Speed: 25 - 6000 RPM
Spindle Taper: CAT 40
Spindle Motor: 25 / 20 HP AC
Tools: 30
Table Load Capacity: 3300 lbs.
Rapid Traverse Rates (X & Y / Z): 1024 / 787 IPM
Max Tool Diameter: 4.92" / 10.23"
Max Tool Length: 15.74"
Max Tool Weight: 44.1 lbs.
Machine Dimensions (L x W x H): 135.6" x 128.9" x 119.9"
Machine Weight: 19,620 lbs.
Spindle Nose to Table Top: 7.87" - 29.92"
Spindle Torque: 544 ft. lbs.
Tool Change Time (T - T / C - C): 2.4 / 5.5 Seconds

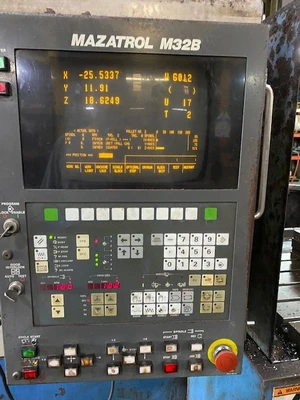

MAZATROL M32B CNC CONTROL
12" Monochrome CRT
Through Spindle Coolant
30 Position Side Mount Tool Changer

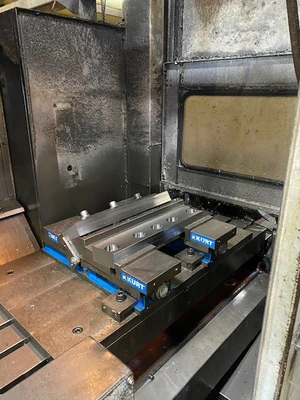

(2) Pallet Changer
Rigid Tapping
Helical Interpolation
Conversational Programming
Graphic Display

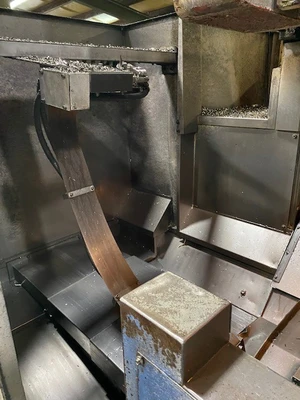

Jorgenson Chip Conveyor (Left Exit)
