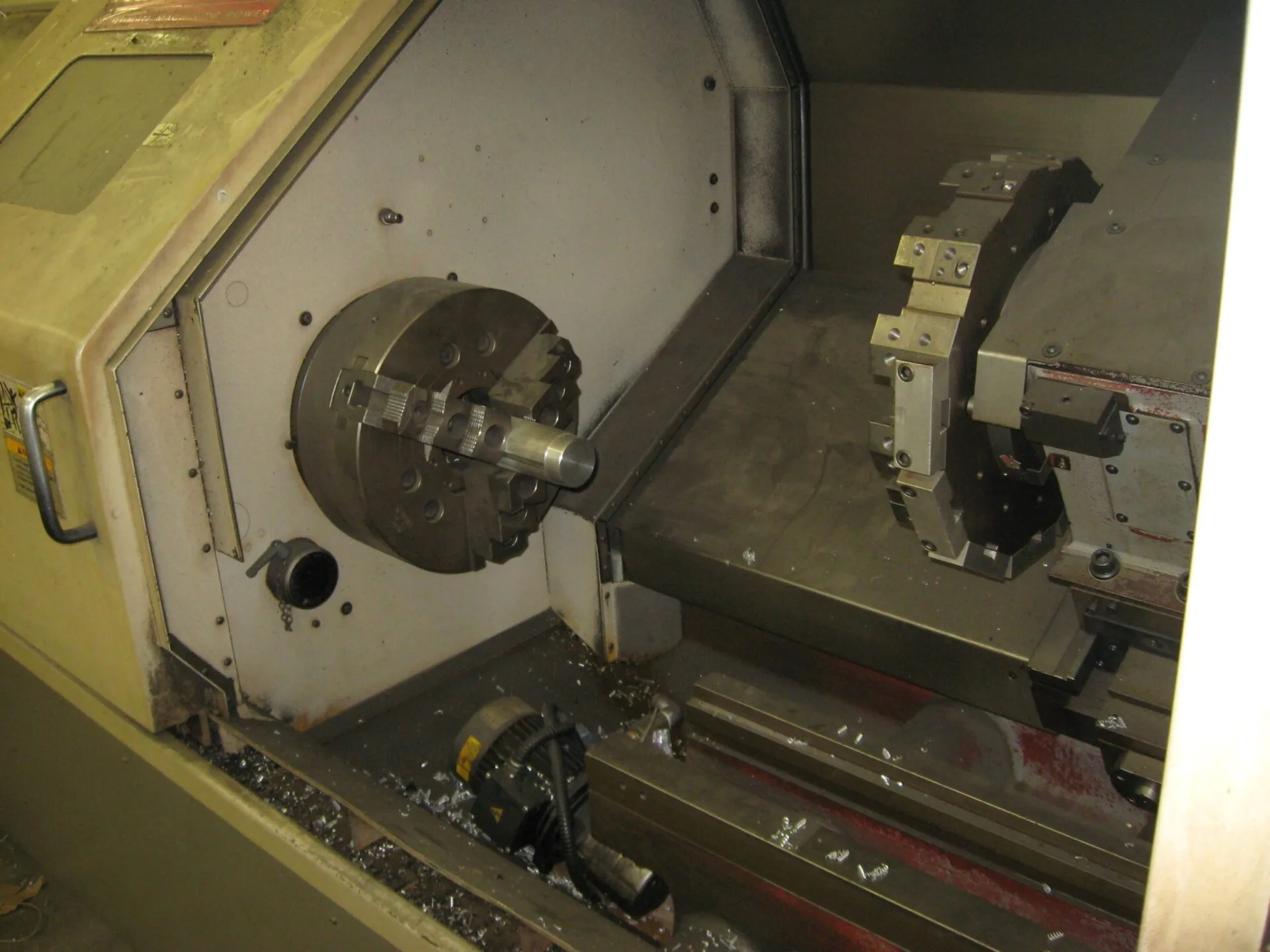

2006 YAMA SEIKI GA-3600L

FAN, 15" Chuck, 4" Bar, 48" Centers, Tailstock, Chip Conveyor

Chuck Size: 15"
Max Diameter Bar Capacity: 4.13"
Max Swing Over Bed: 23.6"
Rapid Traverse Rate (X / Z): 787 / 944 IPM
X-Axis Travel: 10.2"
Z-Axis Travel: 48.43"
Machine Weight: 16,000 lbs.
Max Turning Diameter: 19.7"

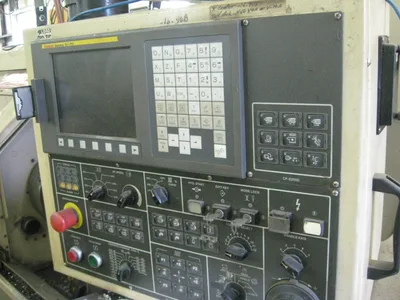

FANUC 0i-TC CNC Control
15 Inch Chuck
48 Inch Center Distance
Tailstock

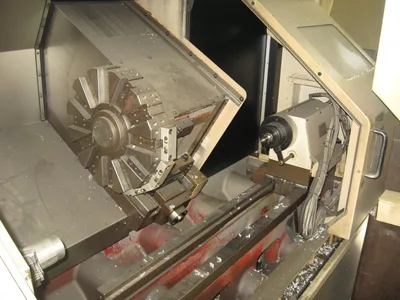

12 Position Turret
PC/MCIA Interface
Manufacture Date November 2006
