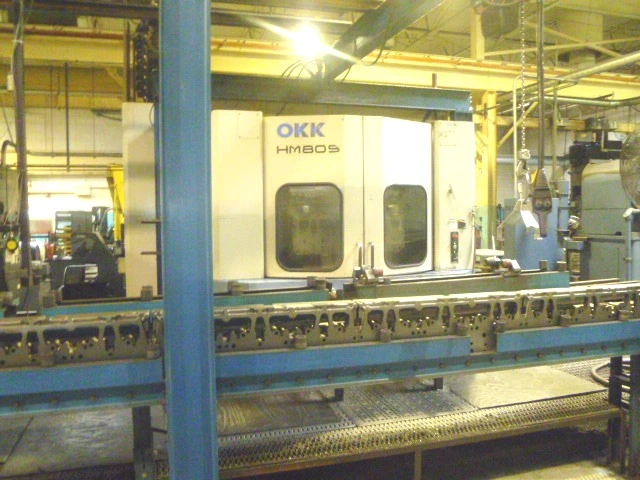

1999 OKK HM-80S (40 Tools)

Fanuc 16iM, 31.5" Plt, 39.33.32", Cat 50, 30 HP, 12000 RPM, 1 Degree, TSC 1000 psi, Chip Conveyor

Pallet Load Capacity: 2424 lbs.
Pallet Size: 31.5" (2)
X-Axis: 39.37"
Y-Axis: 33.46"
Z-Axis: 32.28"
Pallet Index: 1 Degree
Spindle Speed: 35 - 12,000
Spindle Taper: Cat 50
Spindle Motor: 40 / 33.5 HP
Spindle Center to Table Top: 1.2" - 34.6"
Spindle Nose to Table Center: 7.9" - 40.2"
Tools: 40
Max Tool Diameter: 4.72" / 9.45"
Max Tool Length: 19.69"
Max Tool Weight: 55 lbs.
Machine Dimensions (L x W x H): 180" x 136" x 130"
Machine Weight: 40,000
Spindle Torque: 310 ft. lbs.

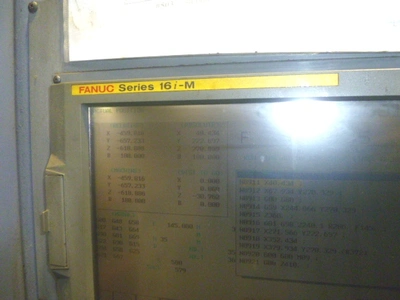

FANUC 16iM CNC CONTROL
10.4" Color LCD
PC/MCIA Interface
40 Tool Magazine
Coolant Thru Spindle (1000 psi)
Rigid Tapping
Bunri Chip Conveyor(Left Rear Exit)
Chip Auger
Remote Manual Pulse Generator
Spindle Chiller Unit
