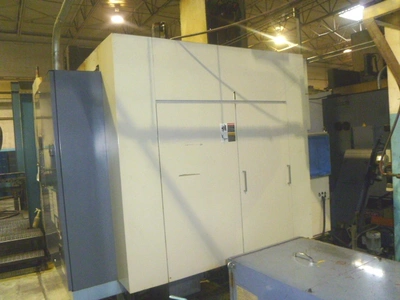

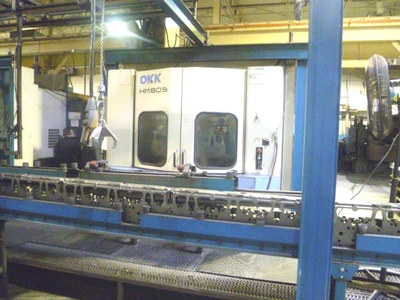

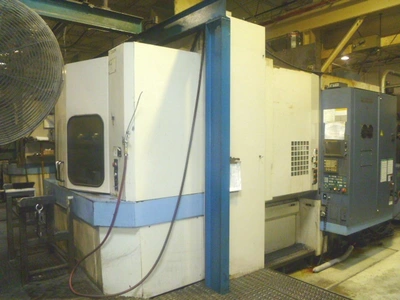

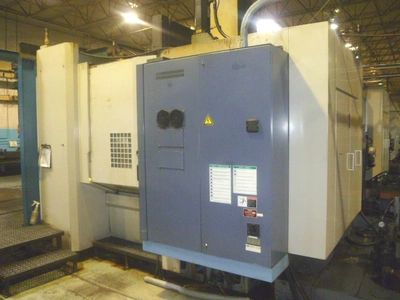

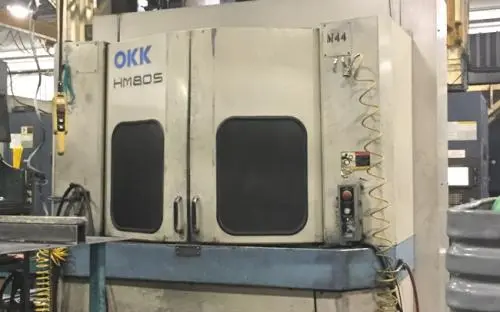

1999 OKK HM-80S (60 Tools)

Fanuc 16iM, 31.5" Plts, 39.33.32", 1 Deg, 12000 RPM, 30 HP, Cat 50, 60 Tools, TSC 1000 psi, Chip Conveyor

Pallet Change Time: 8.0 Seconds
Pallet Load Capacity: 2424 lbs.
Pallet Size: 31.5" (2)
X-Axis: 39.37"
Y-Axis: 33.46"
Z-Axis: 32.29"
Pallet Index: 1 Degree
Spindle Speed: 12,000 RPM
Spindle Taper: Cat 50
Spindle Motor: 30 / 25 HP AC
Spindle Center to Table Top: 1.18" - 34.65"
Spindle Nose to Table Center: 7.87" - 40.16"
Tools: 60
Tool Change Time (T - T / C - C): 2.0 / 5.5 Seconds
Max Tool Diameter: 4.53" / 9.06"
Max Tool Length: 17.72"
Max Tool Weight: 55.12 lbs.
Machine Dimensions (L x W x H): 204.9" x 129.9" x 133"
Machine Weight: 39,000
Spindle Torque: 310 ft. lbs.

FANUC 16iM CNC CONTROL
10.4" Color LCD
PC/MCIA Interface
60 Tool Magazine
Coolant Thru Spindle (1000 psi)
Rigid Tapping

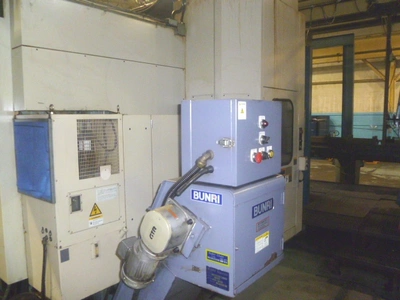

Bunri Chip Conveyor(Left Rear Exit)
Chip Auger
Remote Manual Pulse Generator
Spindle Chiller Unit
