40 Inch ATLAS PA-40-3 Hydraulic 3-Jaw & Independent 4-Jaw Chuck (New in Crate)

40" Combination Chuck Hydraulic 3-Jaw and Independent 4-Jaw Chuck, Extremely Unique and Versatile

Closed Center Wedge Style Hydraulic 3-Jaw Chuck
Independent 4-Jaw Chuck
380 mm Flat Spindle Nose Mount
39.37" Max Grip Diameter
11.42" Min Grip Diameter
1.181" Diameter Jaw Stroke
2.244" Diameter Sleeve Stroke
89,900 ft. lbs. Clamping Force
40,450 ft. lbs. Drawbar Force
500 RPM Max Spindle Speed
1350 lbs. Chuck Weight
Manufacture Date 2010

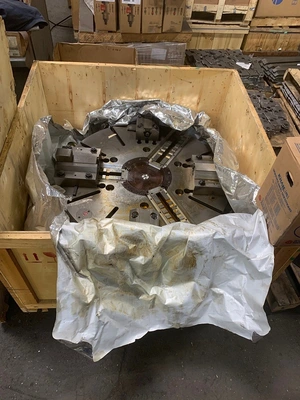

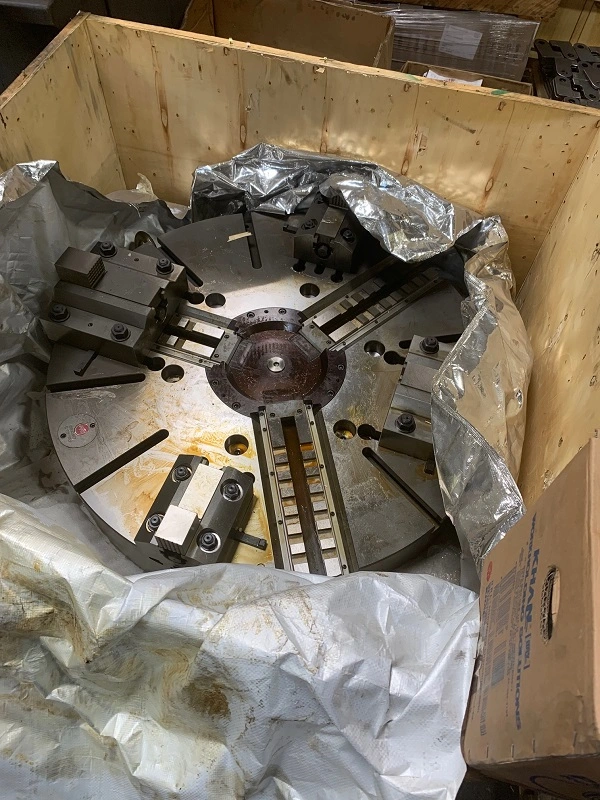

Never Been Used, Still Brand New in Crate
