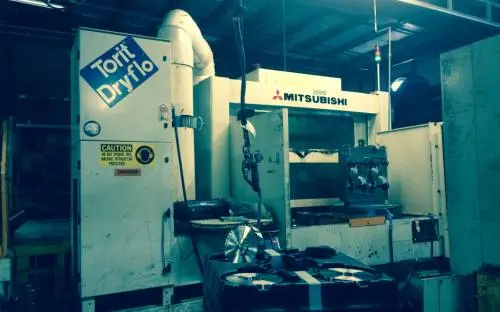

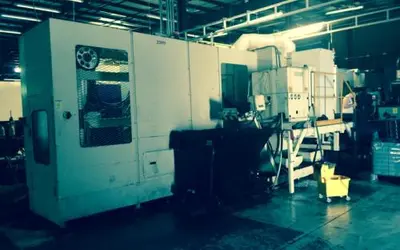

1996 MITSUBISHI MH-60

Fanuc 16M, 24.8" Plts, 39.31.31", 4000 RPM, 25HP, 90 Tools, CTS, Chip

Pallet Size: 24.8" (2)
X-Axis: 39"
Y-Axis: 31"
Z-Axis: 31"
Pallet Index: 1 Degree
Spindle Speed: 4000 RPM
Spindle Taper: #50
Spindle Motor: 25 / 20 HP
Spindle Nose to Table Center: 5.9" - 37.4"
Tools: 90
Rapid Traverse Rates (X, Y & Z): 2362 IPM
Max Tool Diameter: 4.9" / 9.4"
Max Tool Length: 11.8"
Max Tool Weight: 33 lbs.
Machine Weight: 32,000

FANUC 16M CNC CONTROL
10.4" Color CRT
90 Tool Magazine
Coolant Thru Spindle (300 psi)
Chip Conveyor (Left Side Exit)
(2) Machines Available
