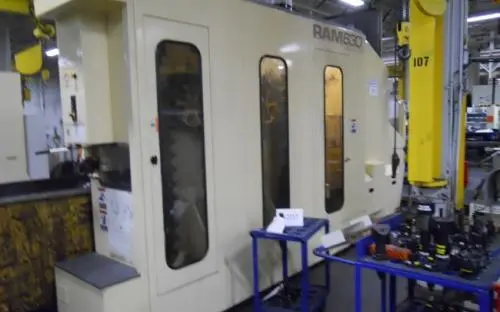

1997 GIDDINGS & LEWIS RAM 630

Numeripath 8000H, 24.8" Plt, 35.31.29", Fourth Axis, 120 Tools, CTS, Probe, ATLM

Pallet Change Time: 16 Seconds
Pallet Load Capacity: 2640 lbs.
Pallet Size: 24.8" (2)
X-Axis: 35.4"
Y-Axis: 31.5"
Z-Axis: 29.5"
Pallet Index: .001 Degrees
Spindle Speed: 10 - 7000 RPM
Spindle Taper: #50
Spindle Motor: 38.2 / 30.8 HP
Spindle Center to Table Top: 2" - 33.5"
Spindle Nose to Table Center: 3.9" - 33.4"
Tools: 120
Rapid Traverse Rates (X, Y & Z): 2362 IPM
Tool Change Time (T - T / C - C): 3.5 / 7 Seconds
Max Tool Diameter: 4.9" / 10.8"
Max Tool Length: 17.7"
Max Tool Weight: 55 lbs.
Max Workpiece Dia / Height: 31.5" / 37.4"
Machine Dimensions (L x W x H): 189" x 106.3" x 136"
Machine Weight: 40,000

NUMERIPATH 8000H CNC CONTROL
14" Color CRT
Fourth Axis Rotary Table
Coolant Thru Spindle Dual Pressure (250 / 800 psi)
120 Tool Magazine
Renishaw Touch Probe
Auto Tool Length Measurement
Remote Manual Pulse Generator
Two Gear Range Headstock
Mfg Date May 1997
