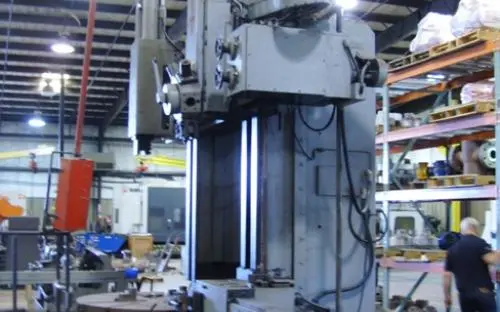

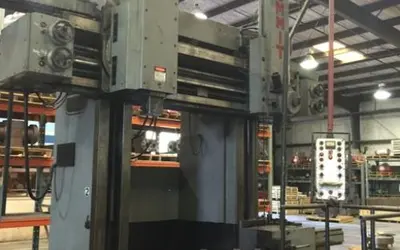

1959 SUMMIT 59 VTL"

Allen Bradley Control, (5) Position Turret Side Head, 59" Manual 4-Jaw Chuck

Rapid Traverse Motor: 3 HP
Machine Dimensions (L x W): 93.5" x 84.7"
Horizontal Travel Side Head Ram: 26.25"
Max Height Under Cross Rail: 47.25"
Max Machining Dia. with Side Head: 65"
Max Machining Dia. with Vertical Head: 70"
Motor for Rapid: 3 HP
Swiveling of Vertical Head (both directions): 35 Degrees L & R
Table Diameter: 59"
Travel of Pentagonal Turret Slide: 29.5"
Travel of Vertical Head Slide: 33.5"
Vertical Travel of Side Head on Column: 45"

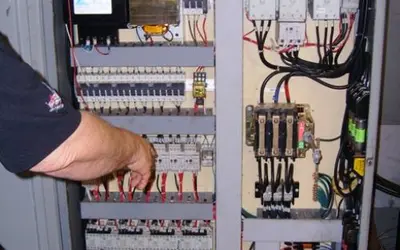

ALLEN BRADLEY CONTROL
(5) Position Turret Side Head
59" Manual 4-Jaw Chuck
