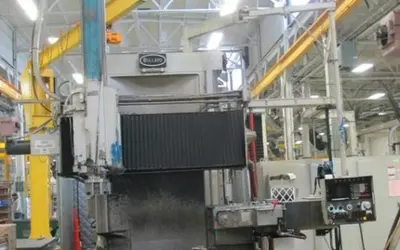

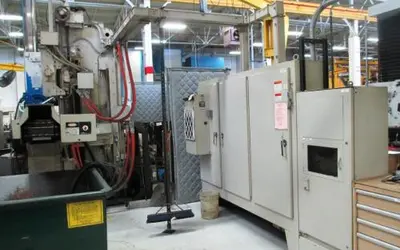

1968 BULLARD 46 CNC VTL"

Fanuc 6T, 46" Table Dia., 49" Swing, 64" Max Dia, 60" Max Height, 50HP, Chip

Max Swing: 56"
Tools: 5
Rapid Traverse Rate: 108 IPM
X-Axis Travel (Ram): 28"
Z-Axis Travel (Rail): 60"
Machine Dimensions: 122" x 166"
Machine Weight: 46,000
Max Turning Diameter: 64"
Max Turning Height: 60"
Table Diameter: 46"
Table Motor: 60 HP DC
Table Speeds: 28 - 350 RPM

FANUC 6TB CNC CONTROL
9" Monochrome CRT
46" Hydraulic 3-Jaw Chuck
Ram Head with Indexable 8 Station Turret
Side Head with Indexable 4 Station Turret
Chip Conveyor (Right Side Exit)
4-Axis Simultaneous Machining
