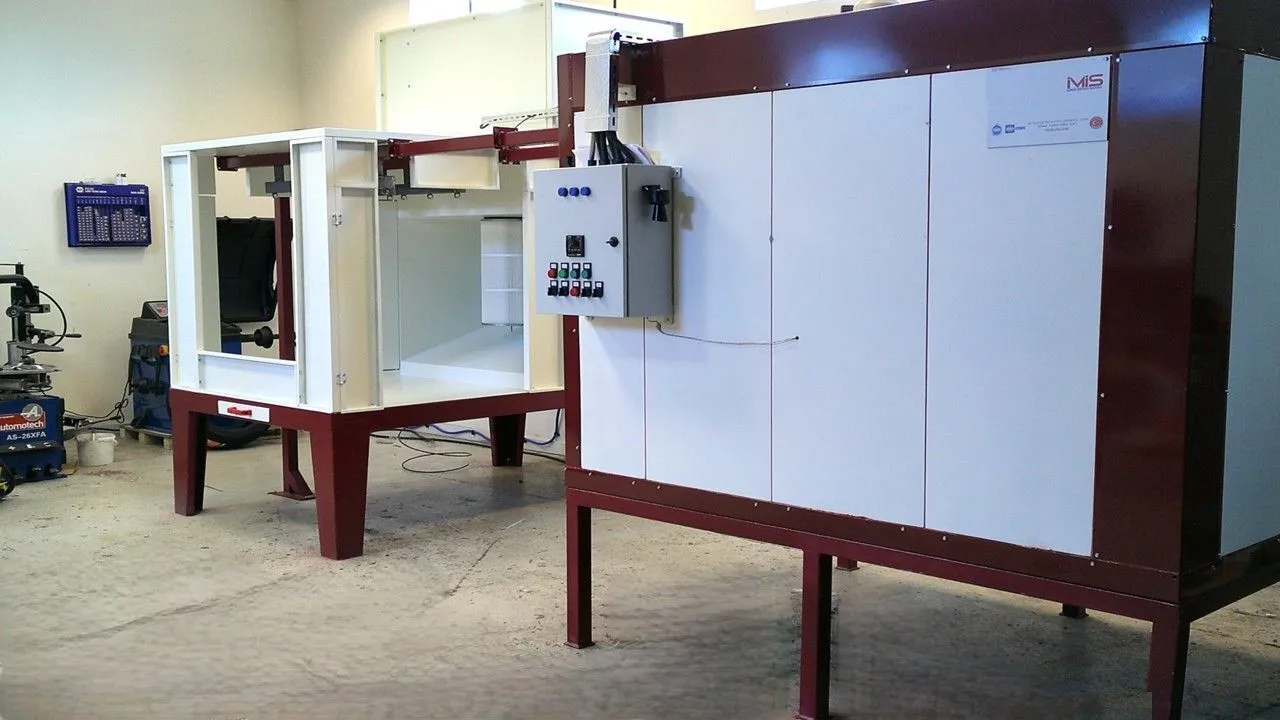

NEW IMIS LTD CM1500

- Complete system: powder coating booth, curing oven, and overhead conveyor
- Optimised for alloy wheel coating and refurbishment workflows
- Uniform heat distribution for consistent curing and durable finishes
- Space-saving design ideal for small to medium workshops
- Energy-efficient operation to reduce running costs
- Built for reliable, high-throughput daily use
- Enables in-house coating to improve quality control and profitability

Technical data
Energy requirements
Power consumption : 18 - 20 kW/h
Air requirements : 6-10 bar pressure 3.0 m3/min
Scope of Quotation
Powder coating booth : Booth with 2 Filters – 1 pc
Curing oven : Box type oven with 2 rails – 1,5 m

Booth external dimensions:
Width : 1450 mm
Height : 3000 mm
Depth : 2000 mm
Material : powder coated steel sheet
Filter : 2 pcs, 325*660 – GM TECH
BRAND FILTERS
Suction fan : 3 kW-1 PCS
Lighting : (1*40W)
Pulse valve : 2 pcs

CURING OVEN (BOX TYPE OVEN)
Internal dimensions:
Width : 1200 mm
Height : 1000 mm
Length : 1500 mm

Technical specifications
Oven type : Box oven with1 swing door
Oven temperature : Max. 210ºC
Heating type : Indirect heating with thermoblock and closed air circulation
Heating capacity : 1 X 12 kW
Energy source : Electricity
Circulation fan : 1 pcs x 3000 m³/h
Motors of circulation fans : 1 pcs x 1500 rev/min, 0.55 KW (directly coupled type)
Insulation : 150 mm mineral wool
