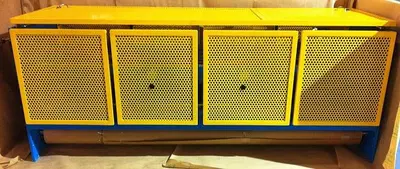

Cold Perforating Unit 1600mm

Cold perforating unit 1600mm working width, designed for paper, flexible films, and foils and to be web driven. This machine bolts in-line with existing equipment.
This unit can be used with shovel pins for flap perforation or micro perforating tooling

Quantity Description

 The Cold perforating unit includes the following:
a) Qty: 1           Base machine frame Aluminum / Steel, 1600mm working width
b) Qty: 1            3 position carousel unit for perforation roll
c) Qty: 1             Complete pneumatics kit for actuation and pressure roll control
d) Qty: 1           Center shaft for pinned perforating ring
e) Qty: 1            Pressure rubber grooved anvil roller with bearings to suit
f) Qty: 1             Set of perforated steel guards
g) Qty: 1           Controls, buttons and other parameters as described below
h) Qty: 1            Powder coated blue frame and safety yellow guards.
i)  Qty: 1           Include 4 eyebolts for lifting unit


Technical Specifications:
** Maximum speed: 200m/min as standard, 600mpm with dynamically balanced option.
** These technical specifications represent typical capacities. These specifications may vary depending on the type of web processed, pin population and perforation pattern that is required for each application.

Machine Approximate Dimensions:
Depth: 750mm
Length: 1600mm (working width), + 500mm total of 2100mm
Height: 750mm
Weight: 600Kg

Component Details:

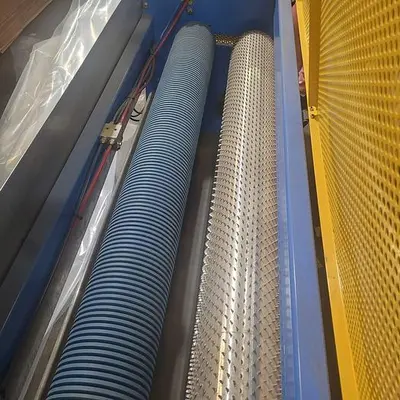

Shafts: 1 Steel, 110.00mm OD for SOA standard pinned sleeves
Grooved anvil roll: 1 Anvil roller with urethane covered sleeves, grooved 12.70mm on center
Brush roller: Ultra tight wind specifically designed for cold perforation applications
Mounting: Perforator simply bolts onto your existing machinery.
Penetration depth: The perforator comes standard with manual penetration controls.
