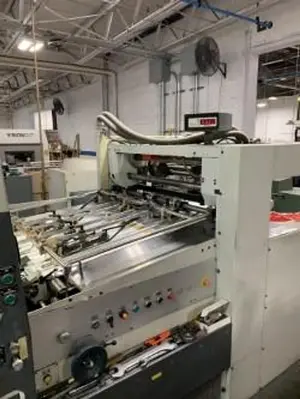

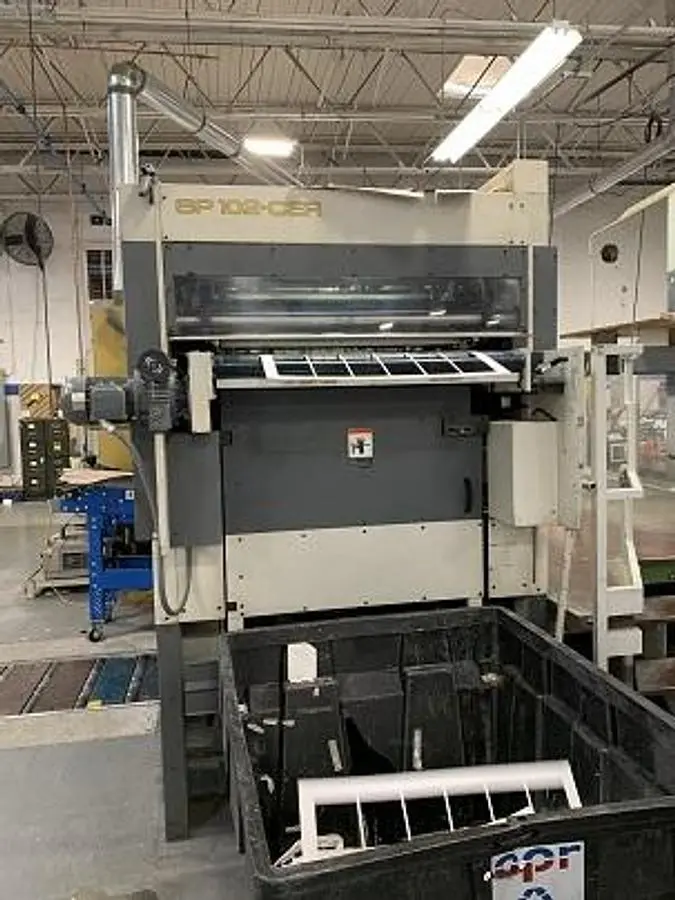

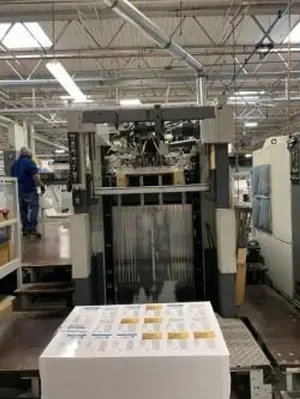

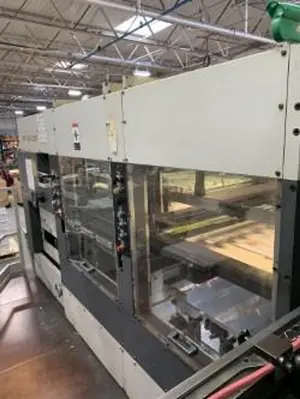

1992 Bobst SP 102 CER Diecutter / Blanker

1992 Bobst SP 102 CER diecutter / blanker
Maximum sheet size : 40 1/8” x 28 3/8” ( 1020 mm x 720 mm )
Minimum sheet size : 15 ¾” x 13 ¾” ( 400 mm x 350 mm)
Cutting force : 250 ton metric cutting pressure (275 US tons)
Maximum production rate : 8,000 sheets per hour
Processed materials : .004” to .160”

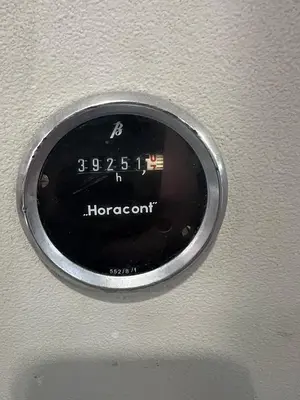

Machine operating hours : Only approx. 40,000 hours (24 hours/week)
Equipment details :
• 410 mm (16”) machine elevation
• Non-stop pallet feeder
• One (1) O.S. (operator side) pull guide
• Centerline system
• One (1) cutting chase
• Five (5) cutting plates
• Lower supporting plate
• One (1) set of upper, central and lower stripping frames
• One (1) set of upper stripping equipment including pin holders and pins
• One (1) set of lower stripping equipment including pin holders and pins
• One (1) set of upper and lower blanking frames with universal tool frame

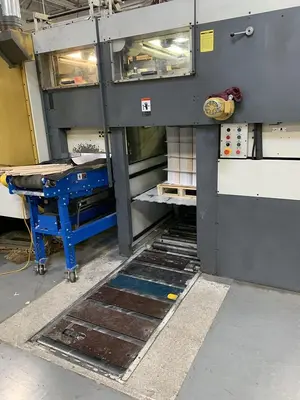

• Non-stop delivery
• Automatic pallet changing system
• Oil conditioner
• Operator platform

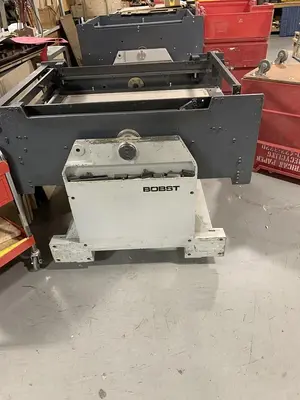

• One (1) stripper pre-setting table

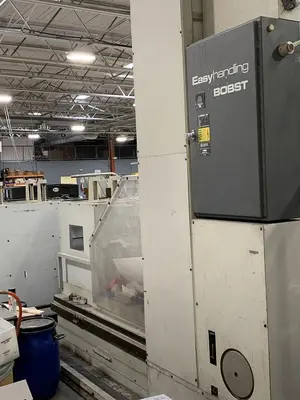

• Bobst Easyhandling system
• One (1) tooling storage cart
• All Bobst manuals
Machine maintained regularly. New AC drive  motor installed in 2018 (value $48,376). Machine is
under power and can be inspected upon request
