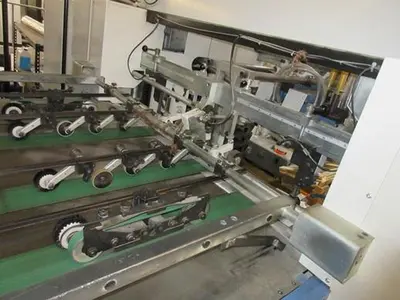

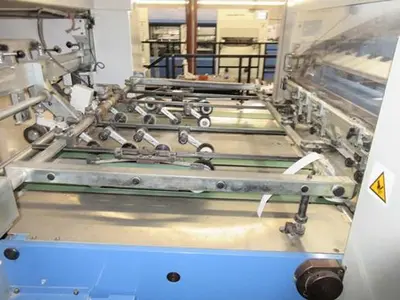

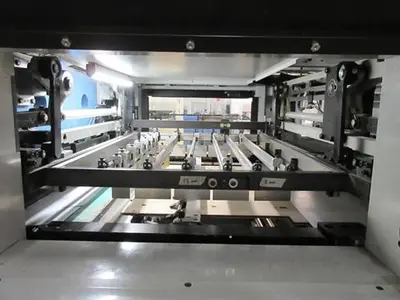

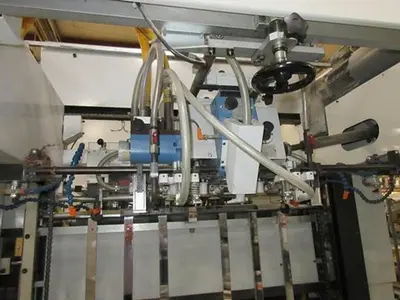

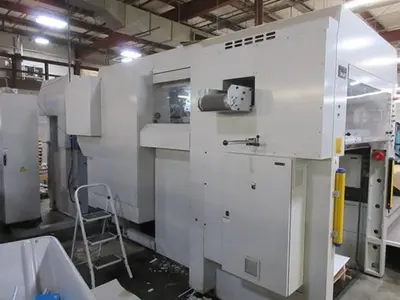

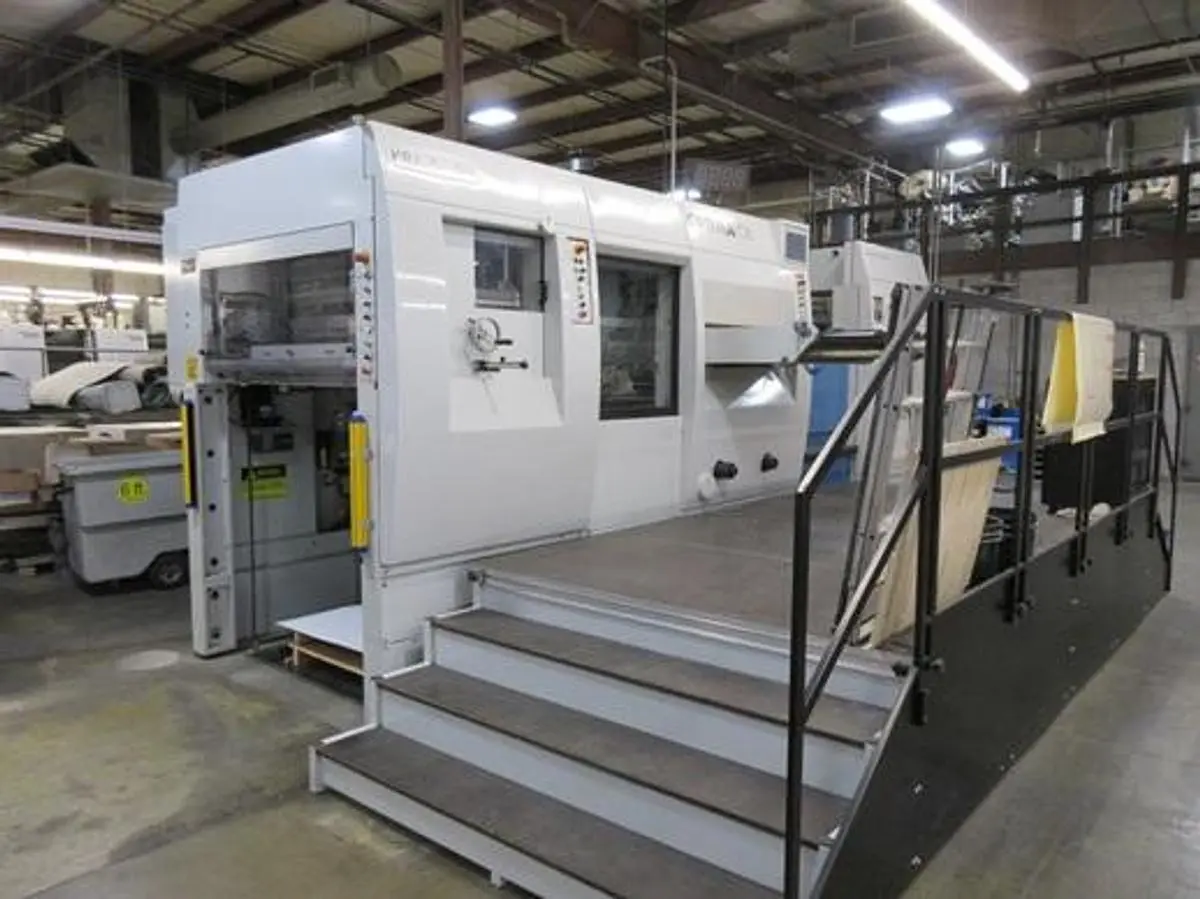

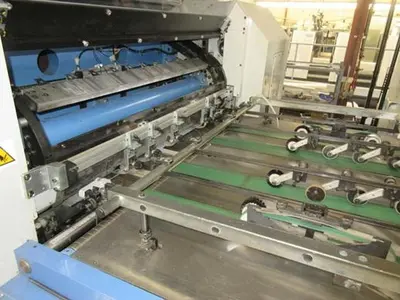

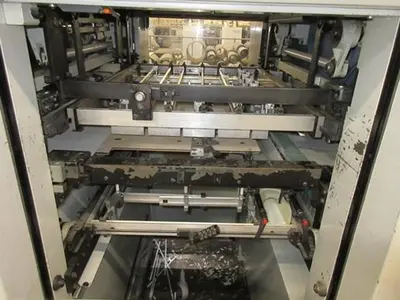

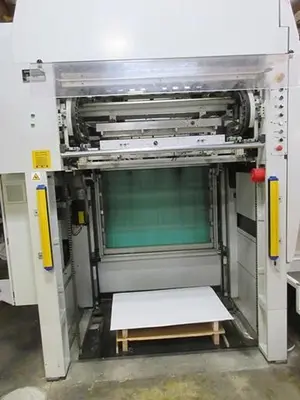

2018 IBERICA OPTIMA 106 DIECUTTER

2018 IBERICA OPTIMA 106 DIECUTTER
Maximum sheet size : Minimum sheet size : Maximum cutting size : Cutting force : Convertible stock : Maximum production rate : Machine hours : Machine voltage : 1060 x 750 mm (41 ¾” x 29 1/2”)
400 x 350 mm (15 ¾” x 13 ¾”)
1060 x 740 mm (41 ¾” x 29 1/8”)
300 metric tons (330 US tons)
90 g/m2 up to 3 mm
8,500 sheets per hour
Only 3,789 hours
3x 400 V / 53 Amp. / 10 kVa
Equipment details :
• Elevated machine (400 mm)

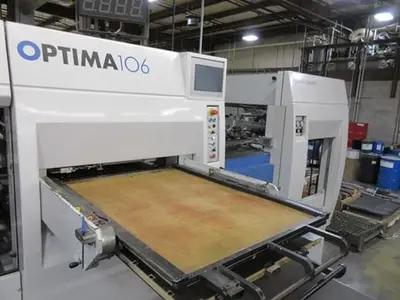

• Non-stop feeder with direct pallet loading
• Motorized front lays
• One (1) O.S. (operator side) pull guide and one OOS (opposite operator side) pull guide
• One (1) cutting chase (quick-locking) and one (1) regular open cutting chase
• One (1) cutting plate
• One (1) lower supporting plate with micrometre adjustment
• Thin plate system
• Double action stripping station
• One (1) set of upper stripping equipment including frame, crossbars, pin holders and pins
• One (1) set of lower stripping equipment including frame, crossbars, pin holders and pins
• One (1) upper stripping frame with quick locking
• One (1) central stripping frame
• Front trim removal device

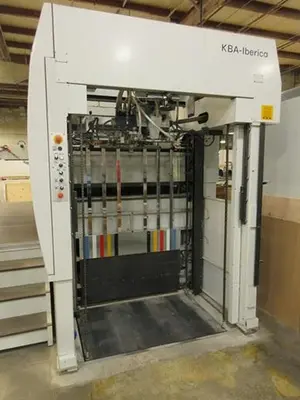

• Non-stop delivery

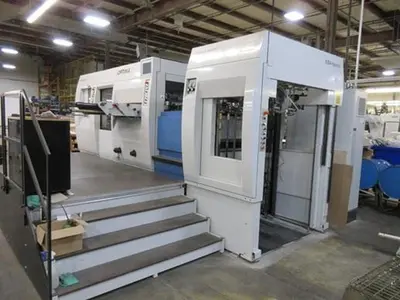

• Operator platform
