USED 2020 AESUS PACKAGING SYSTEMS ECO-STARCAP

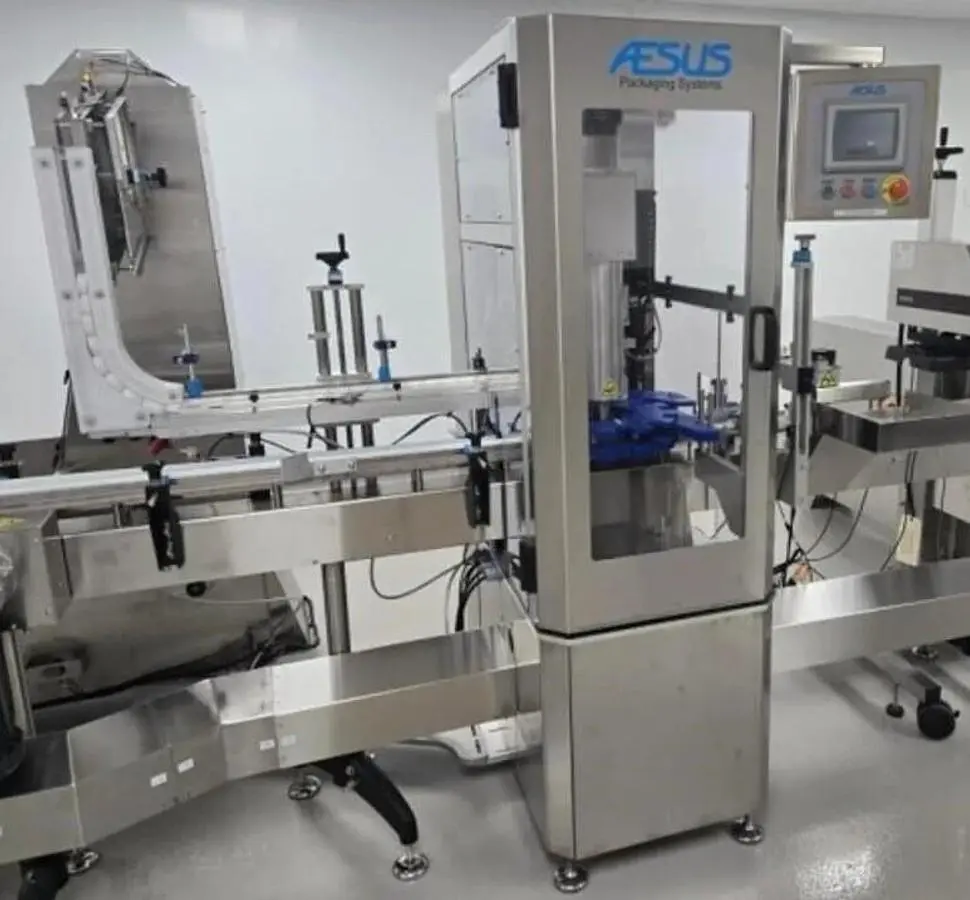

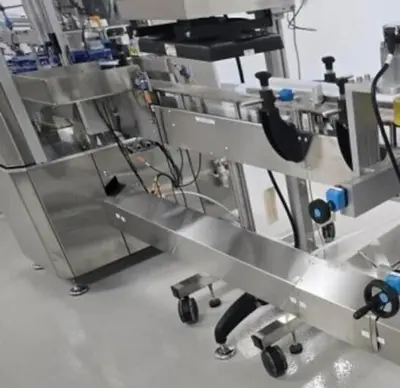

1 Used Aesus Automatic Stainless Steel Push Through (Chuck) 2 Station Capper, Model ECO-STARCAP. Serial #: 709611220. Machine was manufactured in 2020 and was last used in a large pharmaceutical facility. Is constructed in Stainless Steel and comes with 2 chuck cappers, 1 for pre-spin, the second for torque. OEM Specifications: Cap diameter: 5/8” to 5”. Bottle diameter: 1” to 8”. Bottle height: 2” to 15”. Cap height: ¼” to 1-1/4”. Speeds: up to 80 bottles per minute.  Comes with 14’ long x 4” wide motorized conveyor, adjustable guide rails.
Features:

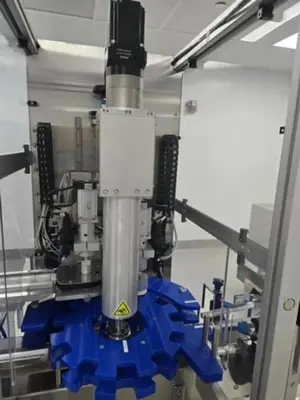

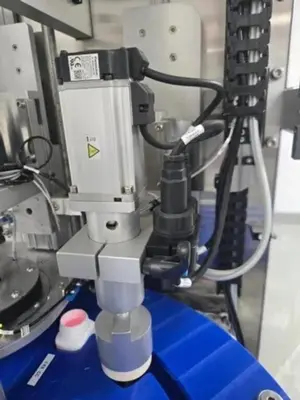

·         Servo motor-controlled push through cap engagement station and final torquing station.

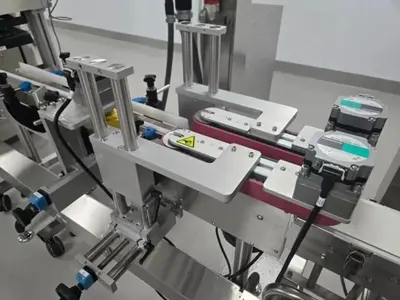

·         Fast feeding cap conveyor, reducing minimum accumulated cap to operate.
·         Safety interlocked lexan guarding.
·         Motorized height adjustment.
·         Color Touchscreen and PLC with recipe management.
·         Pneumatic indexing system with clamping/torquing action.
·         Servo driven bottle star wheel indexing system.
·         Pneumatic actuators for capping and torquing up/down.
·         Product & Backup sensor accumulation/output signal to stop indexing.

NOTE: Does not come with the Cap Sorting Elevator.

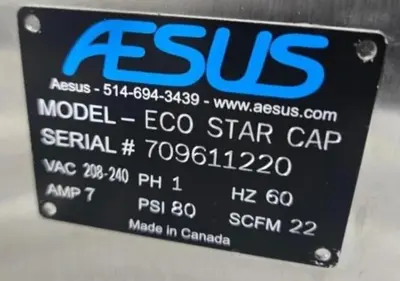

Electrics:: 1/60/208-230 volts, 7 amps
Air:: 80 psi, 22 scfm
