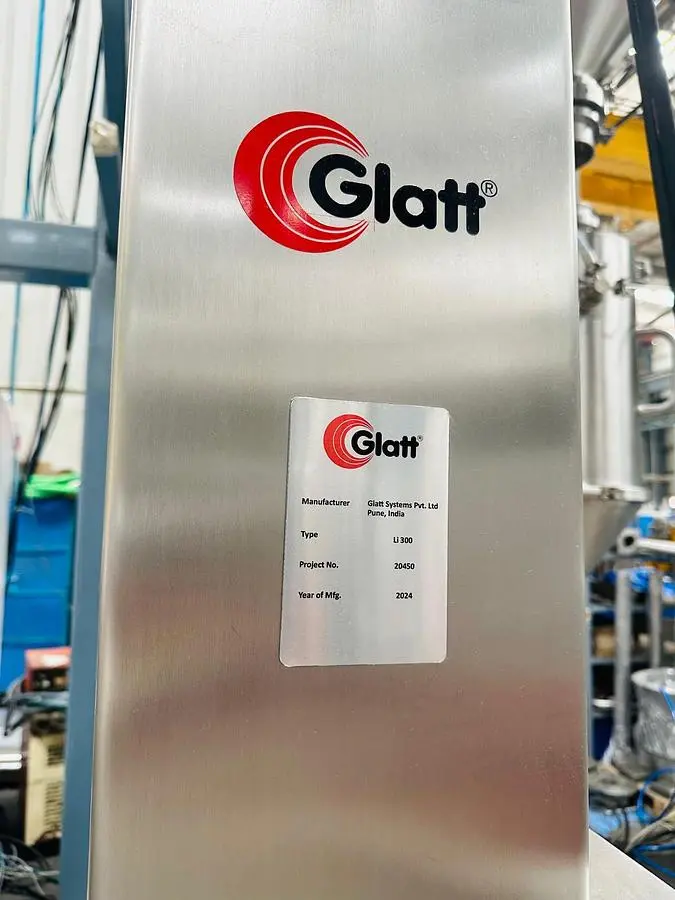

NEW 2024 GLATT CMI 400 POWDER TOTE BLENDING SYSTEM

1 UNUSED GLATT STAINLESS STEEL MODEL CMi 400 STAINLESS STEEL COLUMN POWDER TOTE BLENDING SYSTEM.

Includes the following equipment:

·         CMi Blending column with lifting carriage.
·         CSi 100 Litre (600 x 600 mm), container IBC 21
·         CSi 200 Litre (800 x 800 mm), container IBC 24
·         CSi 400 Litre (800 x 800 mm), container IBC 27
·         Li 300, Lifting device for tablet press charging 30
GENERAL TECHNICAL DATA:
·         Pay load (product plus container IBC): 420 kg
·         Product load: 260 kg
·         Static load: 1400 kg
·         Optimum filling ratio of containers: 60 – 80 %
·         Height of blending envelope: approx. 2472 mm
·         Blending speed: 4 to 20 rpm
·         Blending time: 1 to 99 min
·         Lifting/lowering – hydraulic
·         Electrics: 3/60/600 volts
CONTROLS
·         EX-design: NON-EX design
·          Compressed air consumption: max. 1 Nm³/h
·         Flow pressure: 6 bar(g)
·         Compressed air quality: free of oil, water and particles
·         residual humidity water < 5.5 g/m³
·         fine filtered < 0.1 μm
·         residual oil content < 1.0 mg/m³
MATERIALS/SURFACE

·         External metal parts: stainless steel AISI 304/1.4301
·         Surface: ground and passivated
·         Surface roughness: Ra ≤ 1.2 μm
·         Load bearing core of the column: painted carbon steel St 52-3 (ST37) and sheathed with 304 stainless steel AISI
·         External non-metal parts: pharmaceutical grade synthetic materials
·         Sheathing: 2B rolled finish
·         Welded parts: Surface: ground and passivated
·         Surface roughness: Ra ≤ 1.2 μm
·         Load bearing welds: Surface: smoothed, all other welds ground flush
·         Approximate dimensions and weights: CMi: Height: 4500 to 4950 mm.

NOTES:
EQUIPMENT STILL IN ORIGINAL OEM CRATING
DQ, IQ/OQ INCLUDED
MANUALS AND DRAWINGS
CSA CERTIFIED
LOCATED IN ONTARIO, CANADA
PRICE PAID IN 2024: USD $145,000.
