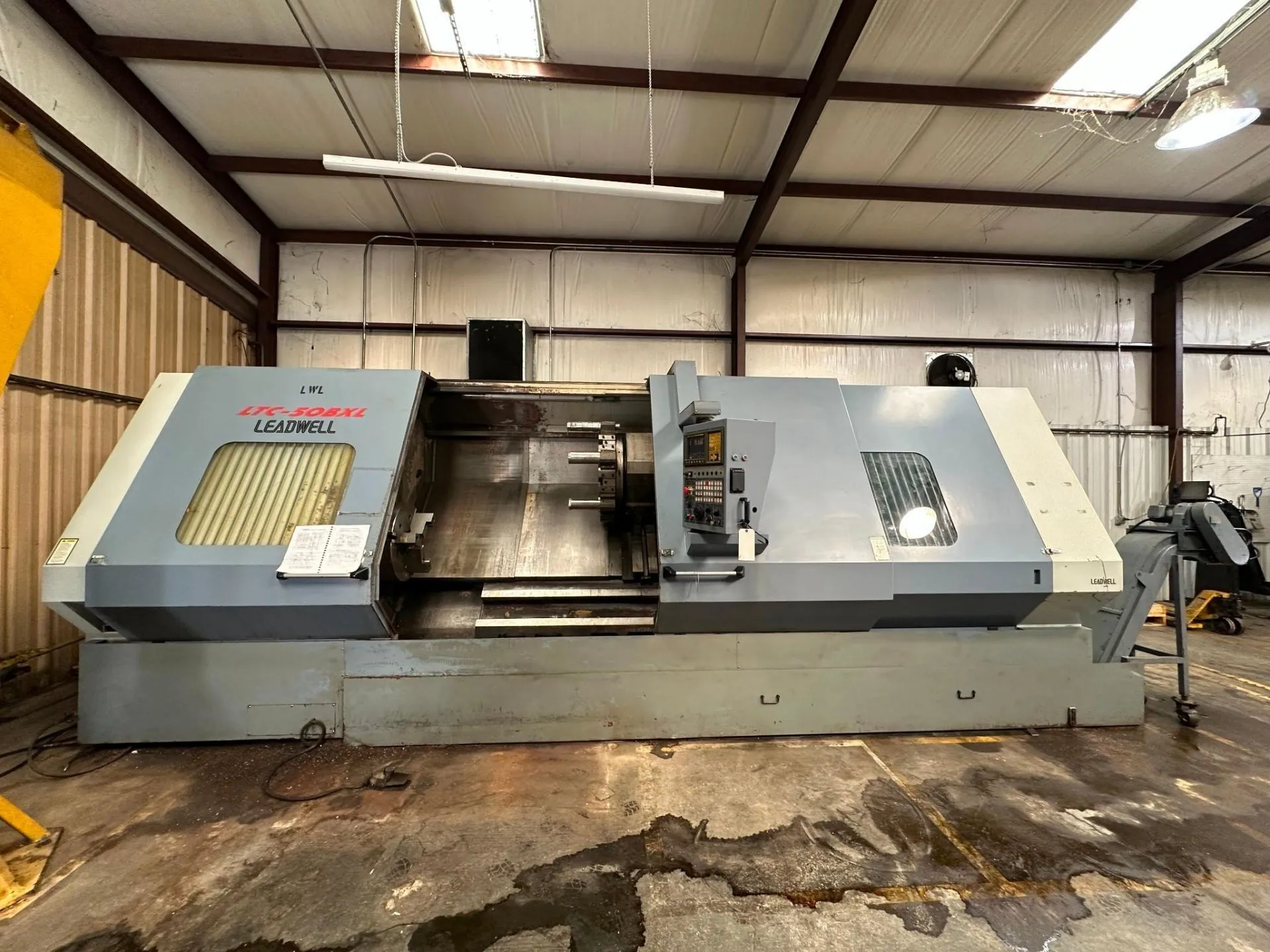

USED 2005 LEADWELL LTC-50BXL

126" Centers. 5.5" Bore

LEADWELL LTC-50BXL LONG BED CNC LATHE (2005)

CAPACITY
MAX. SWING: 850 MM (33.46 IN)
SWING OVER CROSS SLIDE: 800 MM (31.45 IN)
MAX. TURNING DIAMETER: 700 MM (27.55 IN)
MAX. TURNING LENGTH: 3035 MM (119.48 IN)
BAR CAPACITY: 117 MM (4.60 IN)
MAX. WORKPIECE WEIGHT (WITH TAILSTOCK): 1200 KG

TRAVEL
X AXIS: 425 MM (16.73 IN)
Z AXIS: 3100 MM (122.04 IN)

SPINDLE
SPINDLE SPEED RANGE: 15–1500 RPM
CHUCK SIZE: 21" KITAGAWA B-21 3 JAW
TYPE OF SPINDLE NOSE: A2-11
THRU SPINDLE HOLE DIAMETER: 140 MM (5.51 IN)

SPINDLE MOTOR:
FANUC: 37 / 45 KW (50 / 60 HP)
K.WHP: 37 / 45
MAX. SPINDLE TORQUE: 375.3 N·M

TURRET
NUMBER OF TOOL STATIONS: 12
MAX. INTERFERENCE-FREE DIAMETER: 330 MM (12.99 IN)
TURRET INDEXING TIME (1ST): 0.25 SEC
TURRET INDEXING TIME (ADJACENT): 1.46 SEC

FEEDRATE
RAPID TRAVERSE (X): 10000 MM/MIN (393.7 IN/MIN)
RAPID TRAVERSE (Z): 12000 MM/MIN (472.4 IN/MIN)

BED & SLIDE
OVERALL BED GUIDE WIDTH: 670 MM (26.37 IN)
CROSS SLIDE GUIDE WIDTH: 320 MM (12.6 IN)
ANGLE: 45°

TAILSTOCK
TAILSTOCK MOVEMENT TYPE: AUTO
TAILSTOCK TRAVEL: 2910MM
QUILL MOVEMENT TYPE: HYDRAULIC
QUILL DIA: Ø125 (4.92 IN)
QUILL STROKE: 155 MM (6.1 IN)
QUILL INSIDE TAPER: MT #6
QUILL THRUST (MAX): 1300 KG

COOLANT SYSTEM
PUMP MOTOR: 1.34 HP
PUMP PRESSURE: 3 KG/CM²
TANK CAPACITY: 162 L
PUMP CAPACITY: 180 / 270 L/MIN
MACHINE WEIGHT: LTC-50BXL: 17000 KG (37,478 LBS)
MACHINE DIMENSIONS (BXL): 6596 × 2575 × 2426 MM (260" × 101" × 96")

Fanuc 0iTB CNC
21" KITAGAWA B-21 3 JAW
CHIP CONVEYOR
