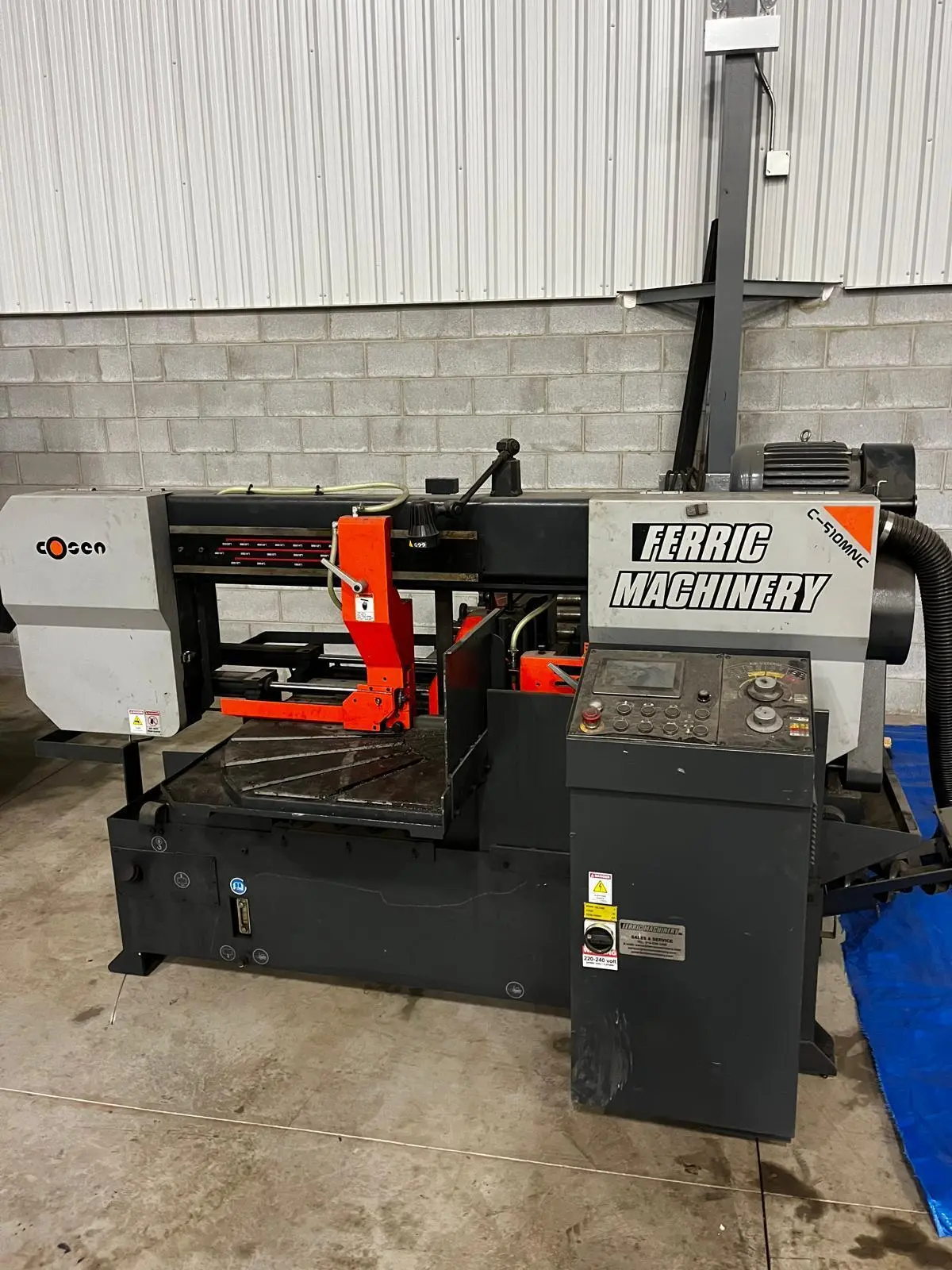

2022 COSEN C510MNC is a fully-automatic horizontal bandsaw, with a scissor style head. Smart NC-100 (SNC-100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen's C-510MNC production machine, making it the perfect saw for mass fabrication production settings.
| Rect-Cap (H) | 13" | 330.2 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 14" | 355.6 mm |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Dimensions | 100.8" x 107.8" x 75" | 100.8" x 107.8" x 75" |
| Weight | 4,707 lbs | 4,707 lbs |
Capacity Angle 0 +45 +60
Round Capacity 14" 13" 7.9"
Rectangular Capacity 13" x 20" 13" x 13.7" 12.5" x 9"
Blade Speed 50 - 328 FPM
Blade Size (LxWxT) 16' 1" x 1.25" x .042"
Blade Motor 5 HP
Coolant Motor 1/8 HP
Coolant Tank Capacity 16.1 gal
Hydraulic Tank Capacity 9.5 gal
Workbed Height 31.4"
Weight 4,707 lbs
Floorspace (LxWxH) 100.8" x 107.8" x 75"
