NEW 2023 OTINUS PBE 1204-DE58

OTINUS 44 Ton x 50" Electric Press Brake with Delem DA-58T Controller, new Installation & TrainingPrice includes
2-day training including machine installation
1st day up to 8 hours - machine installation and learning how to use the controller.
2nd day up to 8 hours - independent work on the machine under the supervision of our technician - possibility of
programming specific parts that are made by the Client.
Telephone consultation with a specialist from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months

Terms of cooperation
24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on-site.

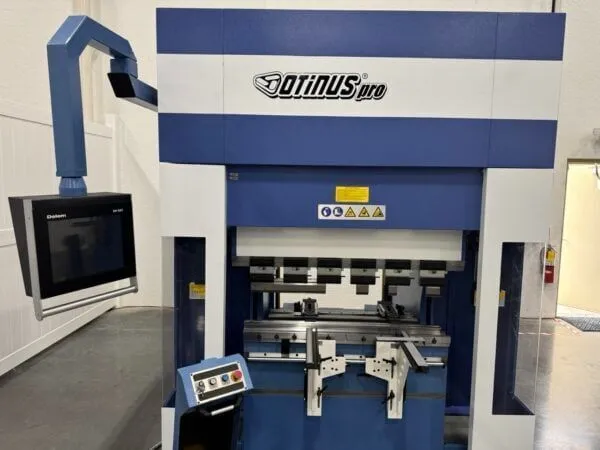

The Otinus PRO PBE-1204-DA58 is a 44-ton, 4-foot electric press brake featuring a Delem DA-58T CNC control, offering 400 kN (44 Ton) bending force, 8-inch ram stroke, 16-inch daylight, and a 43-inch distance between frames, with speeds up to 150 mm/s for maneuvering and 10-20 m/s for bending, ideal for precise sheet metal bending in a compact, all-electric design.
THE DIFFERENCE IS OUR OUR ASSETS

US BRANCH
Our United States facility is equipped with state-of-the-art technology for sheet metalworking and manufacturing. This branch specializes in providing advanced solutions tailored to the needs of the North American market. With an experienced team and a commitment to innovation, we deliver high-quality machines that meet the highest industry standards.

POLISH HEADQUARTERS
Located in Poland, our European branch combines cutting-edge engineering with decades of expertise in the metalworking industry. This facility focuses on serving the European market, offering customized solutions and efficient production processes. We pride ourselves on delivering excellent service and maintaining strong relationships with our customers across Europe.

Why choose our turn-key solutions?
By choosing our turn-key solutions, you can rest assured that your company is in good hands, and the implementation of new technologies is smooth and stress-free.
Save time and money: We eliminate the need for external providers, allowing for immediate production start-up.
Hassle-free implementation: With our complete installation and training, you can be confident that every aspect is under control.
Full technical support: We are available at every stage to provide technical and service support.

Specifications
Tonnage: 44 ton (400 kN)
Max working length: 48”
Throat depth: 11.5”
Max ram stroke: 8”
Daylight: 16”
Approach speed: 150 mm/s
Bending speed: 10-20 m/s
Return speed: 150 mm/s
Distance between sides frames: 4”
Backgauge retract distance: 29”
Nominal motor power: 2.68HP (2 kW)
Electrical Requirements: 460V Three Phase
Machine Dims: 84” x 60” x 108”
Approx Weight: 8,820 lbs

Delem DA-58T Controller
Features

2D graphical touch screen programming
15” high resolution color TFT
Bend sequence calculation
Crowning control
Servo and frequency inverter control
Advanced Y-axis control algorithms
USB, peripheral interfacing
Profile-58TL offline software
.

Delem DA-58T CNC Controller
